Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to Engine Cover Replacement in Interior Trim .
  2. Remove the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console .
  3. Remove the windshield defrost duct retaining screws at the heater case.
  4. Remove the windshield defrost duct retaining nuts at the cowl.
  5. Remove the windshield defrost duct (5) from the vehicle.

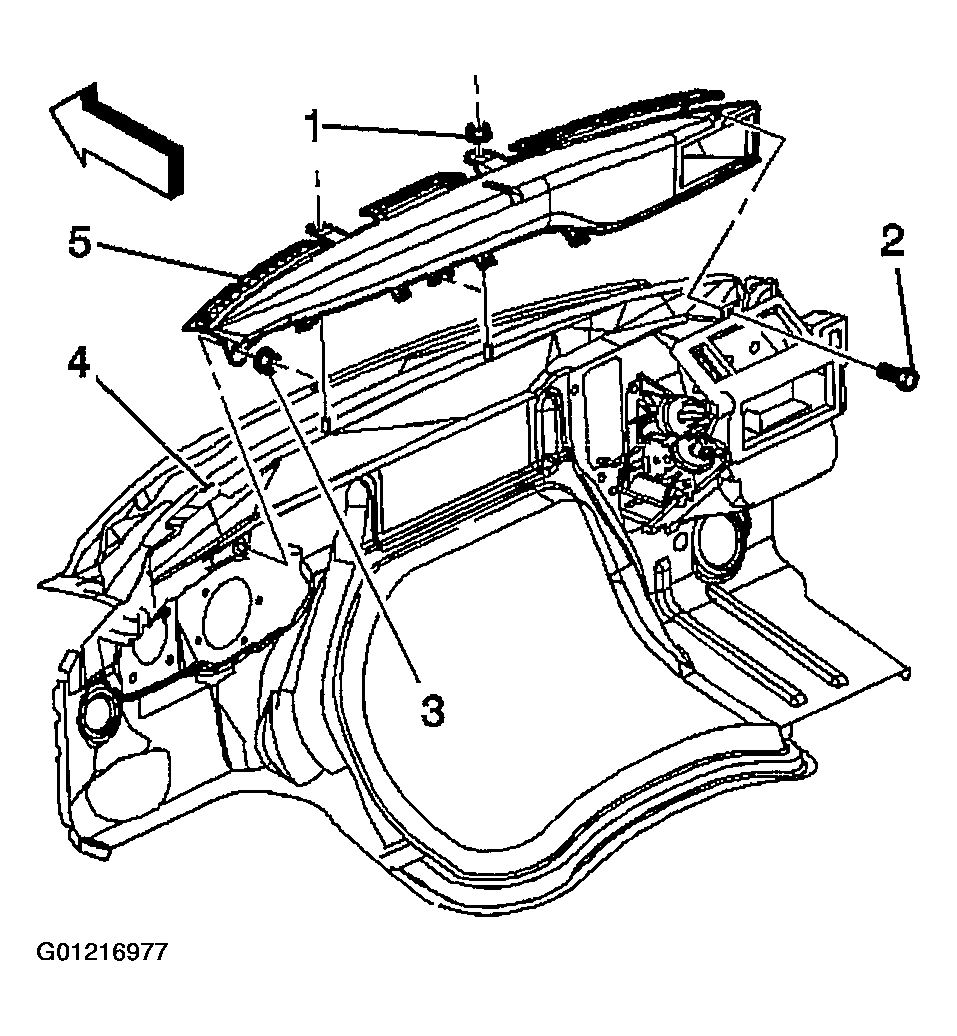

Fig 1: Removing Windshield Defrost Duct
G01216977Courtesy of GENERAL MOTORS CORP.
