Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.3L or to Air Cleaner Assembly Replacement in Engine Controls - 4.8L, 5.3L, and 6.0L .
  2. Remove the upper fan shroud. Refer to Fan Shroud Replacement in Engine Cooling .
  3. Drain the engine coolant. Refer to Draining and Filling Cooling System in Engine Cooling .
  4. Remove the upper heater inlet hose clamp and the upper heater outlet hose clamp from the inlet of the coolant bypass valve (4) using the J-38185  .
  5. Remove the upper heater inlet hose and the upper heater outlet hose from the outlet of the coolant bypass valve.
  6. Remove the lower heater inlet hose clamp and the lower heater outlet hose clamp from the outlet of the coolant bypass valve (4) using the J-38185  .
  7. Remove the lower heater inlet hose and the lower heater inlet hose from the inlet of the coolant bypass valve. Remove the vacuum hose from the coolant bypass valve.

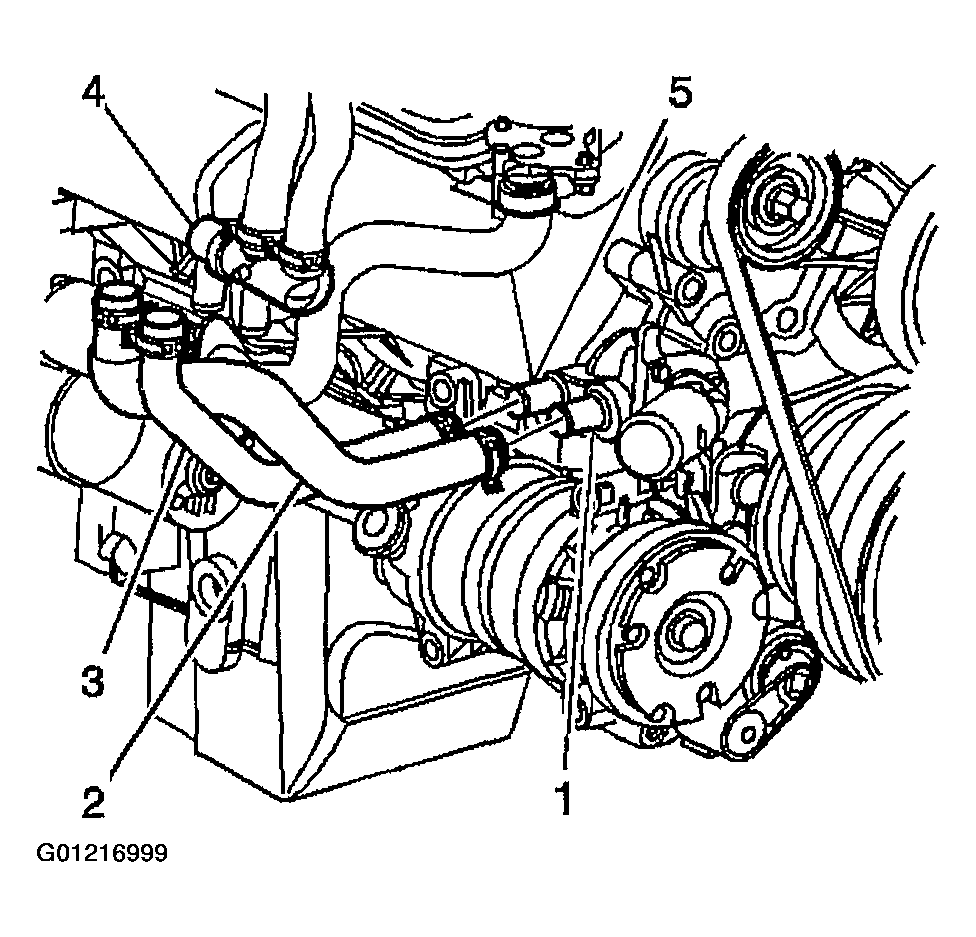

    Fig 1: Removing Coolant Bypass Valve
    G01216999Courtesy of GENERAL MOTORS CORP.
