Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.3L .
  2. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging .
  3. Disconnect the clutch coil electrical connector (1) from the compressor.

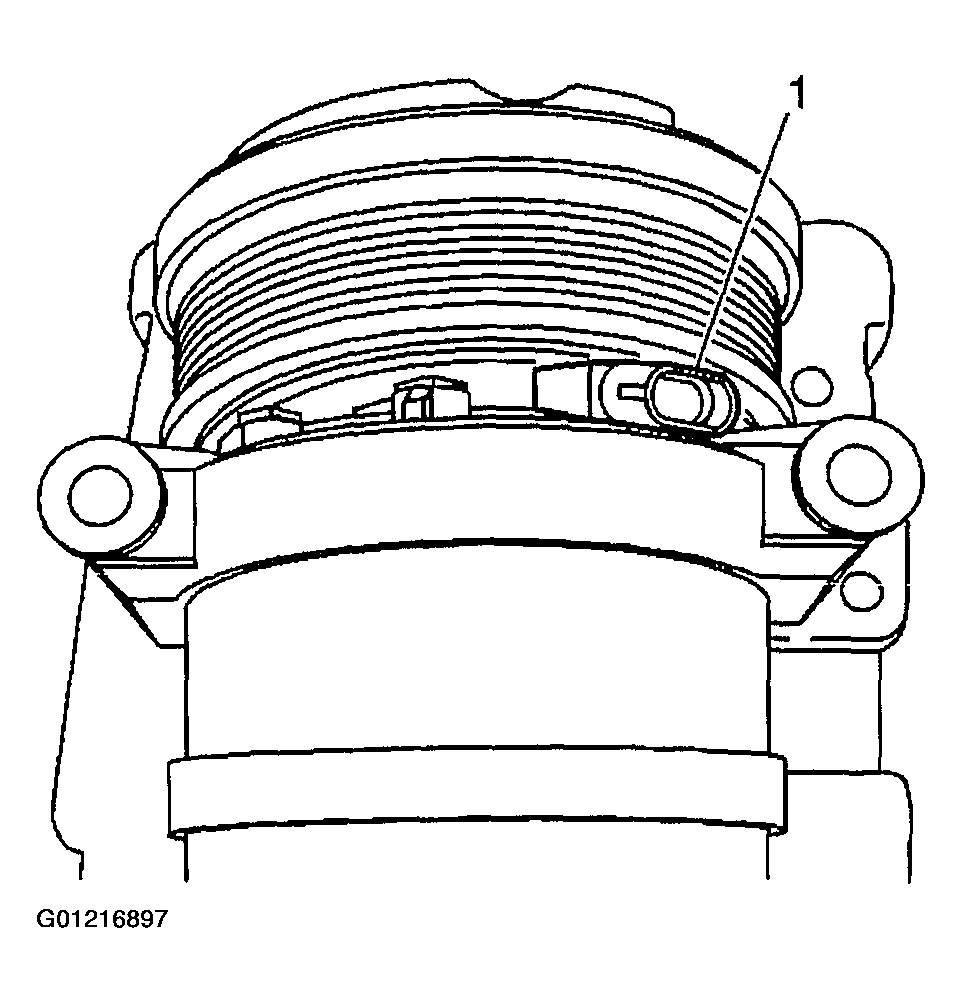

    Fig 1: Disconnecting Clutch Coil Electrical Connector
    G01216897Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the A/C high pressure switch electrical connector (2) from the compressor.
  5. Remove the drive belt. Refer to Drive Belt Replacement in ENGINE MECHANICAL - 4.3L .

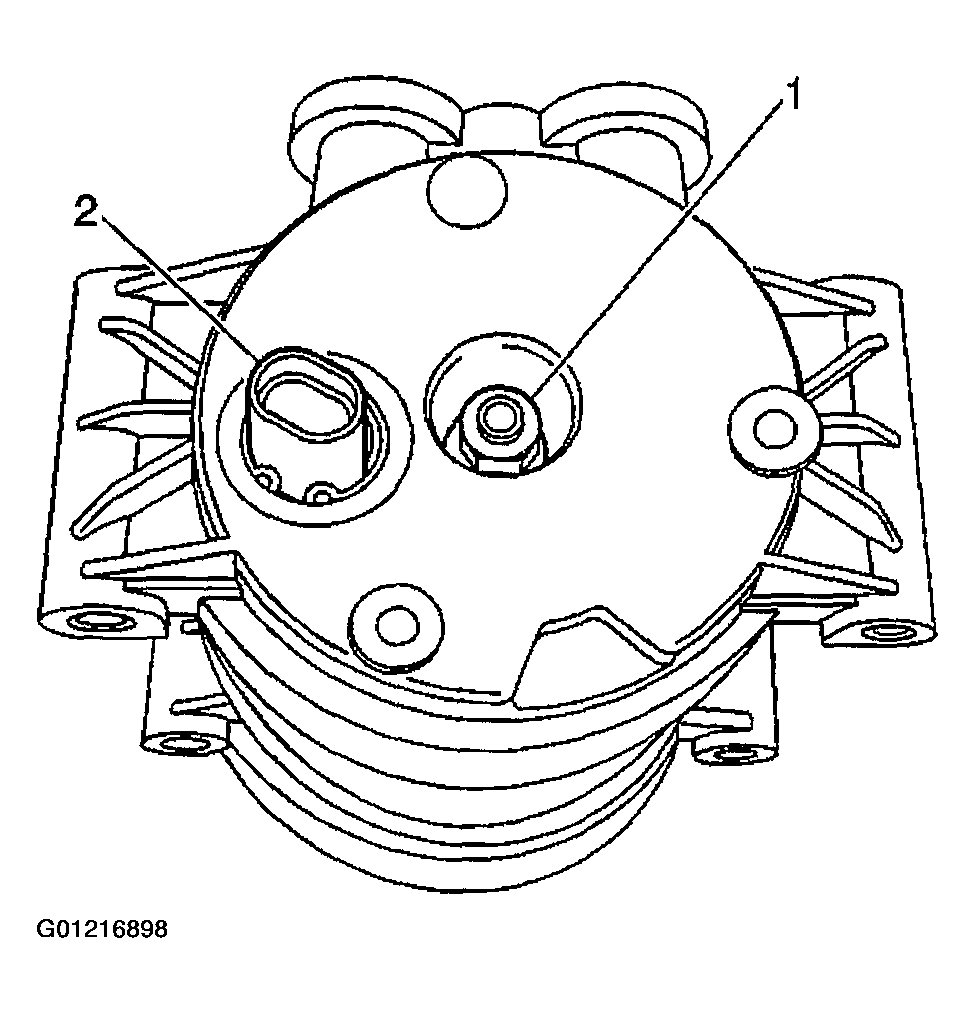

    Fig 2: Disconnecting A/C High Pressure Switch Electrical Connector
    G01216898Courtesy of GENERAL MOTORS CORP.
  6. Remove the compressor hose assembly.
  7. Remove the mounting bolts (2) from the compressor.
  8. Remove the compressor from the vehicle.
  9. If replacing the A/C compressor, drain and measure as much of the oil from the removed compressor as possible.
    1. Drain the oil from both the suction and discharge ports of the removed A/C compressor into a clean container.
    2. Remove the A/C compressor crankcase oil drain plug and drain the crankcase oil into the same container.
    3. Measure and record the amount of oil that was drained from the removed A/C compressor.

      This measurement will be used during installation of the replacement A/C compressor.

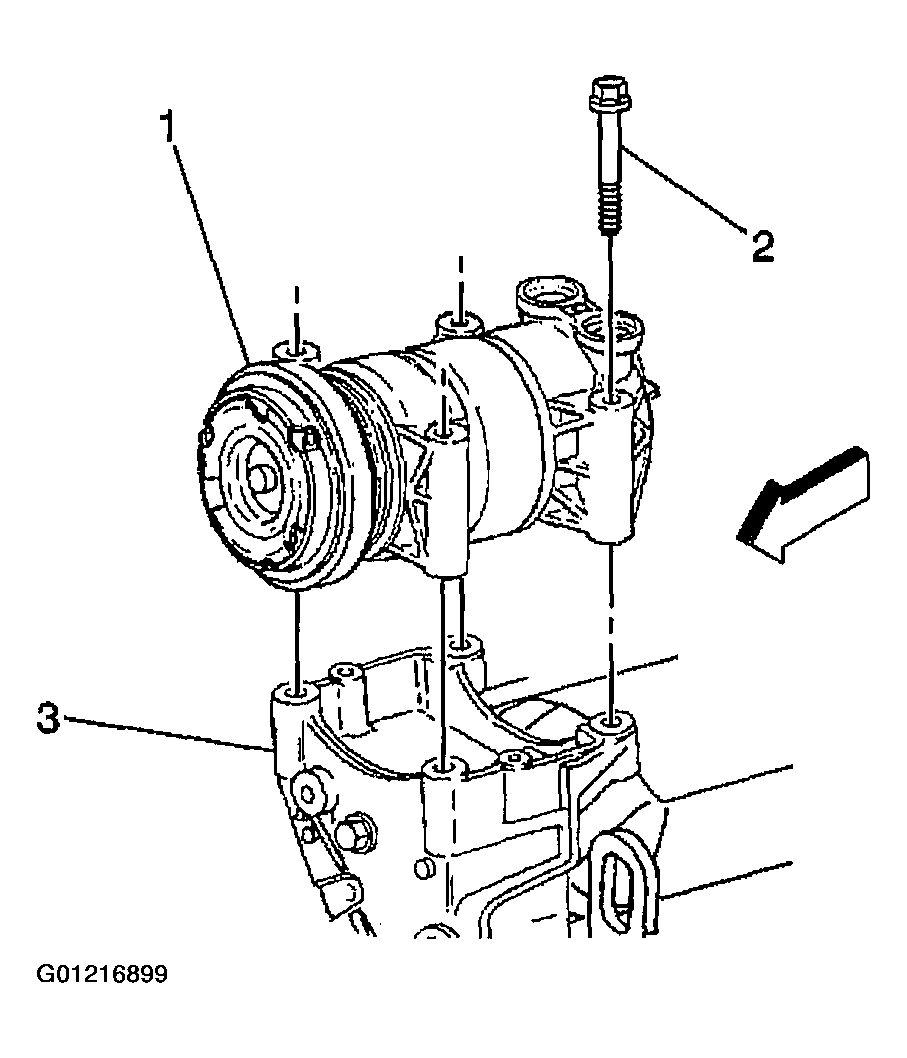

      Fig 3: Removing Compressor
      G01216899Courtesy of GENERAL MOTORS CORP.
