Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch plate retaining bolt (1).
  2. Remove the clutch plate assembly.
  3. Remove the clutch hub/bearing snap ring.
  4. Remove the clutch hub/bearing assembly.
  5. Remove the clutch coil connector bracket retaining screw.
  6. Remove the clutch coil snap ring.
  7. Remove the clutch coil assembly.

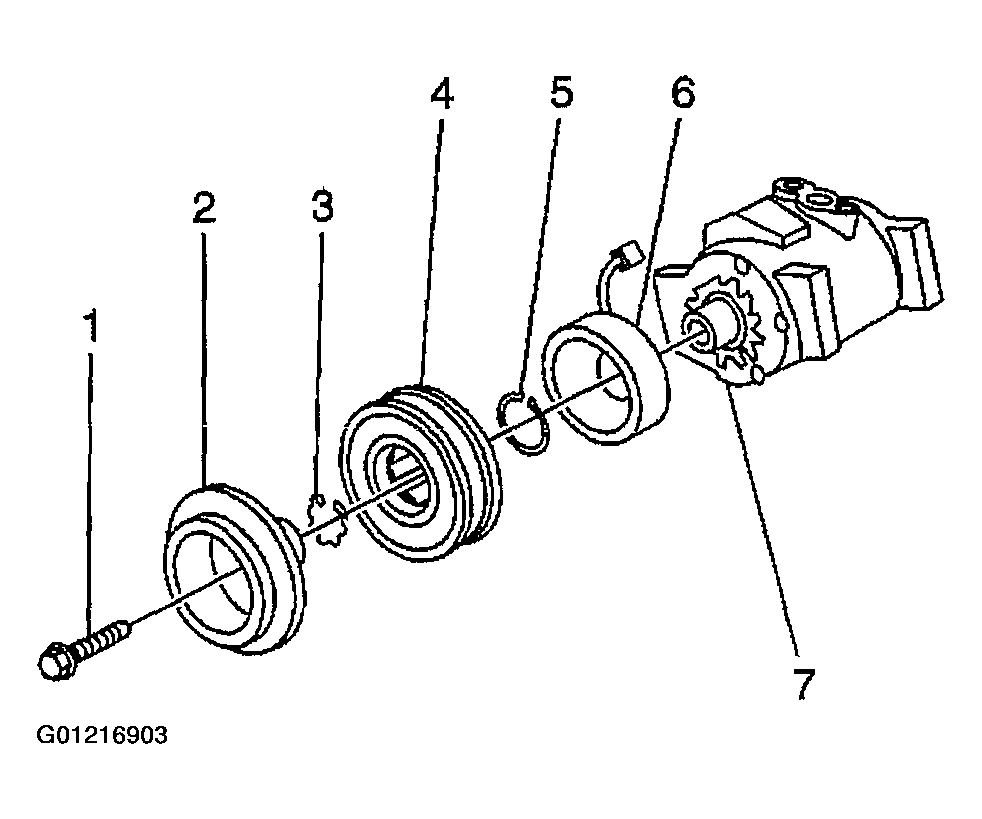

    Fig 1: Removing Clutch Plate Retaining Bolt
    G01216903Courtesy of GENERAL MOTORS CORP.
