Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important : The blower motor relay is an integral part of the blower motor resistor and cannot be serviced separately from the resistor.
- Disconnect the electrical connectors from the blower motor resistor assembly and the blower motor.
- Remove the blower motor resistor assembly retaining screws.

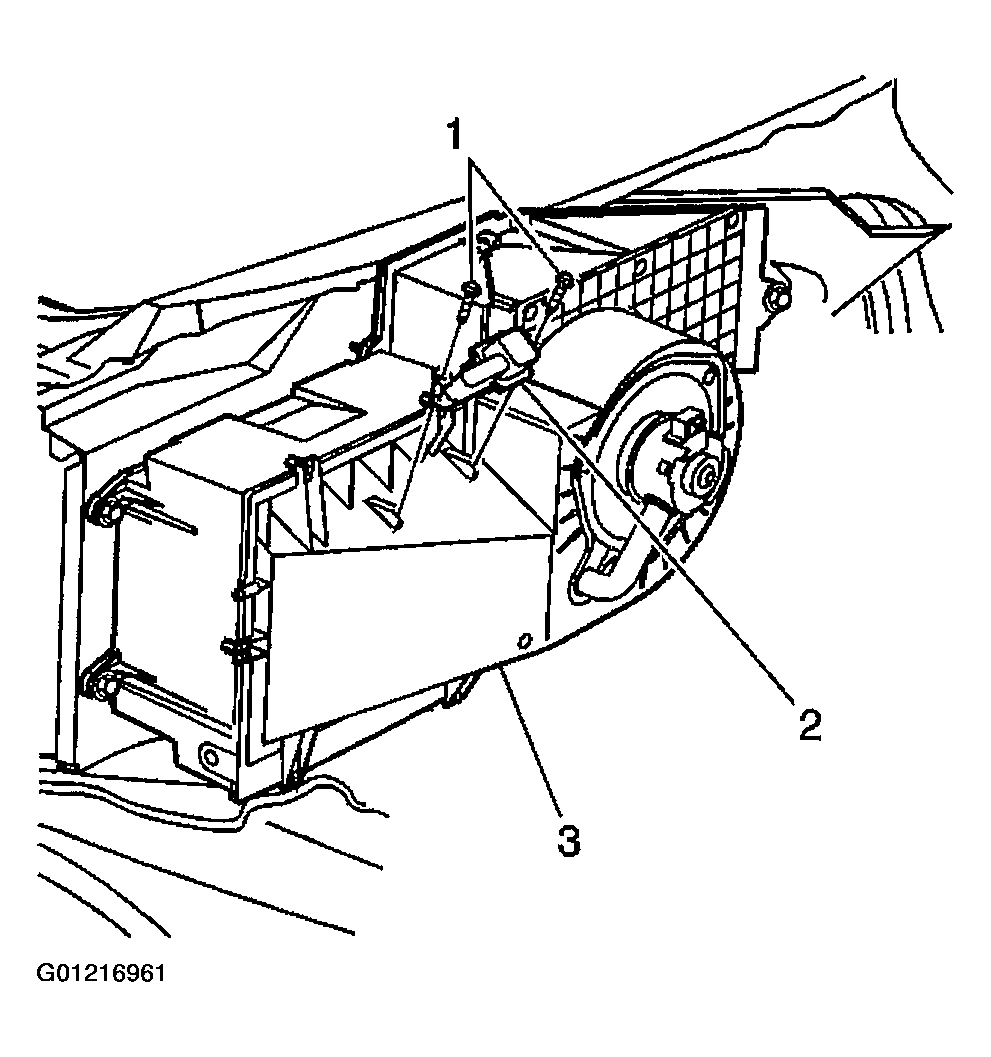

- Remove the blower motor resistor assembly (2) from the evaporator and blower module assembly (3).
