Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panels. Refer to Trim Panel Replacement - Left Body Side in Interior Trim .
  2. Disconnect the electrical connector from the blower motor resistor.
  3. Remove the retaining screws.
  4. Remove the blower motor resistor from the blower case.

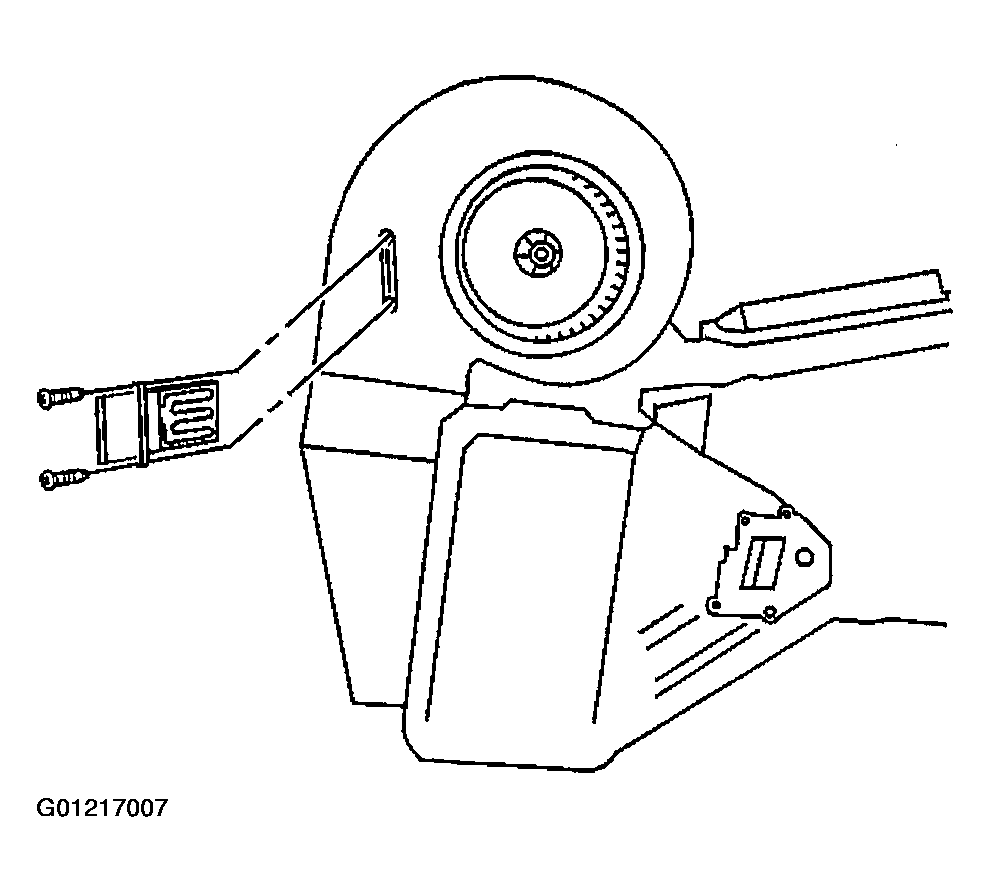

    Fig 1: Removing Blower Motor Resistor
    G01217007Courtesy of GENERAL MOTORS CORP.
