Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the blower motor electrical connector (2).
  2. Remove the blower motor cooling tube (3).
  3. Remove the blower motor retaining screws (1).
  4. Remove the blower motor.

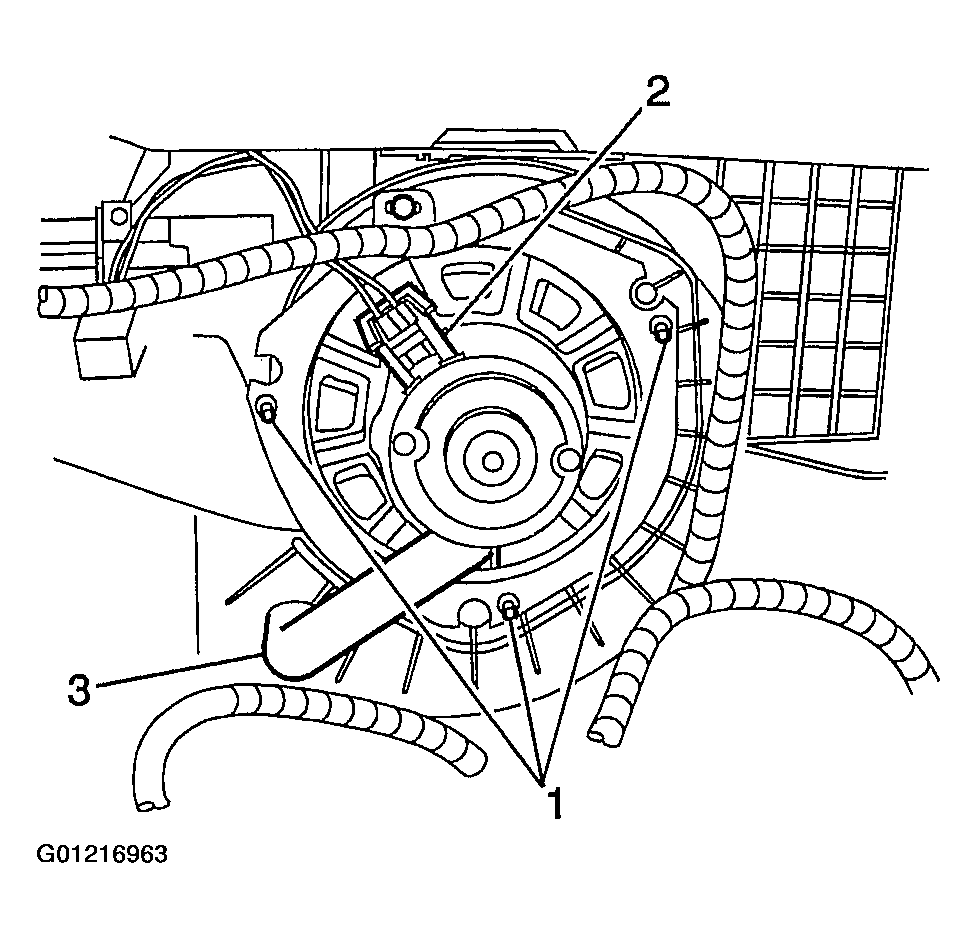

    Fig 1: Disconnecting Electrical Connector & Removing Blower Motor Cooling Tube & Retaining Screws
    G01216963Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining clip from the fan cage (2).
  6. Remove the fan cage (2) from the blower motor (3).

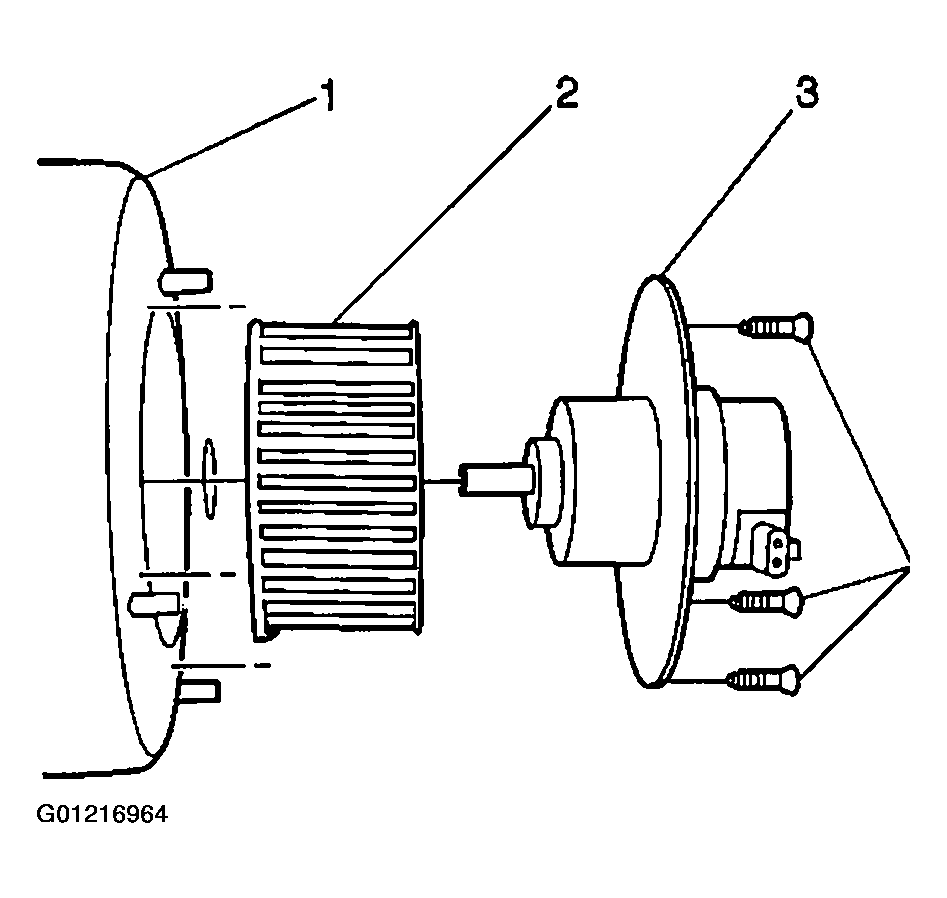

    Fig 2: Removing Fan Cage Retaining Clip & Fan Cage
    G01216964Courtesy of GENERAL MOTORS CORP.
