Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary HVAC module. Refer to HVAC Module Replacement - Auxiliary .
  2. Disconnect the electrical connectors from the auxiliary blower motor.
  3. Remove the screws (1) from the auxiliary blower motor.
  4. Remove the auxiliary blower motor (2).
  5. Remove the retaining clip from the fan cage.
  6. Remove the fan cage from the auxiliary blower motor.

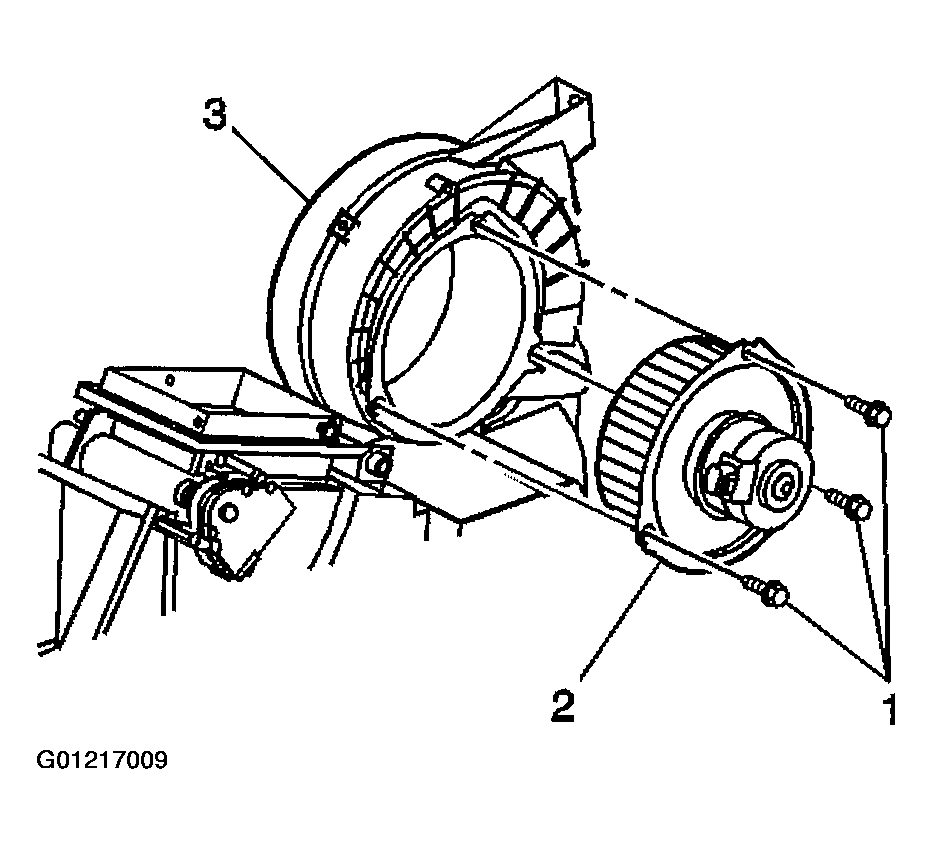

    Fig 1: Removing Auxiliary Blower Motor
    G01217009Courtesy of GENERAL MOTORS CORP.
