Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to Engine Cover Replacement in Interior Trim .
  2. Remove the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console .
  3. Remove the air distribution duct retaining screws (2).
  4. Remove the retaining screws at the instrument panel.
  5. Remove the air distribution duct from the instrument panel.

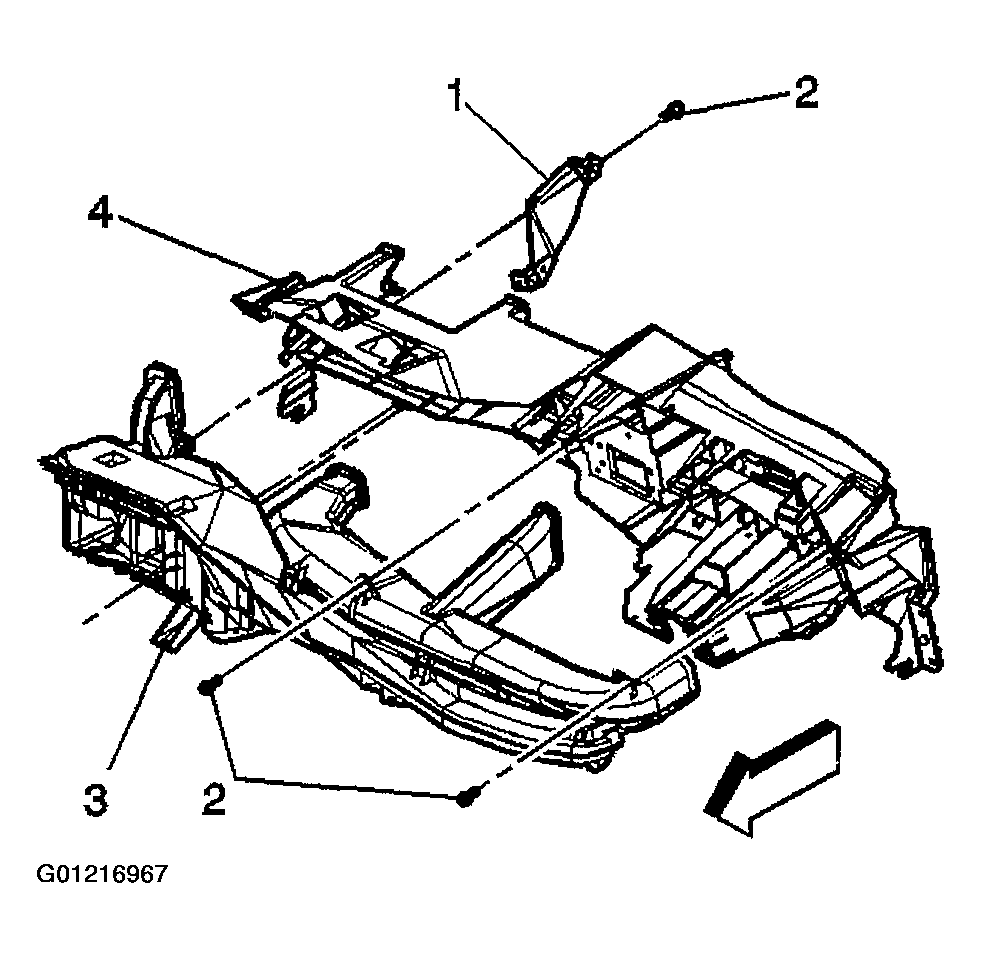

    Fig 1: Removing Air Distribution Duct
    G01216967Courtesy of GENERAL MOTORS CORP.
