Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panel. Refer to Trim Panel Replacement - Left Body Side in Interior Trim .
  2. Remove the left rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner in Interior Trim .
  3. Remove the retainers from the air outlet duct.
  4. Partially lower the rear headliner in order to remove the upper air outlet duct from the vent duct.
  5. Disconnect the air outlet duct from the auxiliary heater.
  6. Remove the air outlet duct from the vehicle.

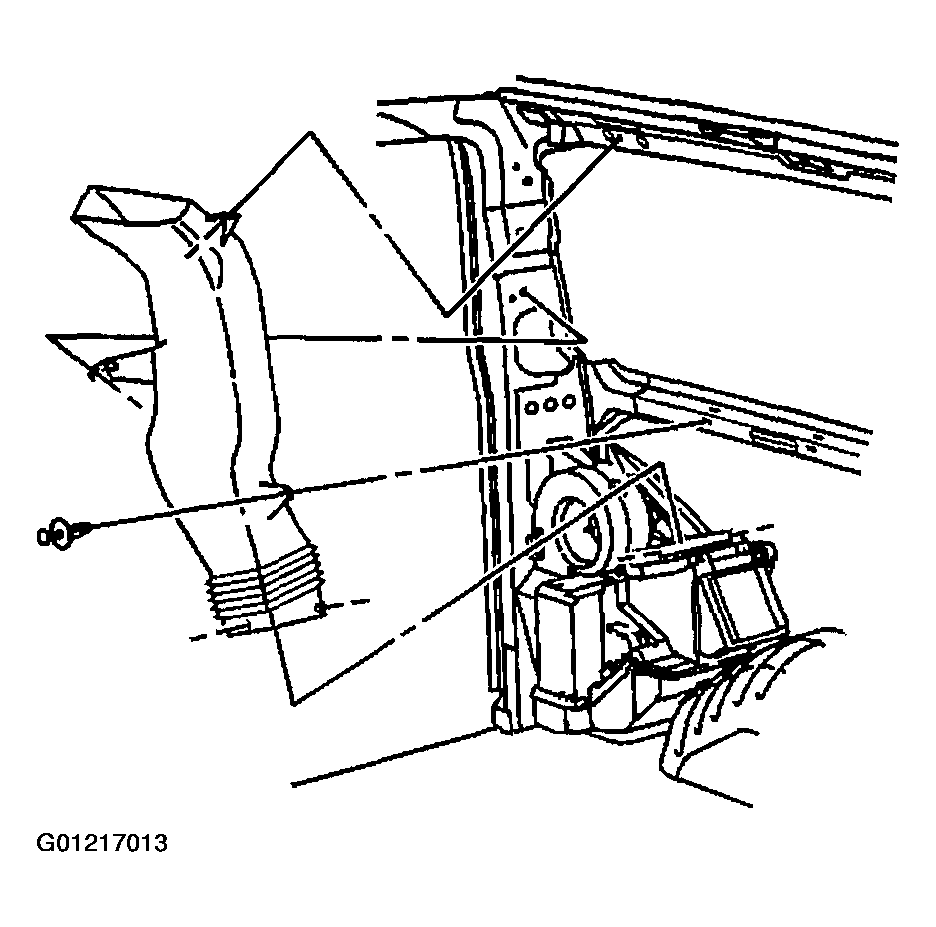

    Fig 1: Removing Upper Auxiliary Air Outlet Duct
    G01217013Courtesy of GENERAL MOTORS CORP.
