Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panel. Refer to Trim Panel Replacement - Left Body Side in Interior Trim .
  2. Remove the retainers from the air outlet duct.
  3. Disconnect the air outlet duct from the floor vent.
  4. Remove the air outlet duct from the vehicle.

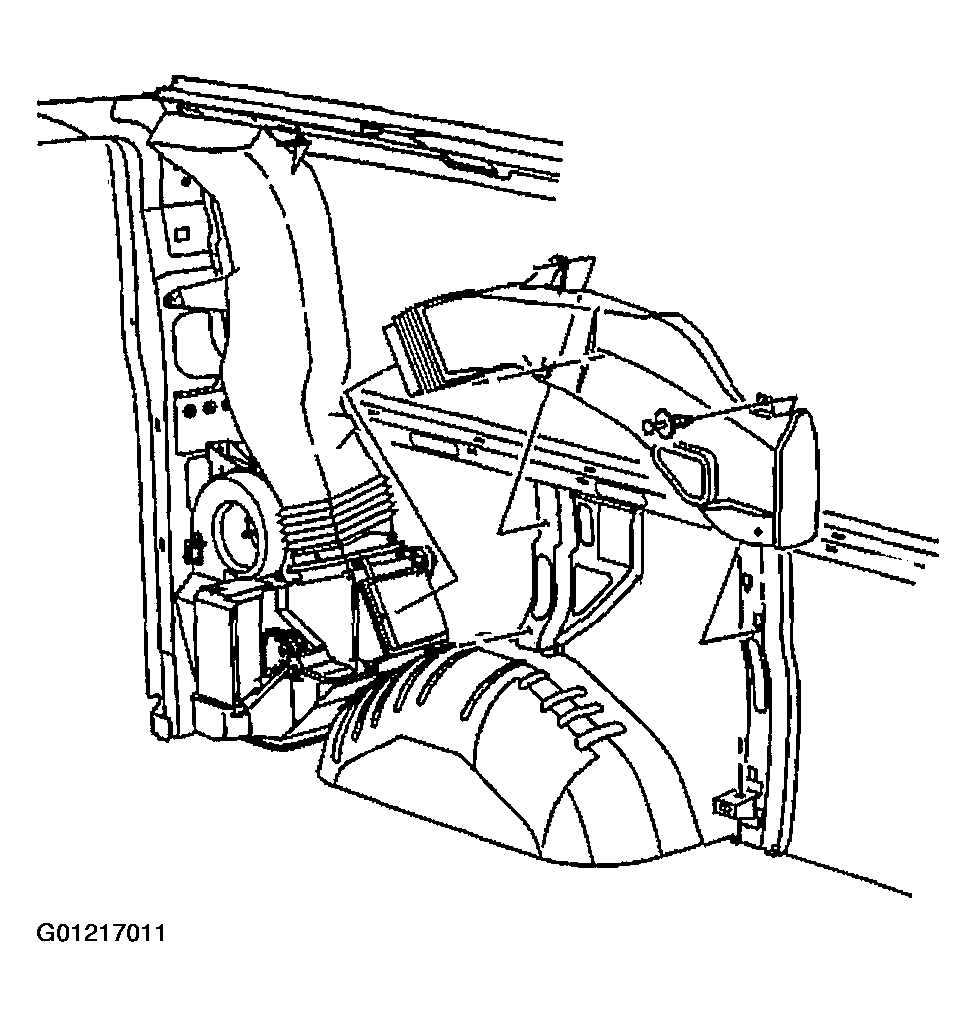

    Fig 1: Removing Lower Auxiliary Air Outlet Duct
    G01217011Courtesy of GENERAL MOTORS CORP.
