Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the low pressure switch electrical connector (2).
  2. Remove the low pressure switch (1) from the accumulator.
  3. Remove the O-ring seal.

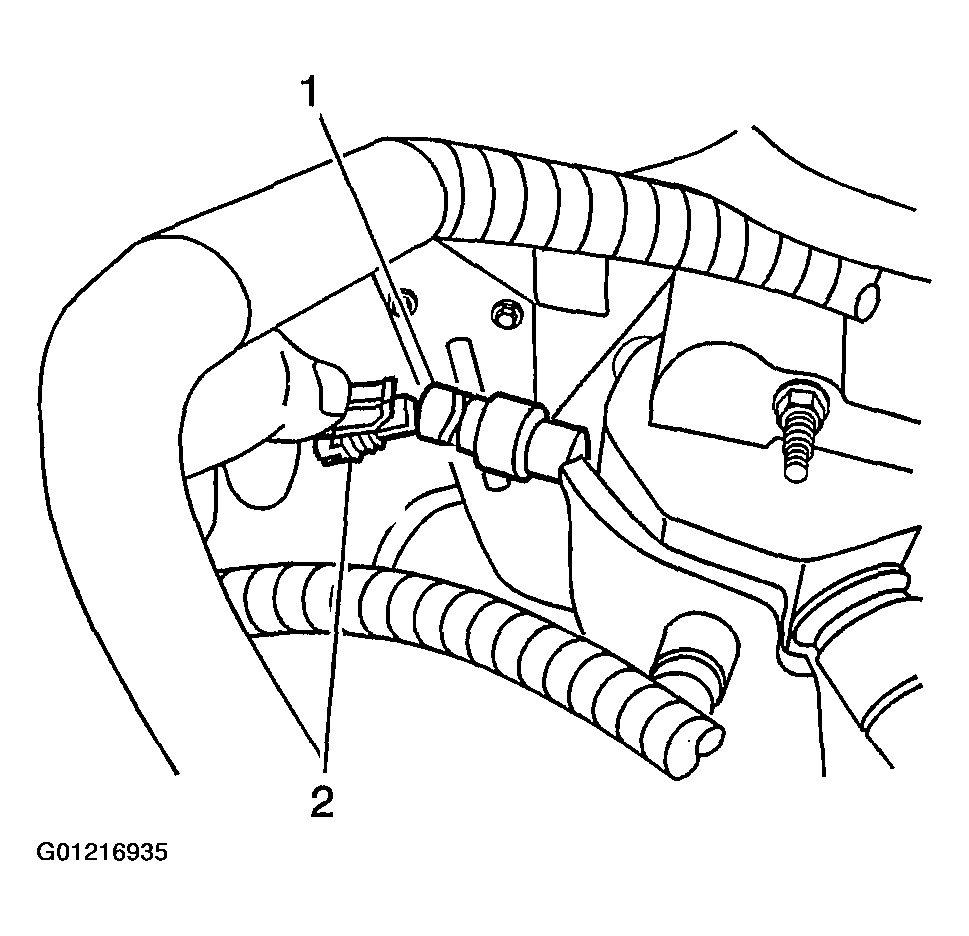

    Fig 1: Removing Low Pressure Switch
    G01216935Courtesy of GENERAL MOTORS CORP.
