Defrosting Insufficient

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Avoid contact with moving parts and hot surfaces while working around a running engine in order to prevent physical injury.

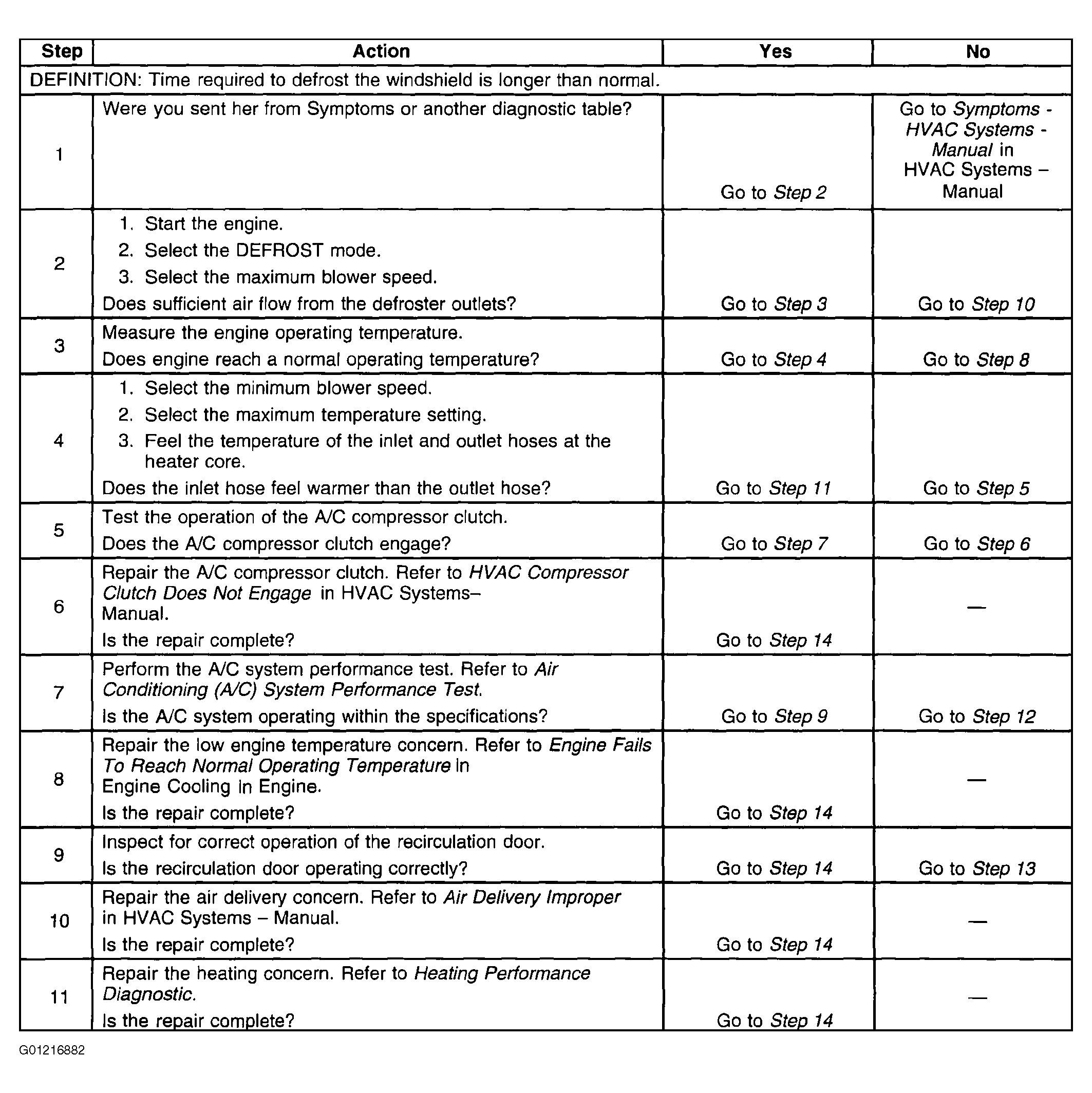

Fig 1: Defrosting Insufficient (1 Of 2)
G01216882Courtesy of GENERAL MOTORS CORP.

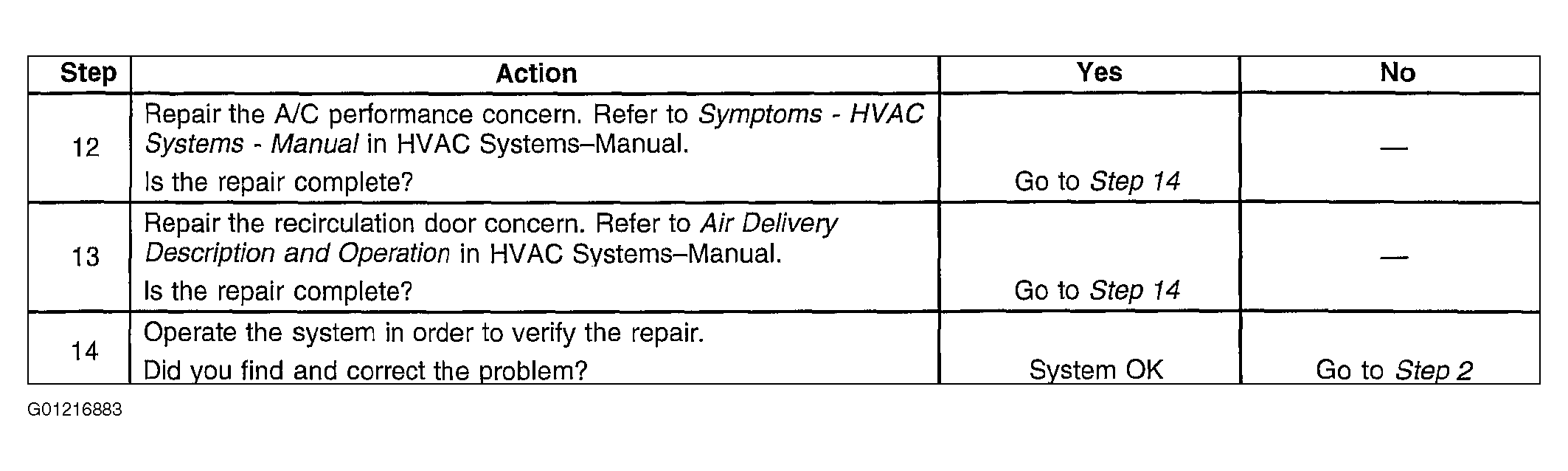

Fig 2: Defrosting Insufficient (2 Of 2)
G01216883Courtesy of GENERAL MOTORS CORP.
