Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. This step determines if the A/C system has at least the minimum refrigerant charge required to operate the system without damage.
  2. This step measures the performance of the A/C system.
  3. This step is to allow for vehicle variations as well as high ambient temperatures.

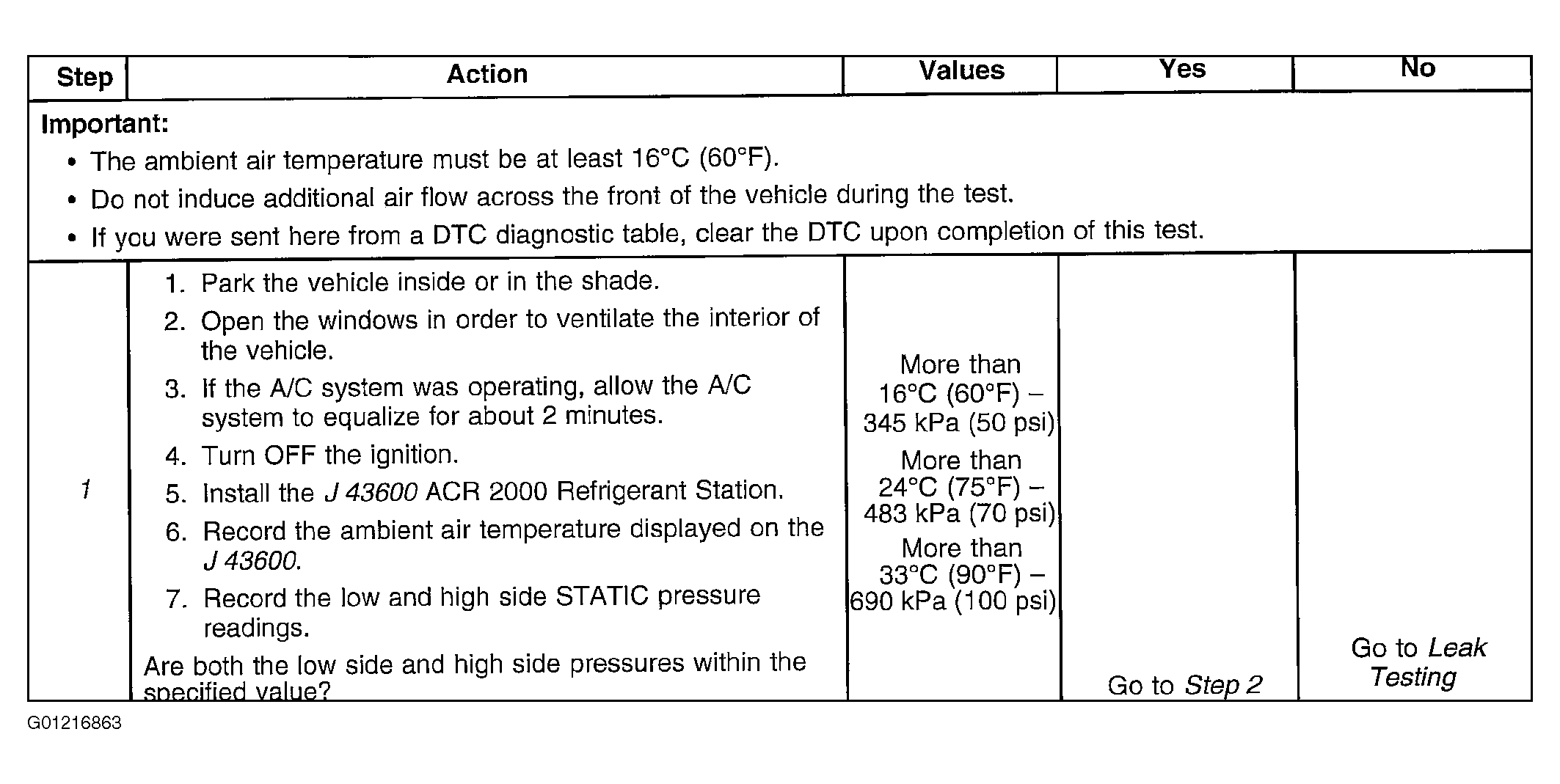

Fig 1: Air Conditioning (A/C) System Performance Test (1 Of 3)
G01216863Courtesy of GENERAL MOTORS CORP.

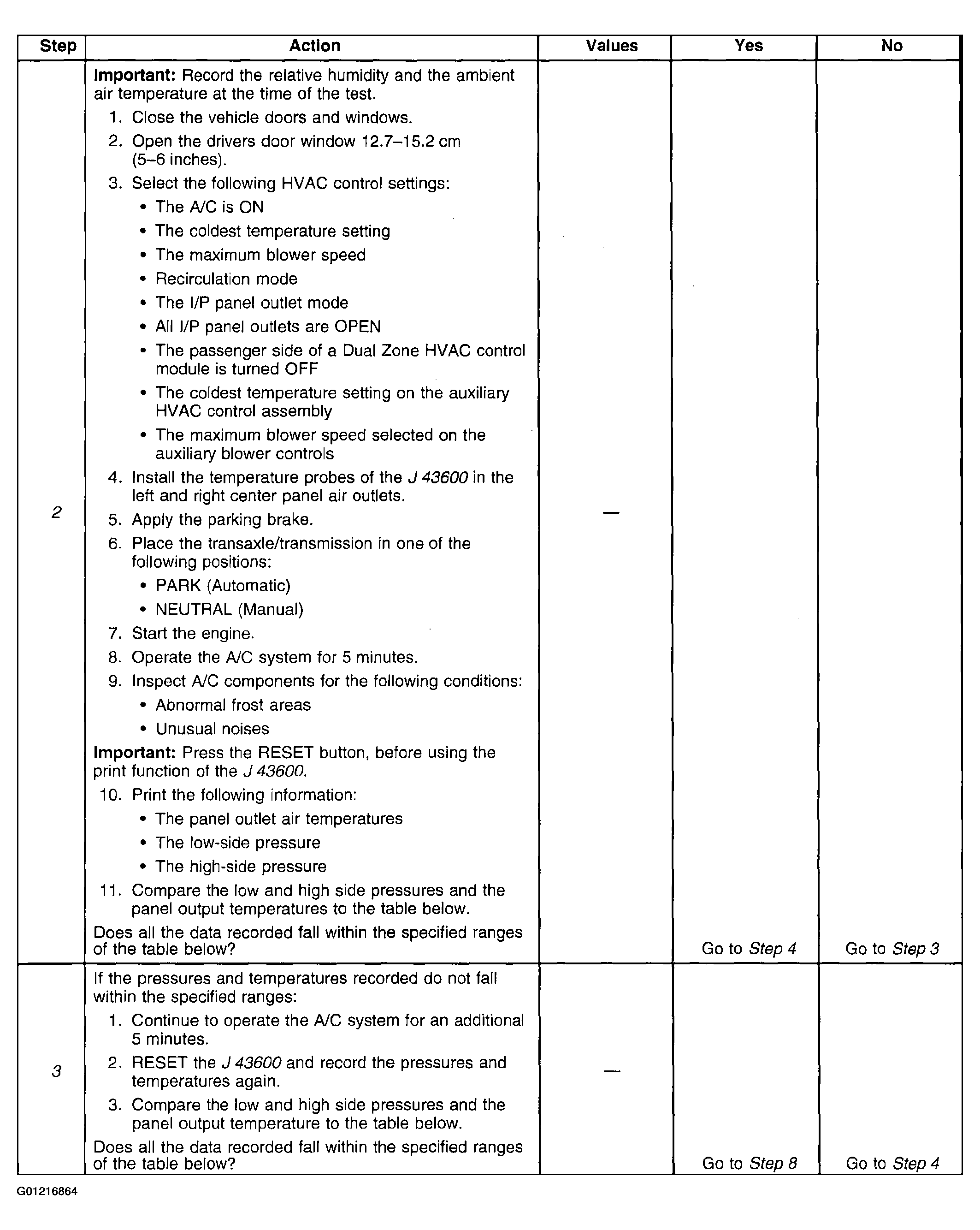

Fig 2: Air Conditioning (A/C) System Performance Test (2 Of 3)
G01216864Courtesy of GENERAL MOTORS CORP.

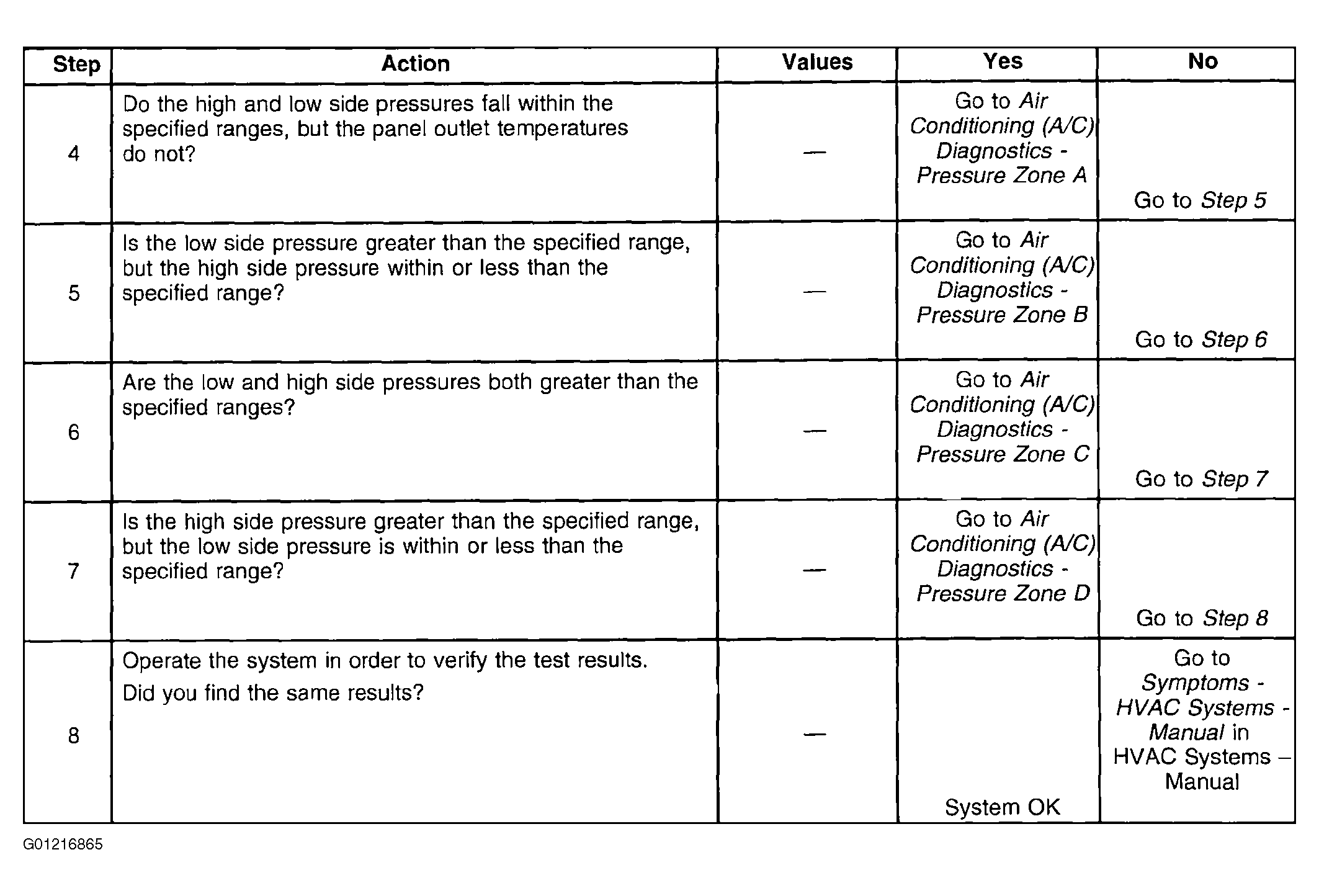

Fig 3: Air Conditioning (A/C) System Performance Test (3 Of 3)
G01216865Courtesy of GENERAL MOTORS CORP.

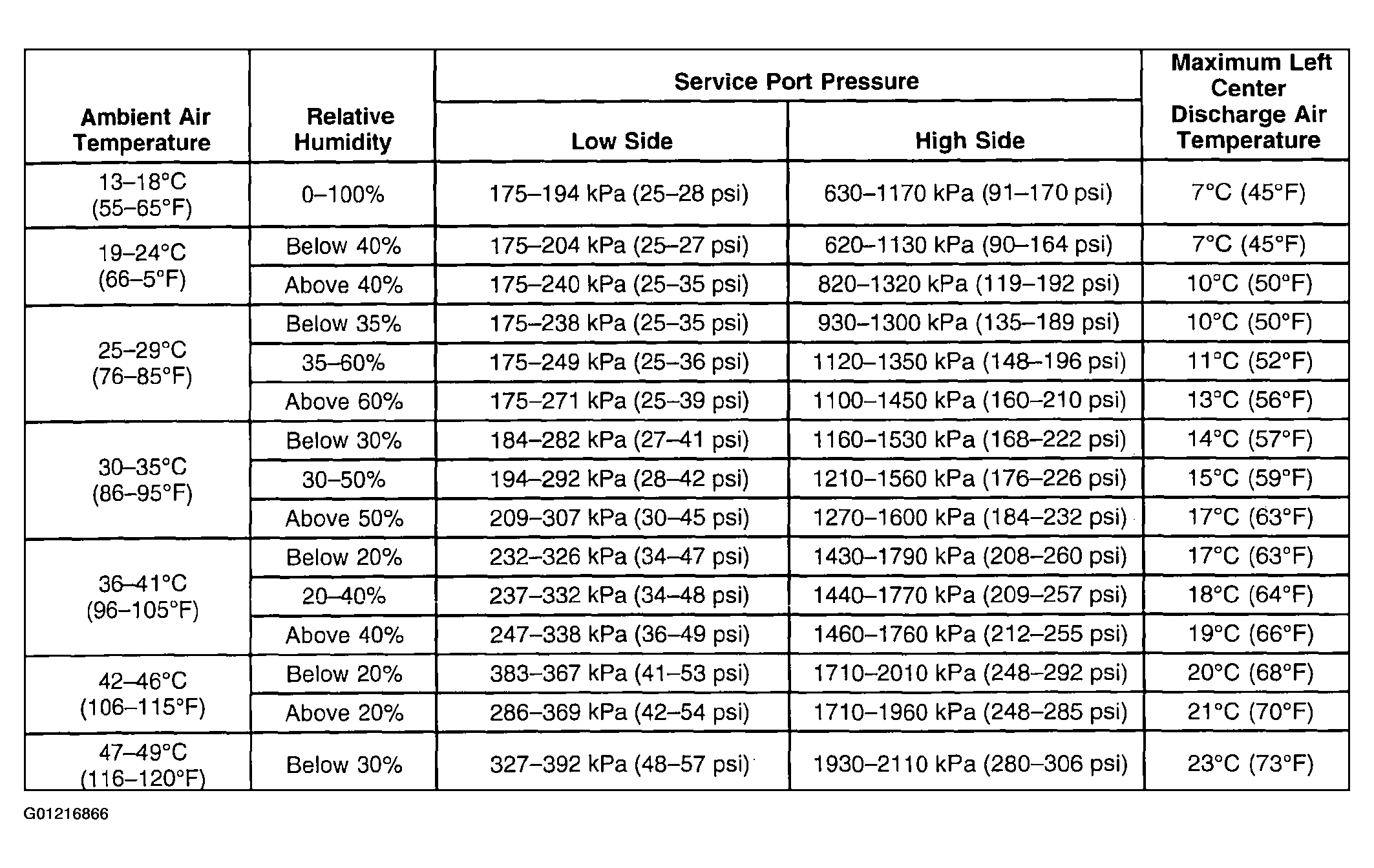

Fig 4: A/C Performance Table - Front Only
G01216866Courtesy of GENERAL MOTORS CORP.

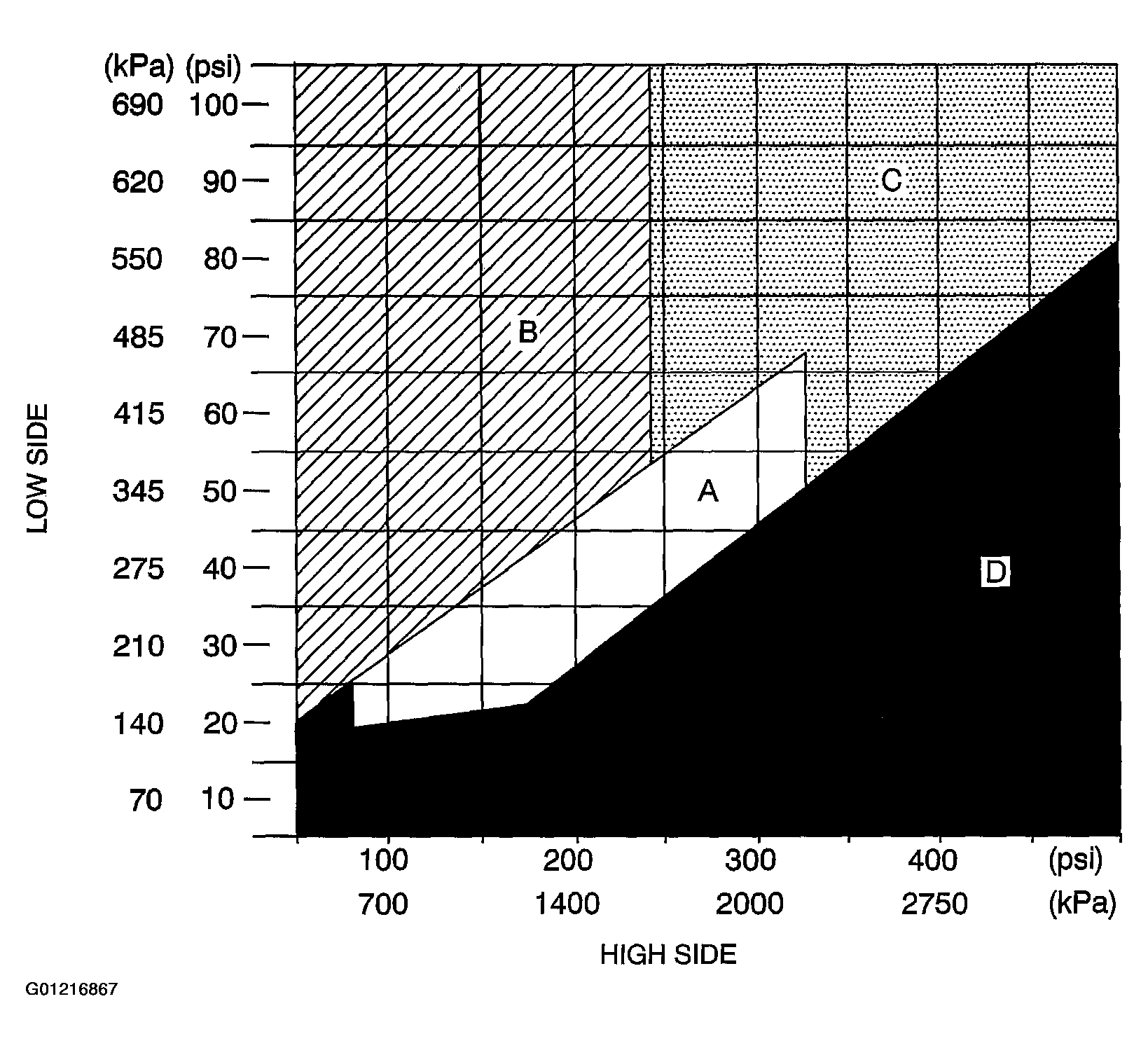

Fig 5: A/C System Pressure - Zone Classification With Front A/C
G01216867Courtesy of GENERAL MOTORS CORP.

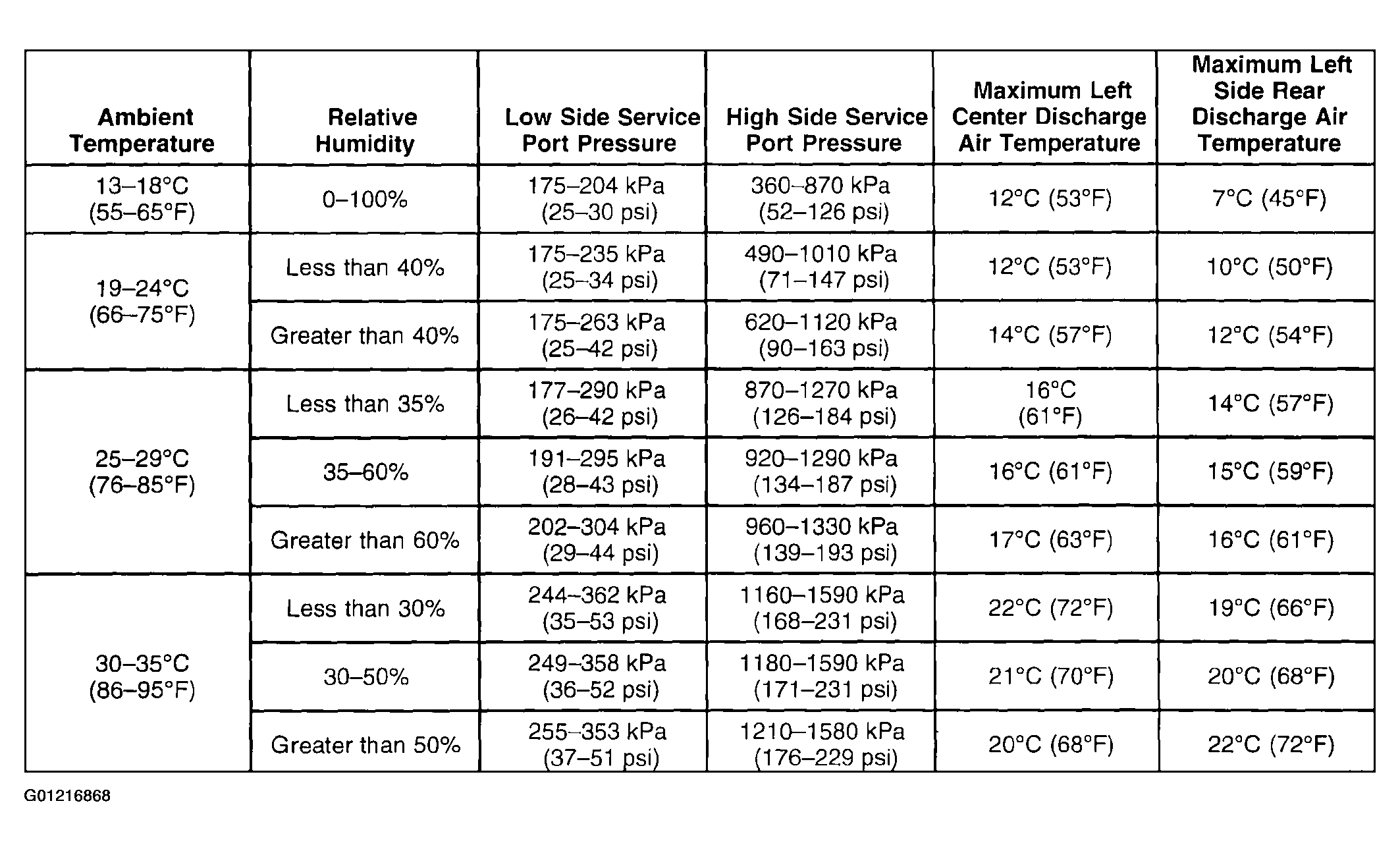

Fig 6: A/C Performance Table - With Rear A/C (1 Of 2)
G01216868Courtesy of GENERAL MOTORS CORP.

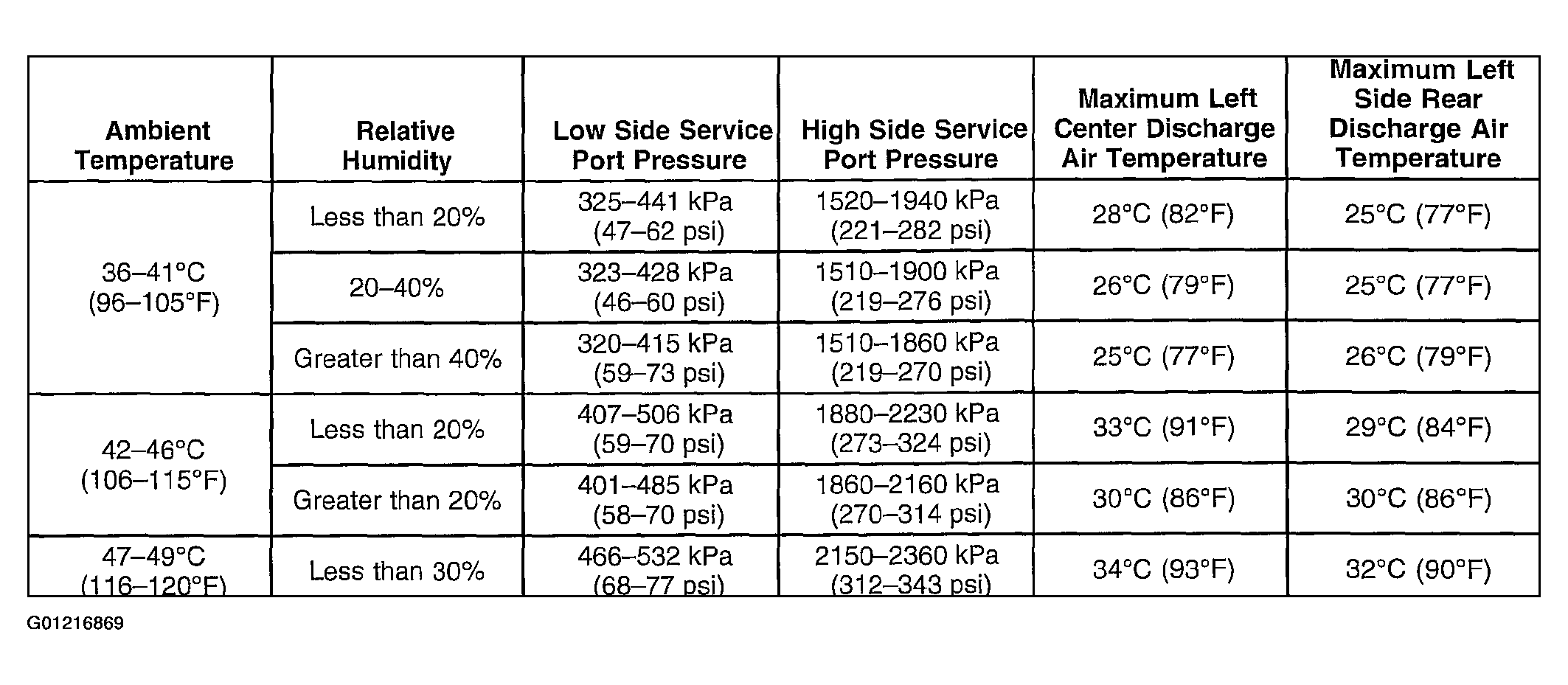

Fig 7: A/C Performance Table - With Rear A/C (2 Of 2)
G01216869Courtesy of GENERAL MOTORS CORP.

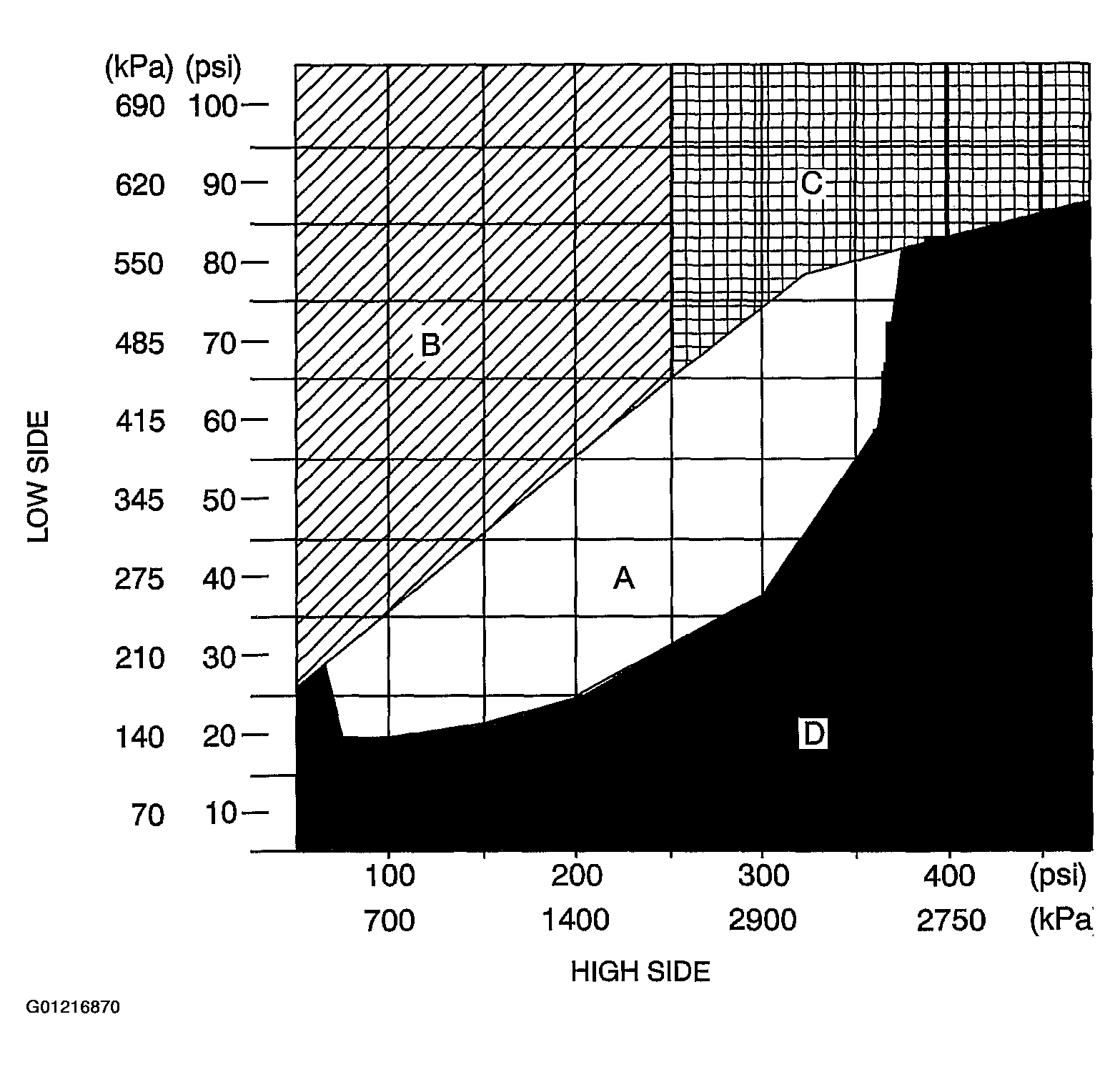

Fig 8: A/C System Pressure - Zone Classification With Rear A/C
G01216870Courtesy of GENERAL MOTORS CORP.
