Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J-42640 in the steering column lower access hole.
  2. Remove the intermediate shaft bearing. Refer to Intermediate Steering Shaft Bearing Replacement .

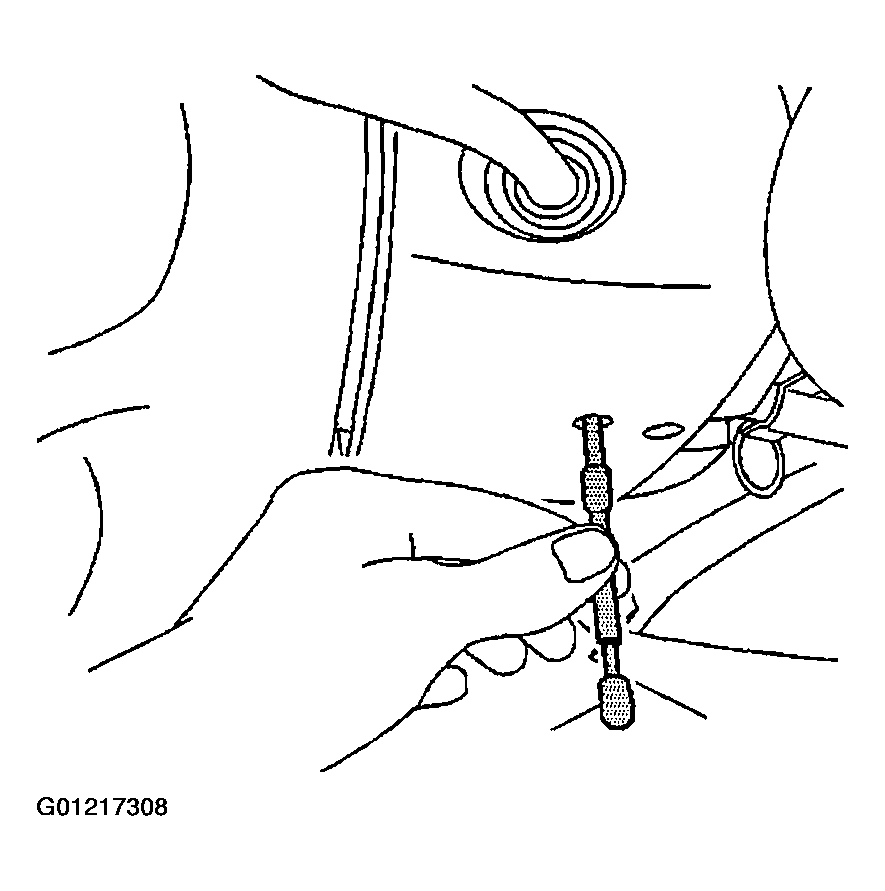

    Fig 1: Installing J-42640 In Steering Column Lower Access Hole
    G01217308Courtesy of GENERAL MOTORS CORP.
  3. Remove the intermediate shaft seal (1) from the intermediate shaft bearing (2).

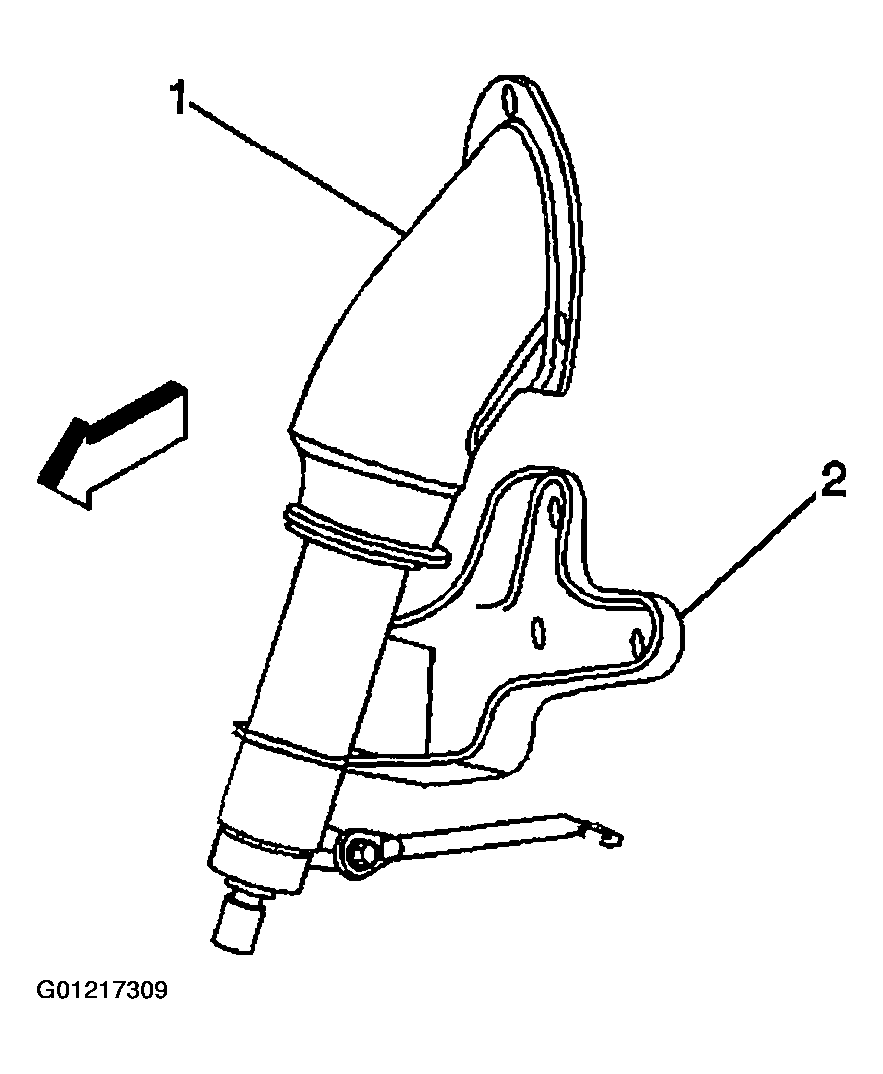

    Fig 2: Removing Intermediate Shaft Seal From Intermediate Shaft Bearing
    G01217309Courtesy of GENERAL MOTORS CORP.
