Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intermediate shaft seal (1) to the intermediate shaft bearing (2).

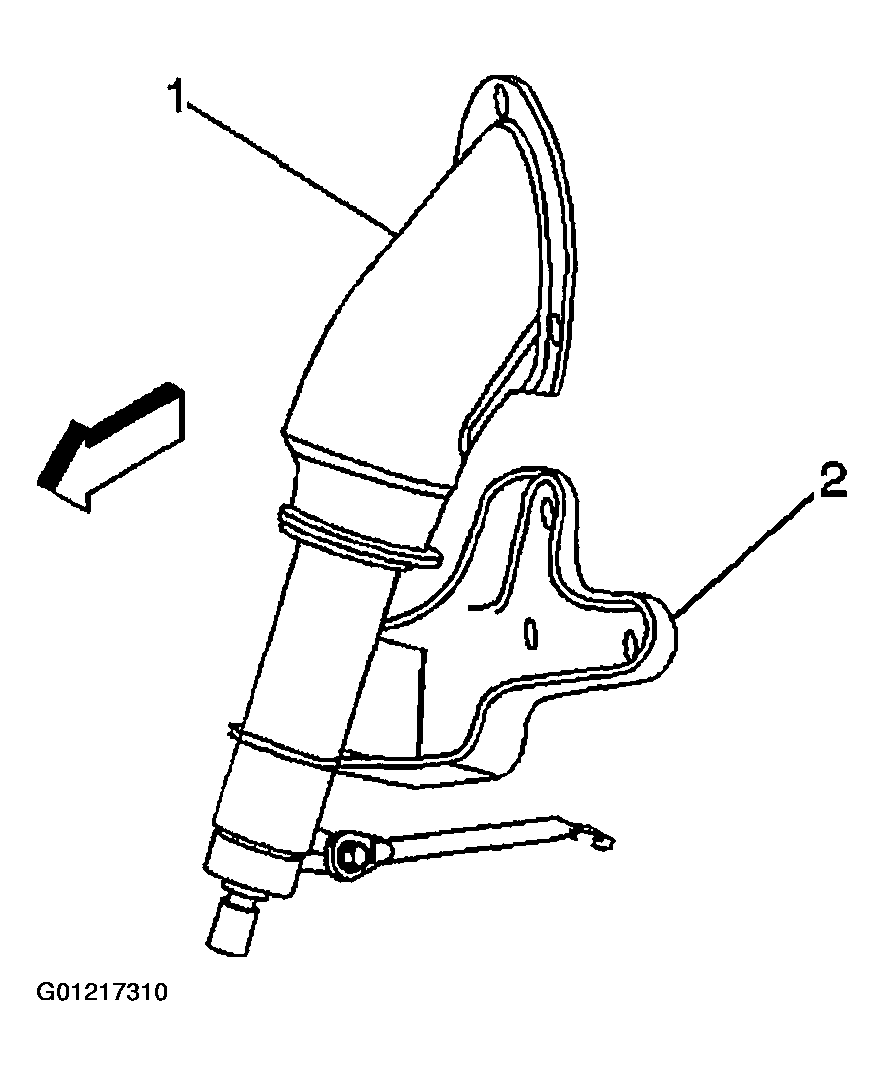

    Fig 1: Installing Intermediate Shaft Seal To Intermediate Shaft Bearing
    G01217310Courtesy of GENERAL MOTORS CORP.
  2. Install the intermediate shaft bearing. Refer to Intermediate Steering Shaft Bearing Replacement .
  3. Remove the J-42640 from the steering column lower access hole.

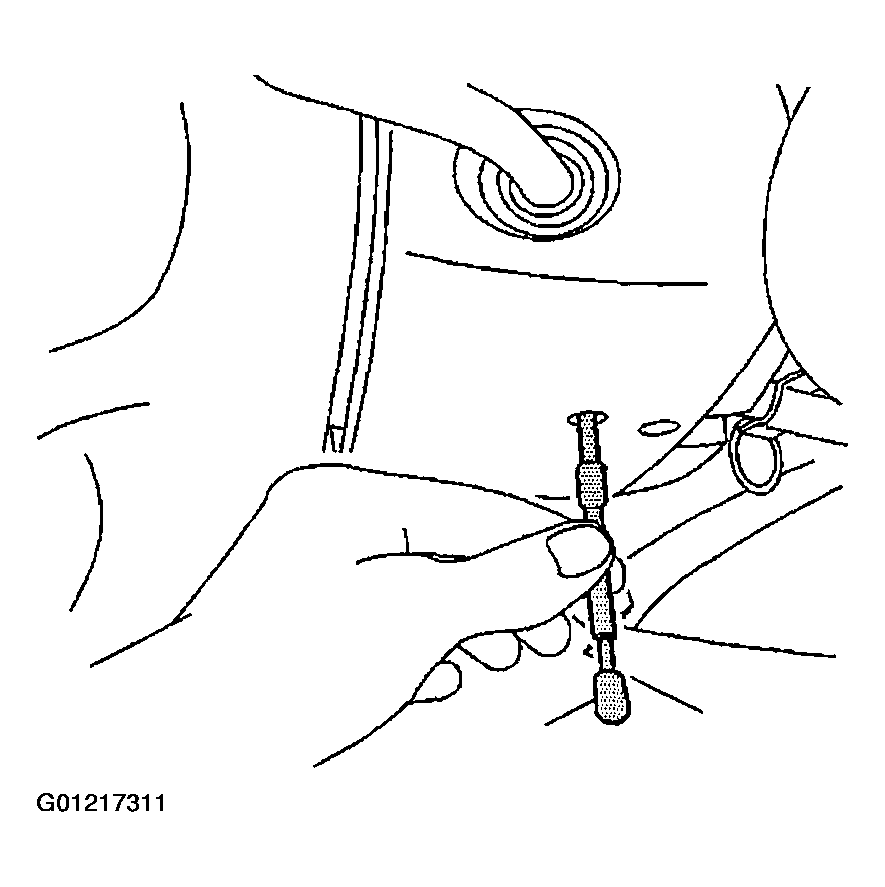

    Fig 2: Removing J-42640 From Steering Column Lower Access Hole
    G01217311Courtesy of GENERAL MOTORS CORP.
