Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition lock cylinder by performing the following procedure:
    1. Align the positioning locking tab slot on the lock module to the positioning tab on the ignition lock cylinder.
    2. Push the lock cylinder in until the tab locks in the lock module.
  2. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  3. Enable the SIR system. Refer to ZONE 3 .
  4. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  5. Perform the Passlock learn procedure. Refer to Programming Theft Deterrent System Components in Theft Deterrent .

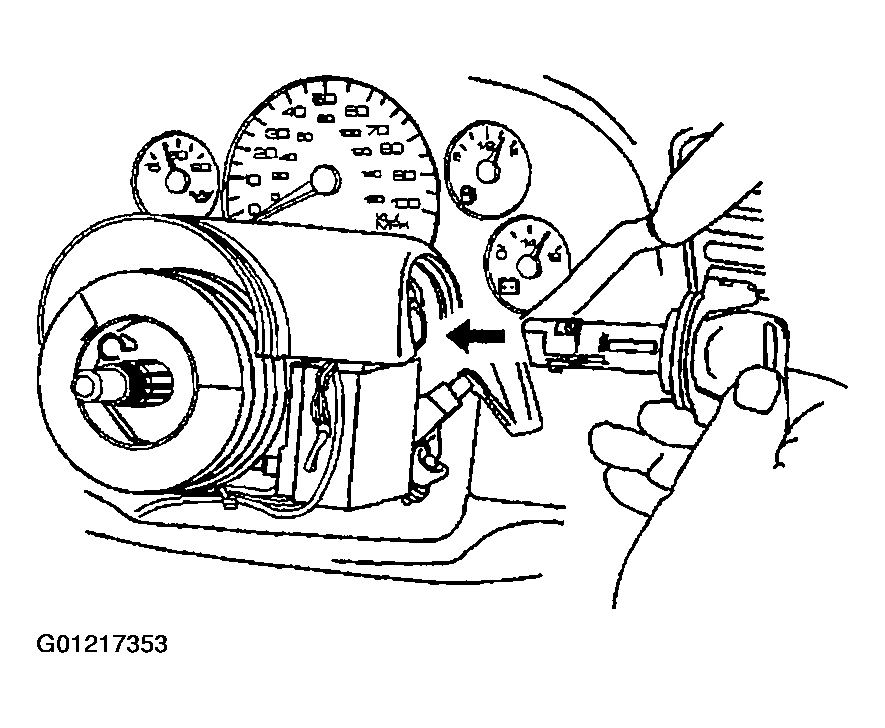

    Fig 1: Installing Ignition Lock Cylinder
    G01217353Courtesy of GENERAL MOTORS CORP.
