Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the inner tie rod (3) threads with a suitable chassis lubricant before installing the outer tie rod (1).
  2. Install the outer tie rod (1) to the inner tie rod (3). Do not tighten jam nut at this time.
    Fig 1: Installing Outer Tie Rod To Inner Tie Rod
    G01217261Courtesy of GENERAL MOTORS CORP.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the outer tie rod to steering knuckle retaining nut.

    Tighten

    Tighten the nut to 63 N.m (47 lb ft).

  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Lower the vehicle.
  6. Adjust the front toe. Refer to Measuring Wheel Alignment in SPECIFICATIONS .

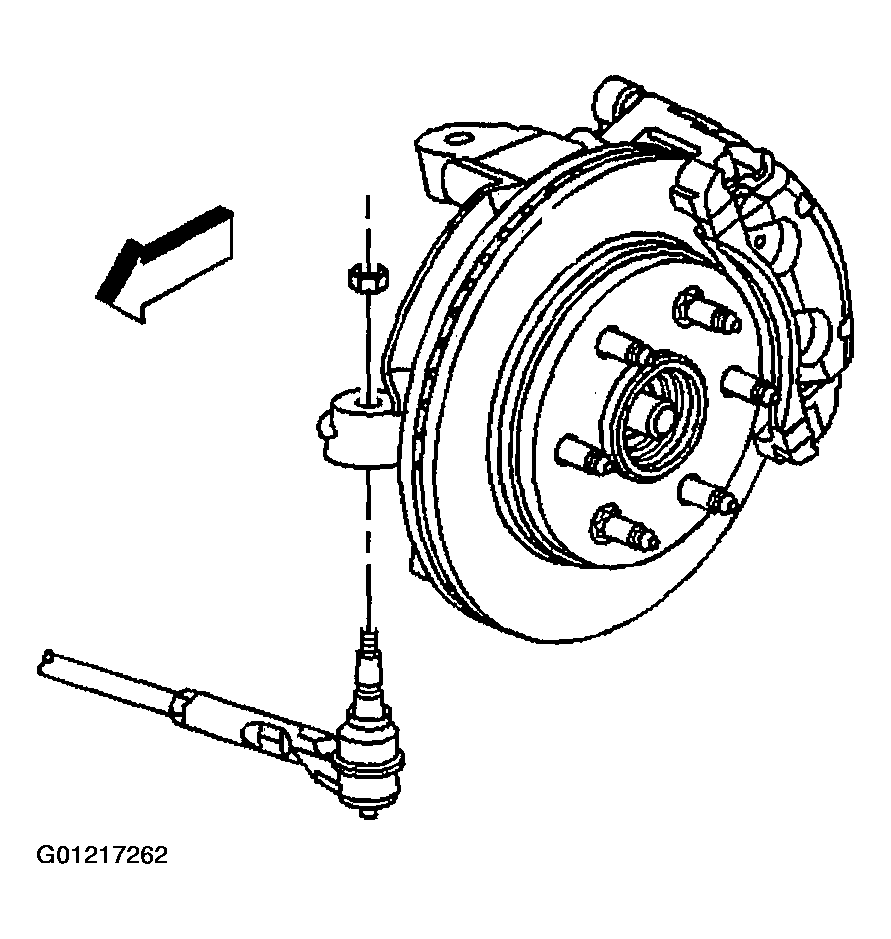

    Fig 2: Installing Outer Tie Rod To Steering Knuckle Retaining Nut
    G01217262Courtesy of GENERAL MOTORS CORP.
