Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitable support the vehicle.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the outer tie rod. Refer to Tie Rod Replacement - Outer .
  4. Loosen the inner tie rod to relay rod retaining nut using J-34028  .
    Fig 1: Loosening Inner Tie Rod To Relay Rod Retaining Nut Using J-34028
    G01217263Courtesy of GENERAL MOTORS CORP.
  5. Remove the inner tie rod to the relay rod retaining nut. Discard old nut.

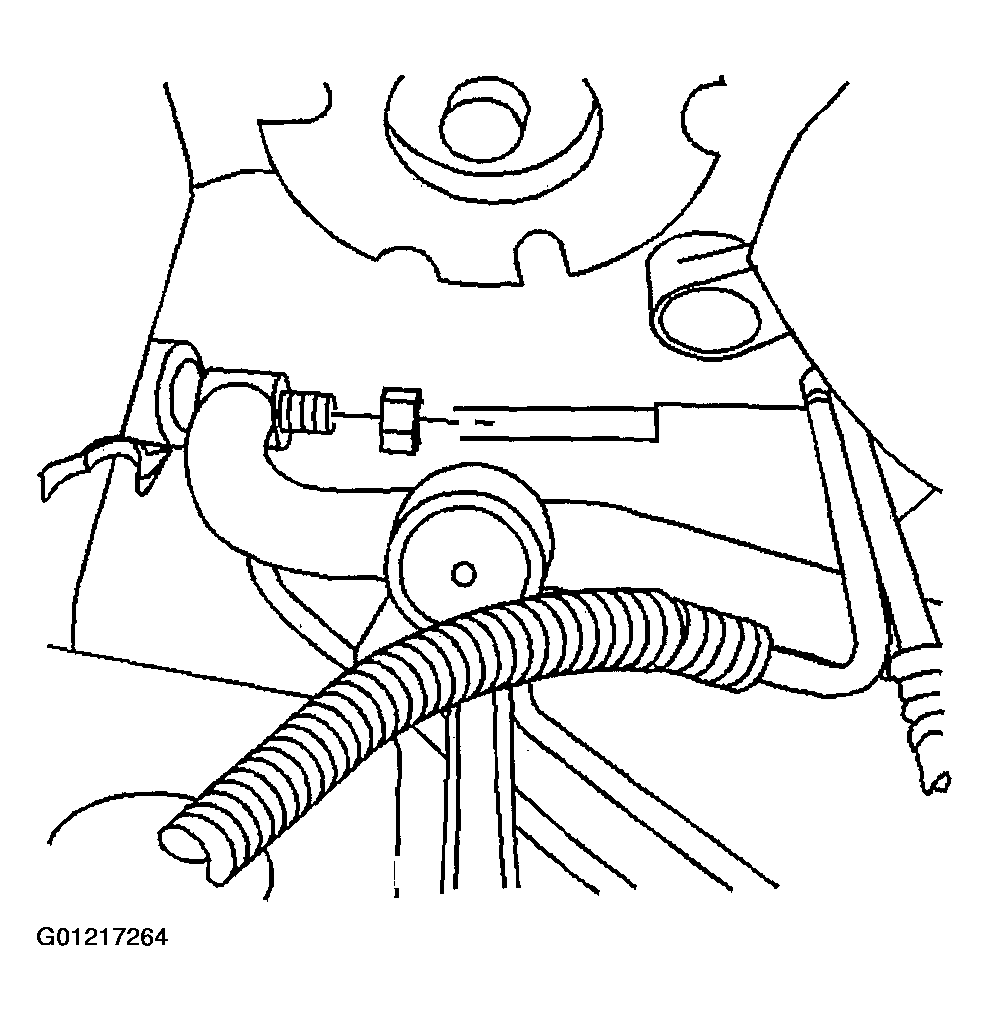

    Fig 2: Removing Inner Tie Rod To Relay Retaining Nut
    G01217264Courtesy of GENERAL MOTORS CORP.
  6. Remove the inner tie rod from the vehicle.
  7. Inspect the shaft for bent or damaged threads.
  8. Clean the tapered surface of the steering knuckle.

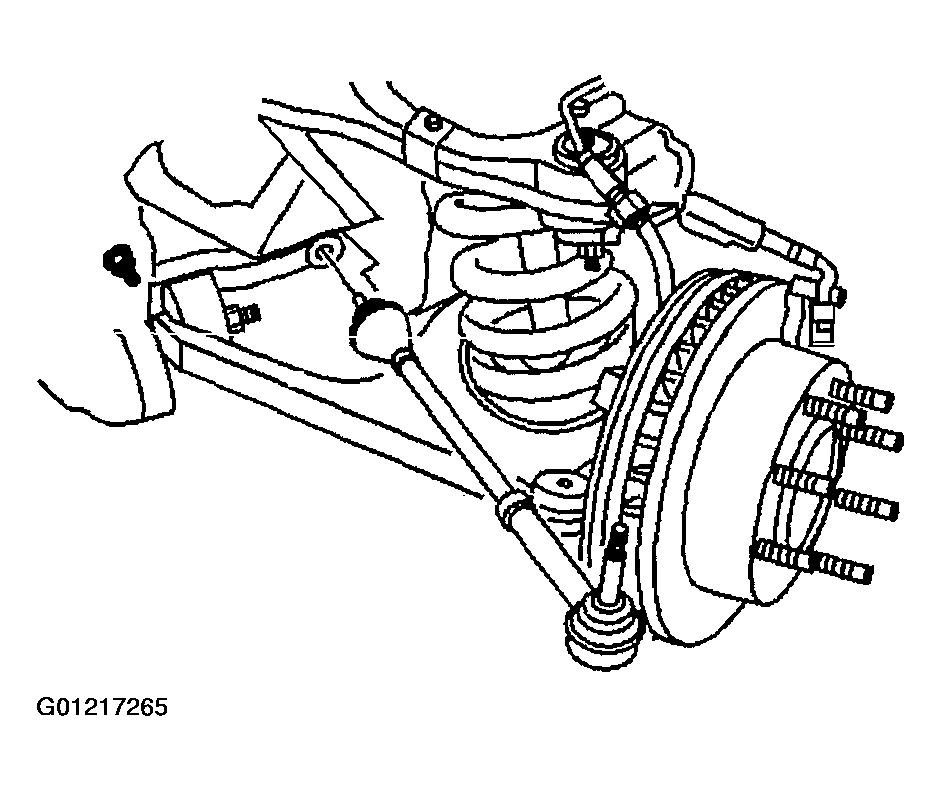

    Fig 3: Removing Inner Tie Rod From Vehicle
    G01217265Courtesy of GENERAL MOTORS CORP.
