Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important: Make sure the shock dampener is on the rack before installing the inner tie rod.
The threads must be clean prior to the Loctite® application. Check the Loctite®, or equivalent, container for expiration date. Use only enough Loctite® to evenly coat the threads.

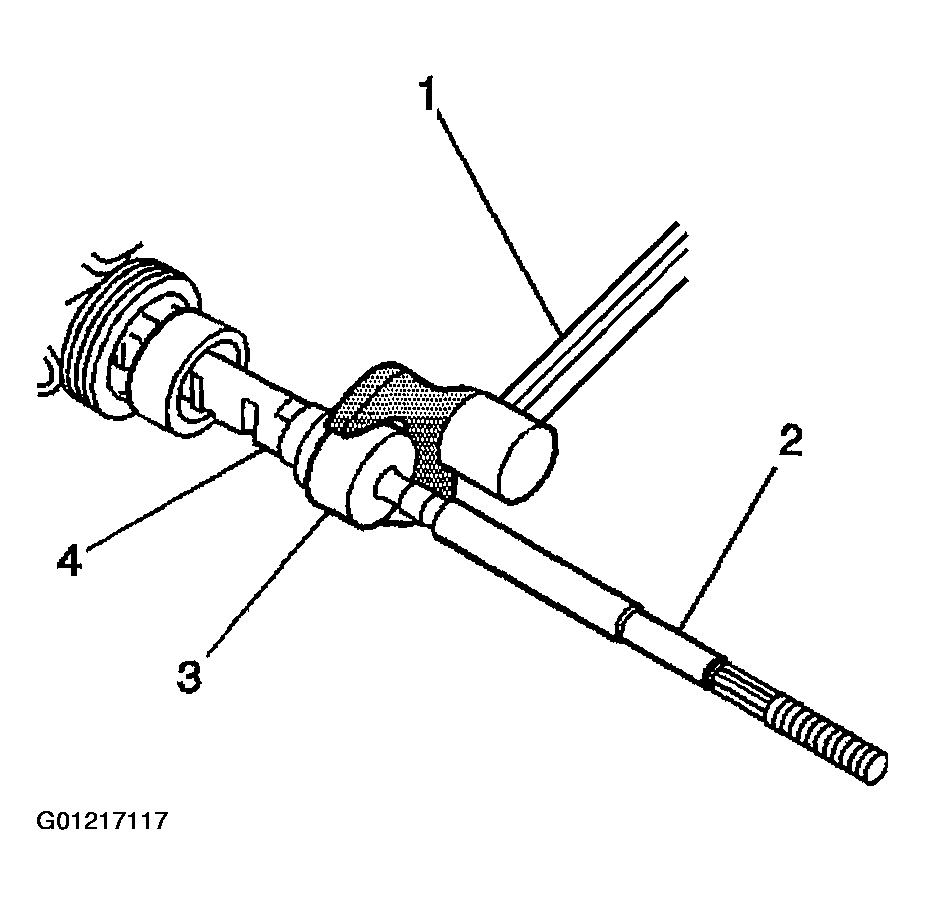

- Apply Loctite® 262 or equivalent to the inner tie rod threads (2).
- Install the inner tie rod (3) to the power steering gear (1).
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install a torque wrench (1) to the J-34028
to tighten the inner tie rod (2).
Tighten
Tighten the inner tie rod to 100 N.m (74 lb ft).
- Slide the shock dampener (2) over the inner tie rod housing (3) until the front lip of the shock dampener bottoms out against the inner tie rod housing.
- Install the rack and pinion boot. Refer to Rack and Pinion Boot Replacement - On Vehicle .
- Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
- Check the wheel alignment. Refer to Measuring Wheel Alignment in SPECIFICATIONS .
