Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Remove the outer tie rod stud retaining nut.

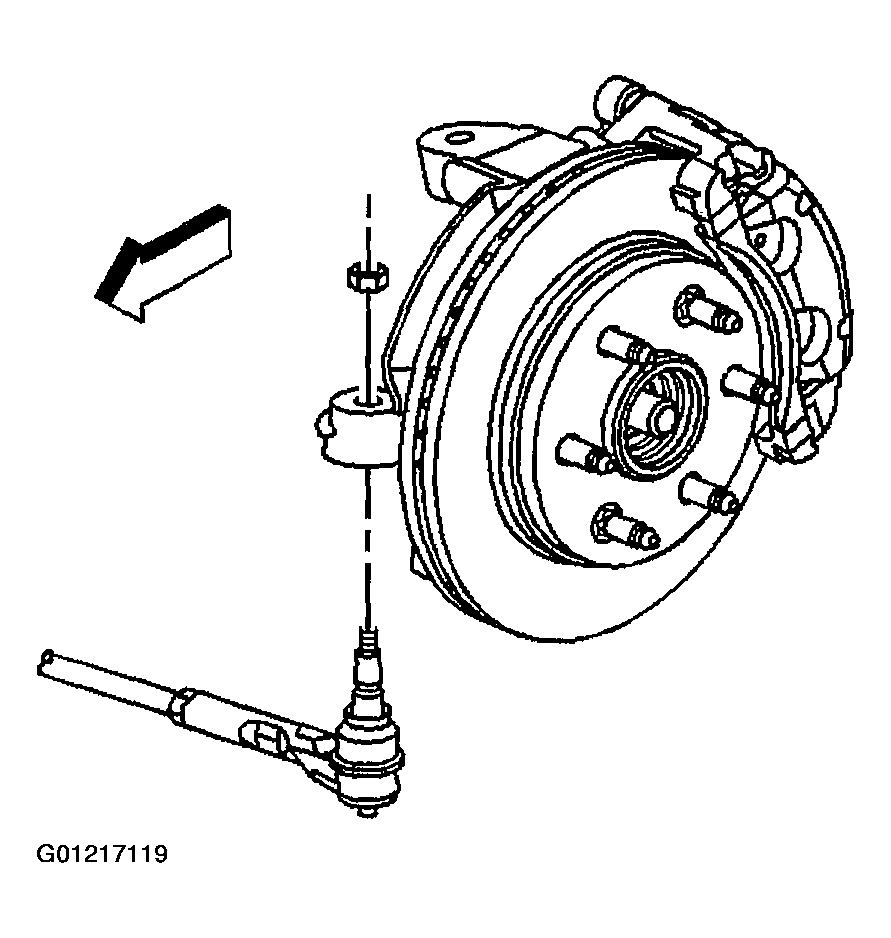

Fig 1: Removing Outer Tie Rod Stud Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Loosen the jam nut (2) on the inner tie rod (1).

Fig 2: Loosening Jam Nut On Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
Disconnect the outer tie rod from the steering knuckle using J-24319-B .

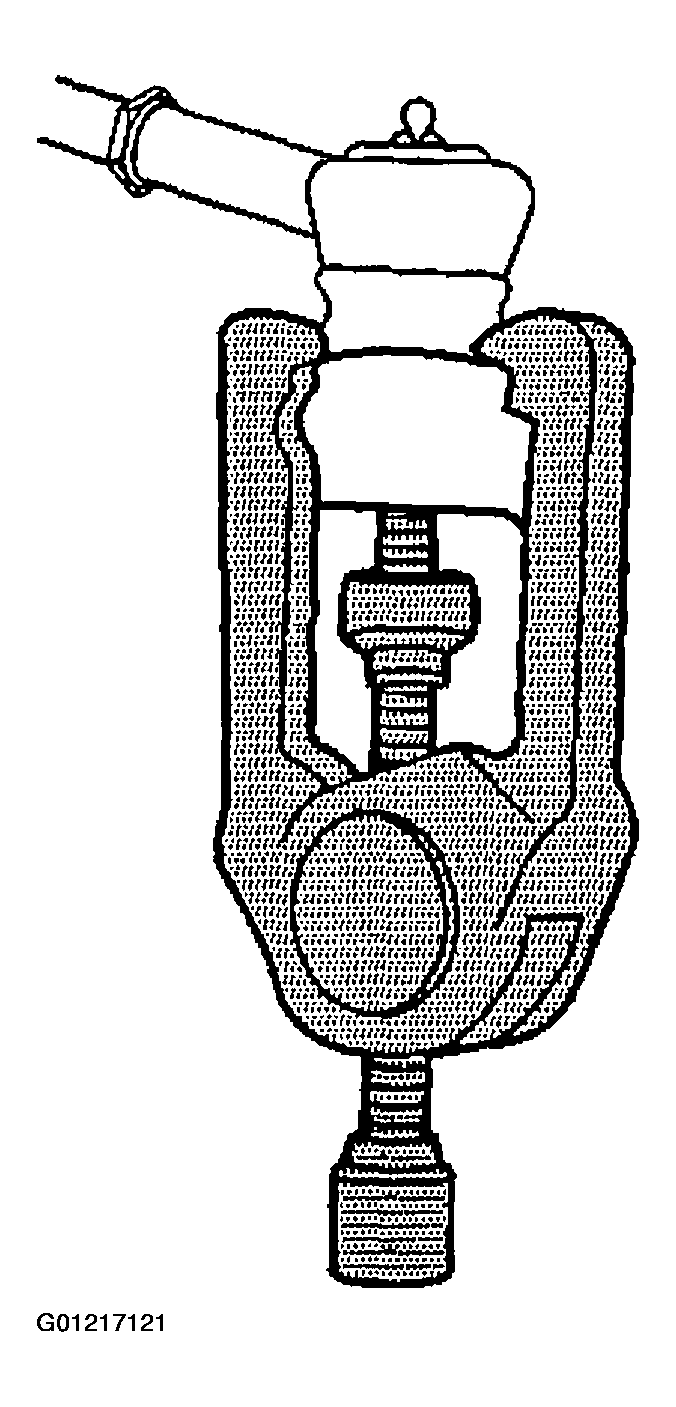

Fig 3: Disconnecting Outer Tie Rod From Steering Knuckle Using J-24319-B
Courtesy of GENERAL MOTORS CORP.
Remove the outer tie rod (3) from the inner tie rod (1).

Fig 4: Removing Outer Tie Rod From Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
