Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thrust support assembly. Refer to Steering Gear Thrust Support Replacement - Off Vehicle (700 Gear) .
  2. Remove the stub shaft (1) and the valve assembly (2) from the steering gear housing.
  3. If necessary, remove the stub shaft (1) from the valve assembly (2) in the following manner:
    1. Tap the stub shaft (1) lightly on a wood block in order to loosen the cap.
    2. Pull the cap and the valve spool out from valve body (2) 6 mm (1/4 in).
    3. Disengage the stub shaft pin (3) from the hole in the valve spool (4).

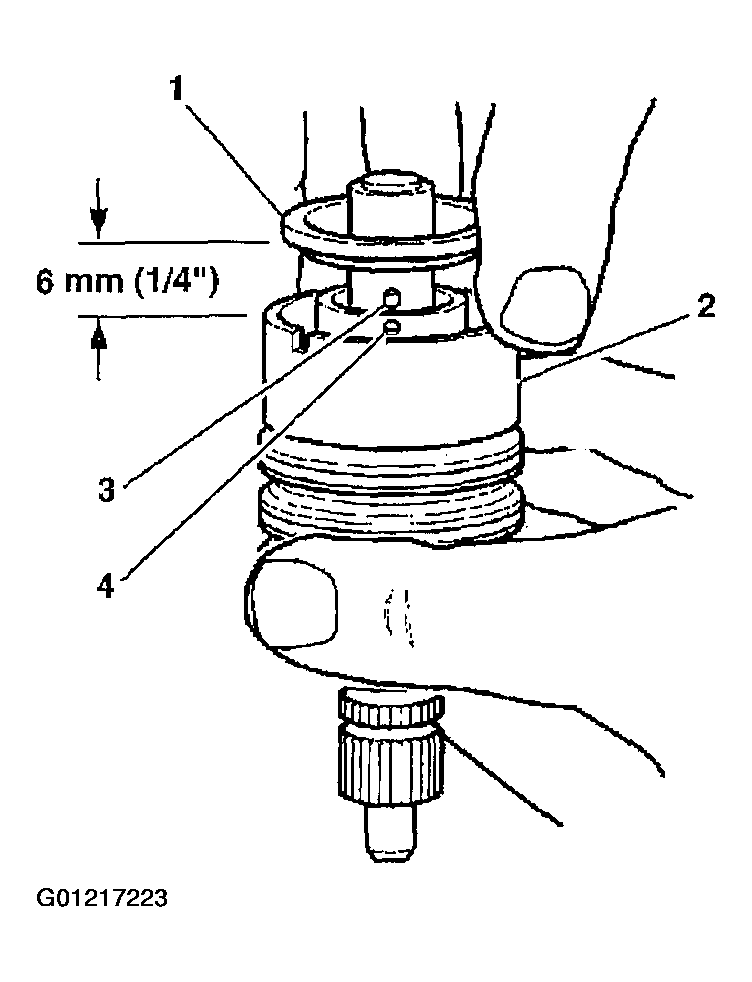

      Fig 1: Removing Stub Shaft & Valve Assembly From Steering Gear Housing
      G01217223Courtesy of GENERAL MOTORS CORP.
  4. If the valve assembly needs repair, disassemble the valve in the following manner:
    1. Simultaneously pull and rotate the valve spool (1) from the valve body (3).
    2. Remove the valve spool O-ring seal (2).
    3. Alternatively remove the valve body teflon rings (5) and the O-ring seals (4).

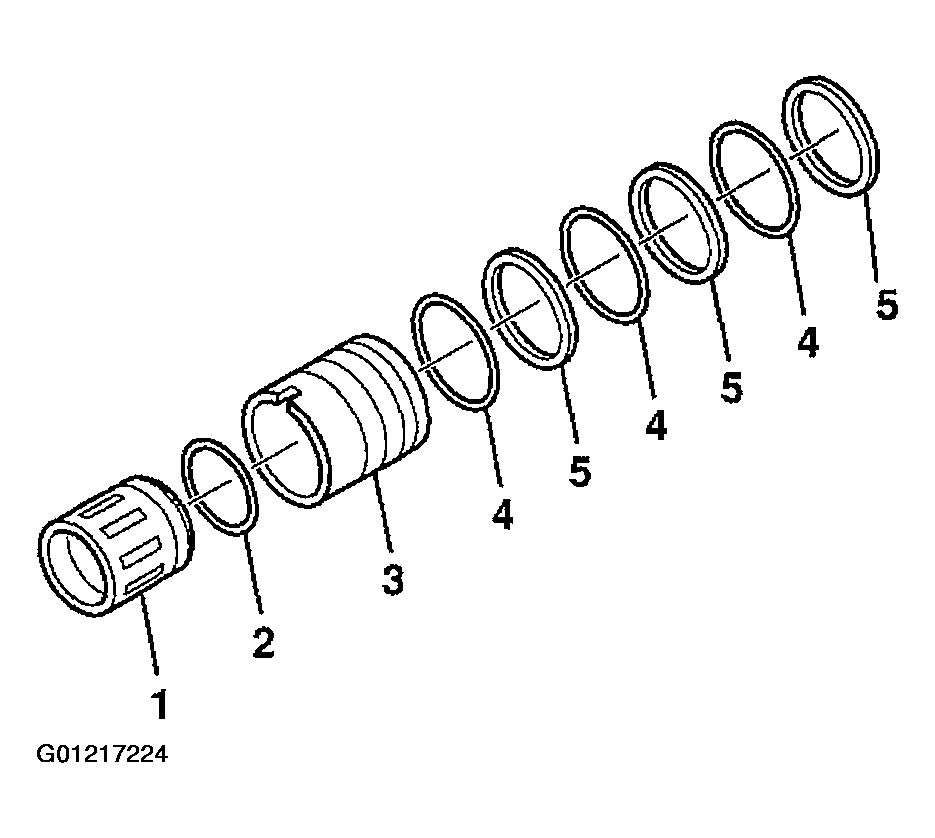

      Fig 2: Disassembling Steering Gear Valve
      G01217224Courtesy of GENERAL MOTORS CORP.
