Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the stub shaft back and forth in order to drain the power steering fluid.
  2. Remove the coupling shield retainer and the lock nut from the steering gear housing using J-43435  and a torque wrench.

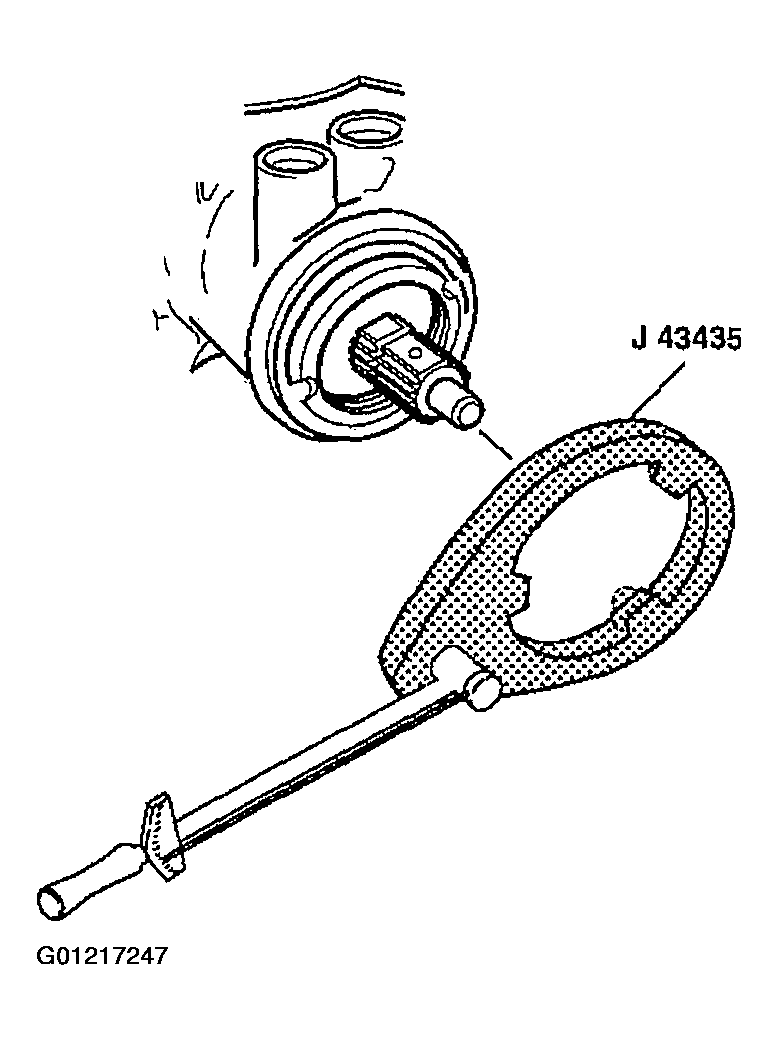

    Fig 1: Removing Coupling Shield Retainer & Lock Nut Using J-43435 & Torque Wrench
    G01217247Courtesy of GENERAL MOTORS CORP.
  3. Remove the adjuster nut assembly (2) from the steering gear housing (1) using J-42882  .

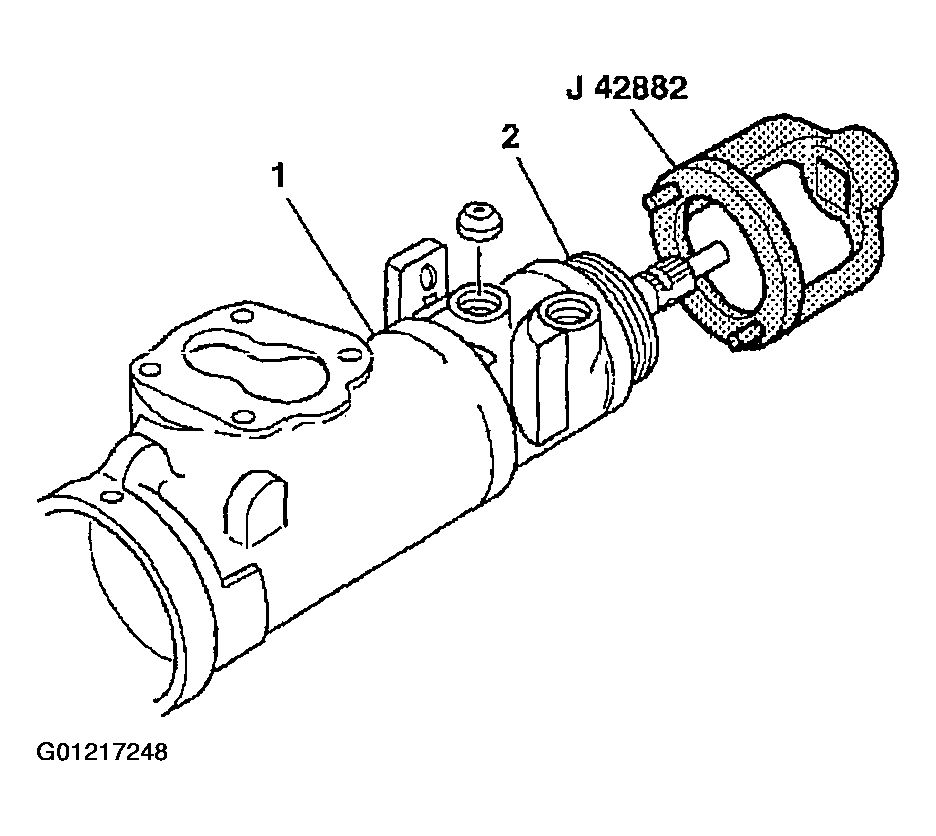

    Fig 2: Removing Adjuster Nut Assembly Using J-42882
    G01217248Courtesy of GENERAL MOTORS CORP.
  4. Remove the thrust support assembly (2) from the steering gear housing (1).
  5. Remove the O-ring seal (3) from the thrust support assembly (2).

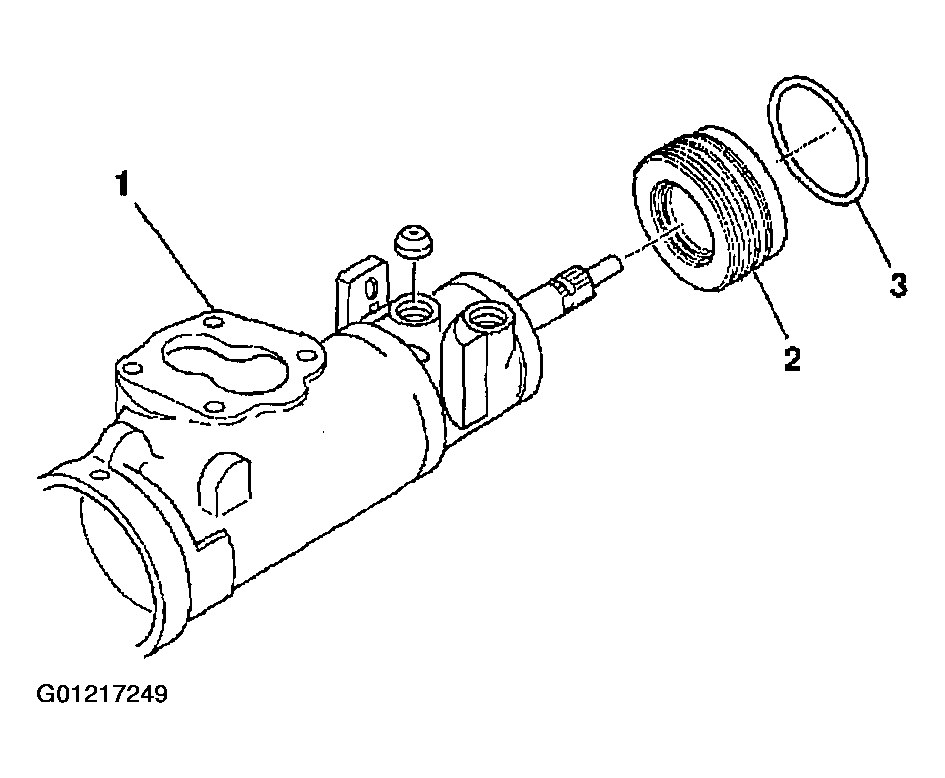

    Fig 3: Removing Thrust Support Assembly & O-Ring Seal
    G01217249Courtesy of GENERAL MOTORS CORP.
