Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the stub back and forth to drain the fluid.
  2. Insert a punch into the housing access hole to unseat the retaining ring (1).
  3. Remove the plug (2).
  4. Remove the O-ring seal (3).

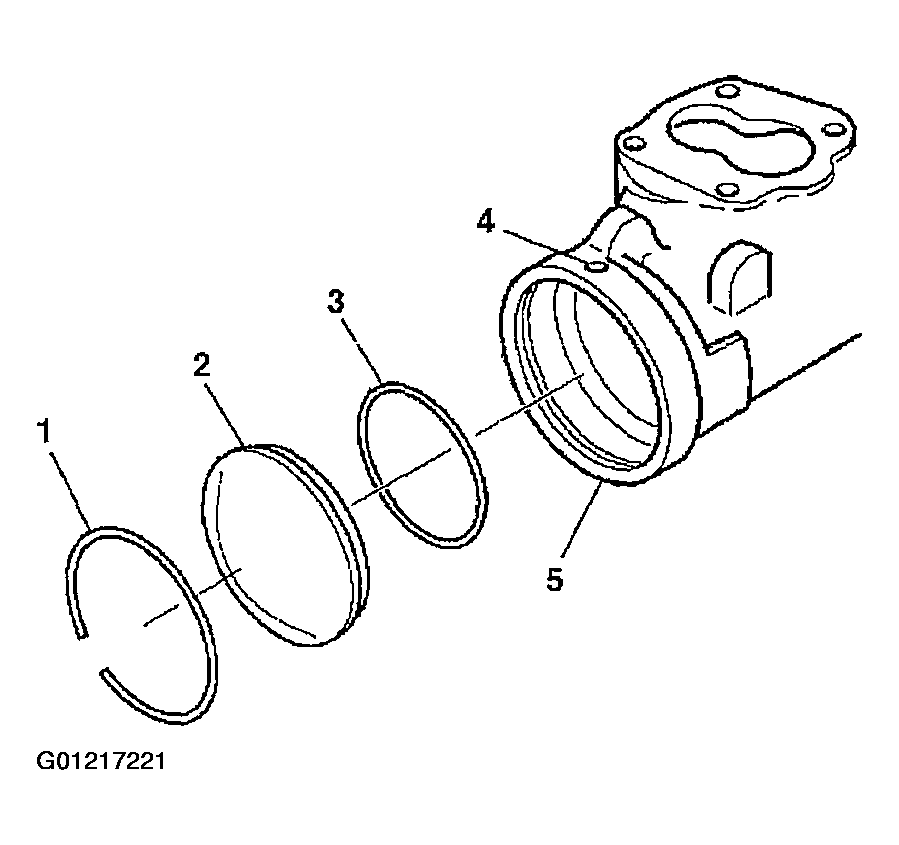

    Fig 1: Removing Retaining Ring, Plug & O-Ring Seal
    G01217221Courtesy of GENERAL MOTORS CORP.
