Assembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal (3) with power steering fluid.
  2. Install the O-ring seal (3) into the steering gear housing (5).
  3. Install the plug (2).
  4. Install the retaining ring (1). Ensure that the retaining ring open end is approximately 25 mm (1 in) from the access hole in the steering gear housing (5).

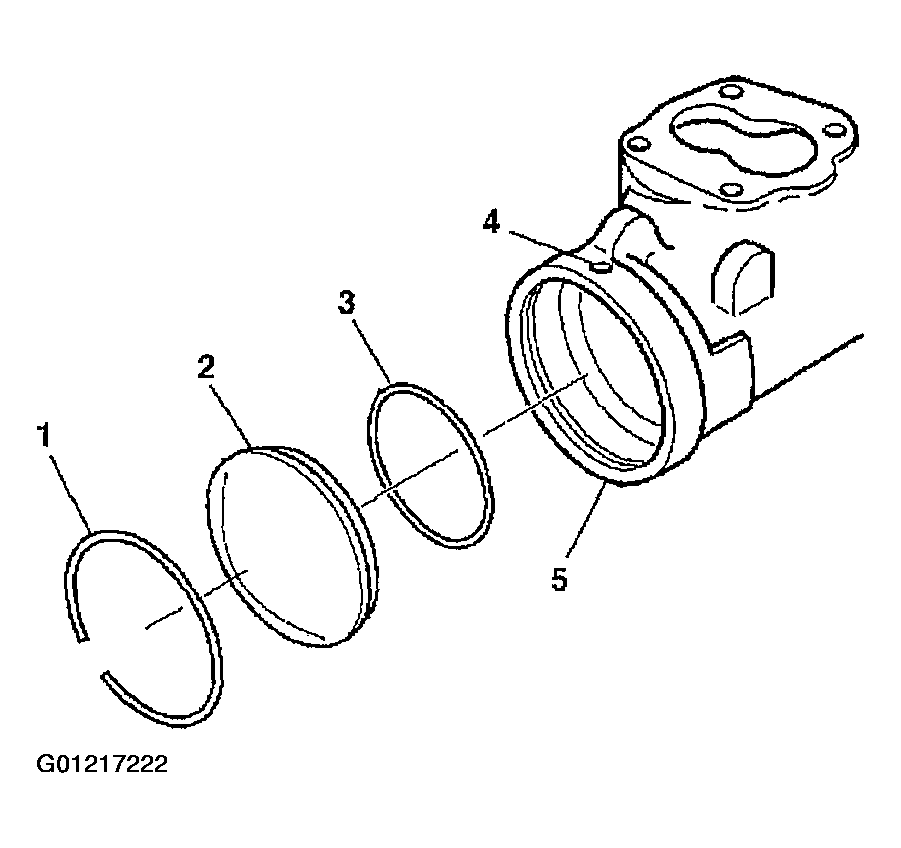

    Fig 1: Installing O-Ring Seal, Plug & Retaining Ring
    G01217222Courtesy of GENERAL MOTORS CORP.
