Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen both cylinder line fittings on the cylinder line fittings on the cylinder end of the gear assembly.
  2. Loosen both fittings on the cylinder line assemblies (1) at the valve end of the gear assembly.
  3. Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

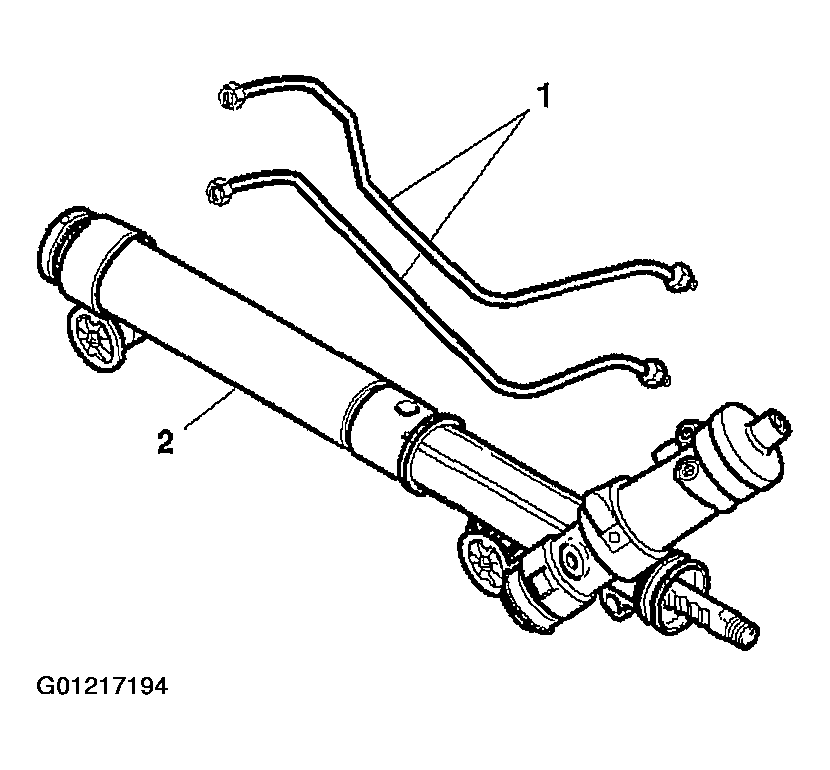

    Fig 1: Removing Cylinder Line Assemblies From Rack & Pinion Gear Assembly
    G01217194Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seals (1) from the valve end of line.
  5. Discard the O-ring seals (1).

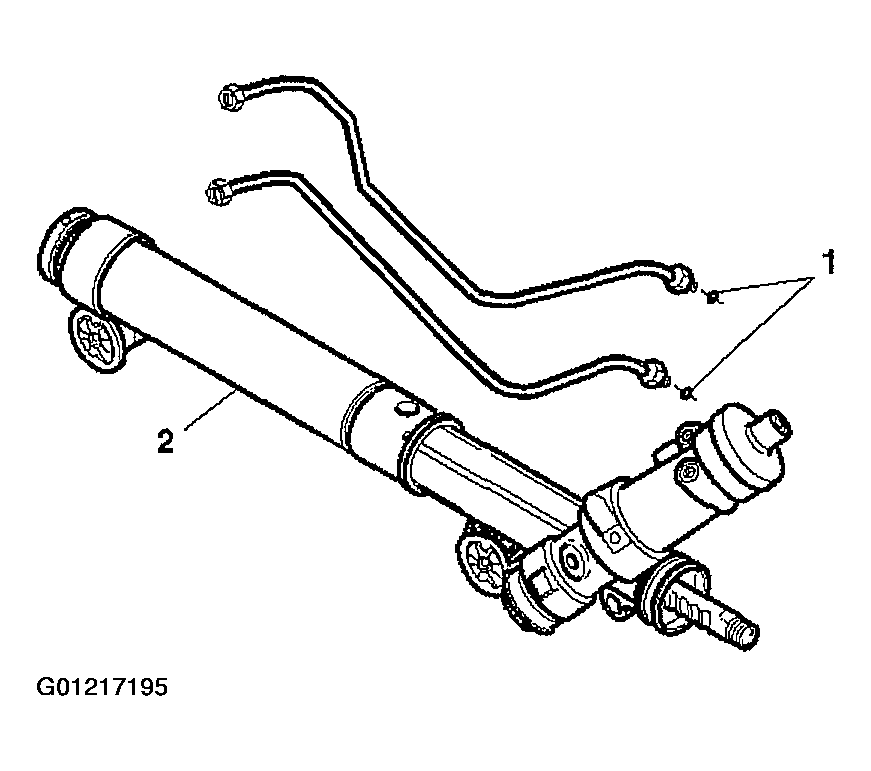

    Fig 2: Removing O-Ring Seals
    G01217195Courtesy of GENERAL MOTORS CORP.
