Assembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the check valve (1) using a 9.52 mm inch diameter piece of tubing 100 mm (4 in) long to drive into the steering gear housing.

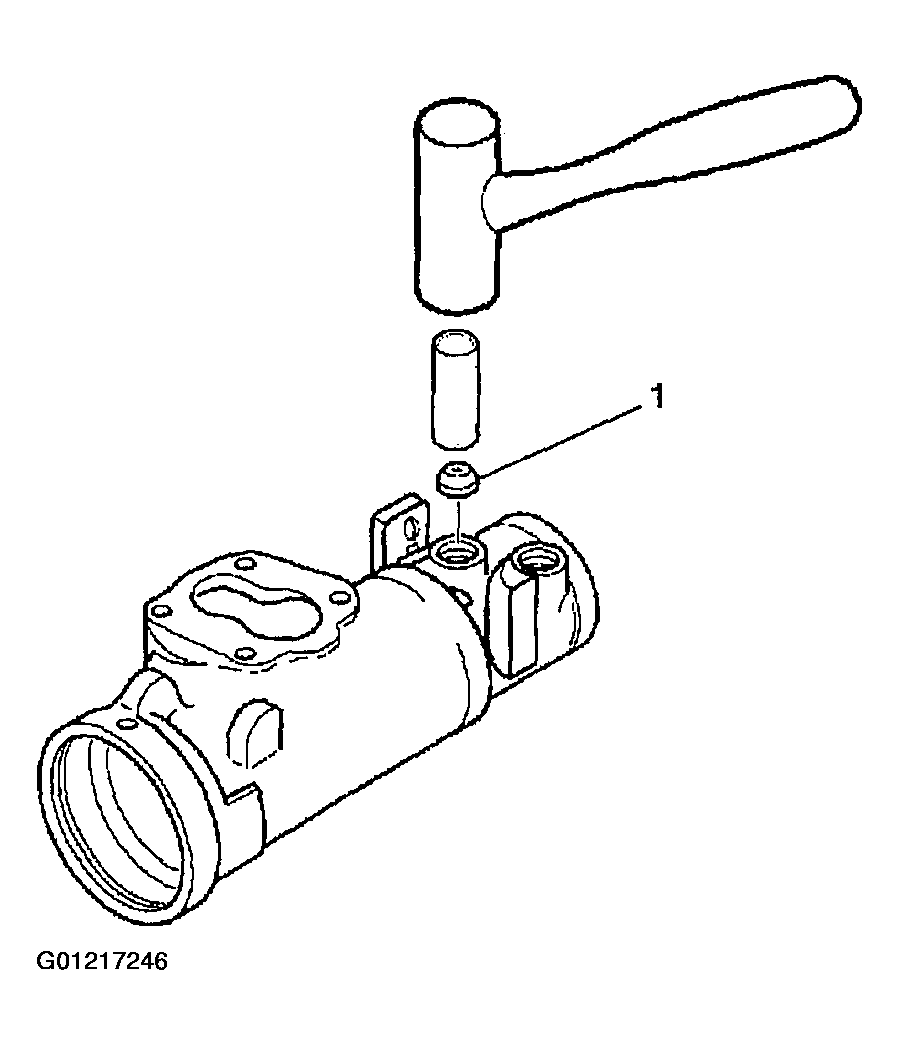

Fig 1: Installing Check Valve Into Steering Gear Housing
G01217246Courtesy of GENERAL MOTORS CORP.
