Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the outer tie rod. Refer to Tie Rod End Replacement - Outer .
Remove the hexagon jam nut (2) from the inner tie rod (1).

Fig 1: Removing Hexagon Jam Nut From Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
Remove the tie rod end clamp (2) from the rack and pinion boot (1).

Fig 2: Removing Tie Rod End Clamp From Rack & Pinion Boot
Courtesy of GENERAL MOTORS CORP.
Remove the boot clamp (1) from the rack and pinion boot with side cutters.
Discard the boot clamp (1).

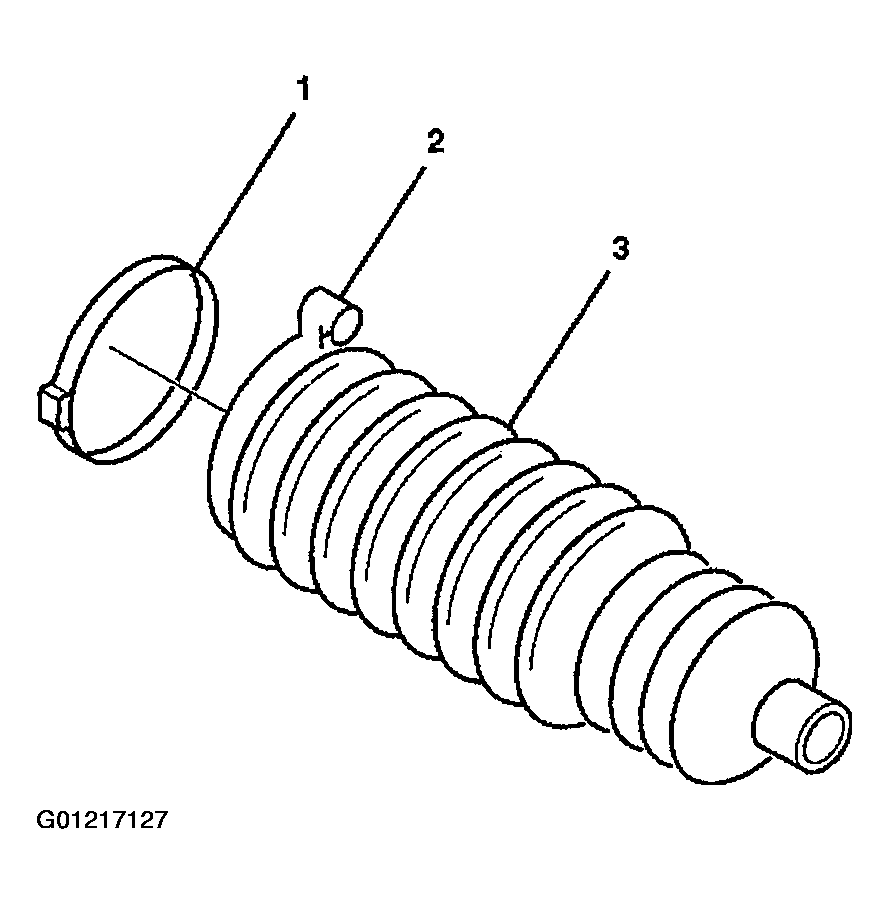

Fig 3: Removing Boot Clamp
Courtesy of GENERAL MOTORS CORP.

Important: Prior to removing the breather tube or the rack and pinion boot, mark the location of the breather tube on the power steering gear.
Disconnect the breather tube from the rack and pinion boot (1).
Remove the rack and pinion boot (1) from the power steering gear.

Fig 4: Removing Rack & Pinion Boot From Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
