Assembly Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the O-ring seal (3) and the teflon ring (2).
  2. Lubricate both parts with power steering fluid.
  3. Install the worm shaft (14) to the rack piston (4) outside of the steering gear housing (9).

    Fully seat the worm shaft to the rack piston.

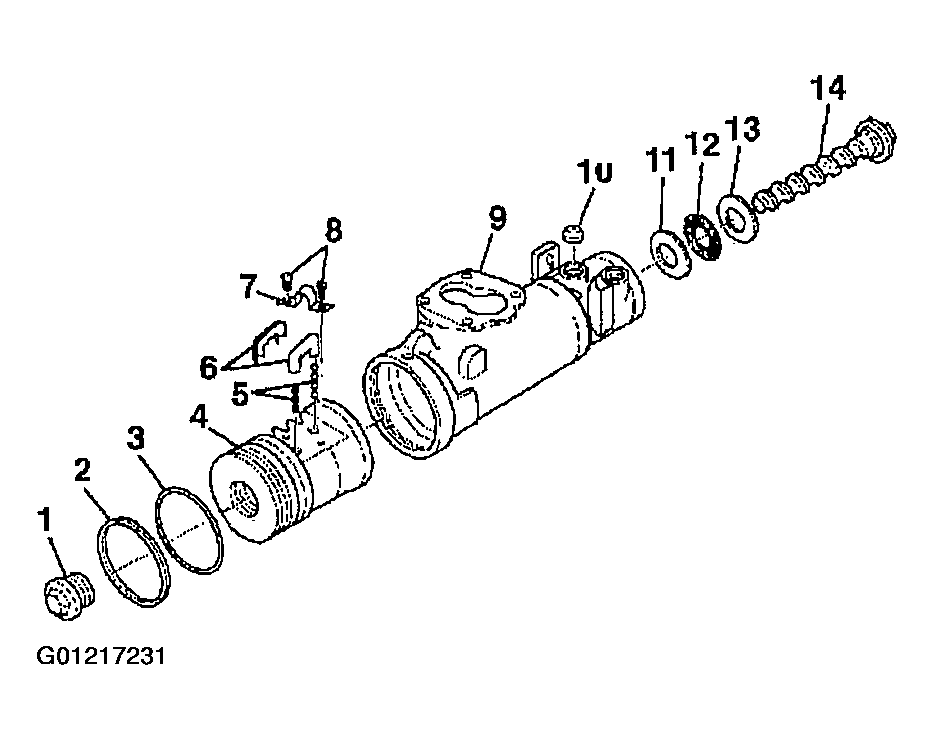

    Fig 1: Installing Worm Shaft To Rack Piston
    G01217231Courtesy of GENERAL MOTORS CORP.
  4. Align the worm shaft spiral groove with the rack piston ball return guide hole (1).
    WARNING: Improper rack piston ball installation may result in personal injury. The black rack piston balls are smaller than the silver rack piston balls. Install the black and the silver rack piston balls alternately into the rack piston and the ball guide to maintain the rack piston to the worm shaft preload.
  5. Lubricate the rack piston balls with power steering fluid.
  6. Insert the rack piston balls through the ball return guide hole (1) while turning worm shaft (2) counterclockwise in order to install the rack piston balls into the rack piston.

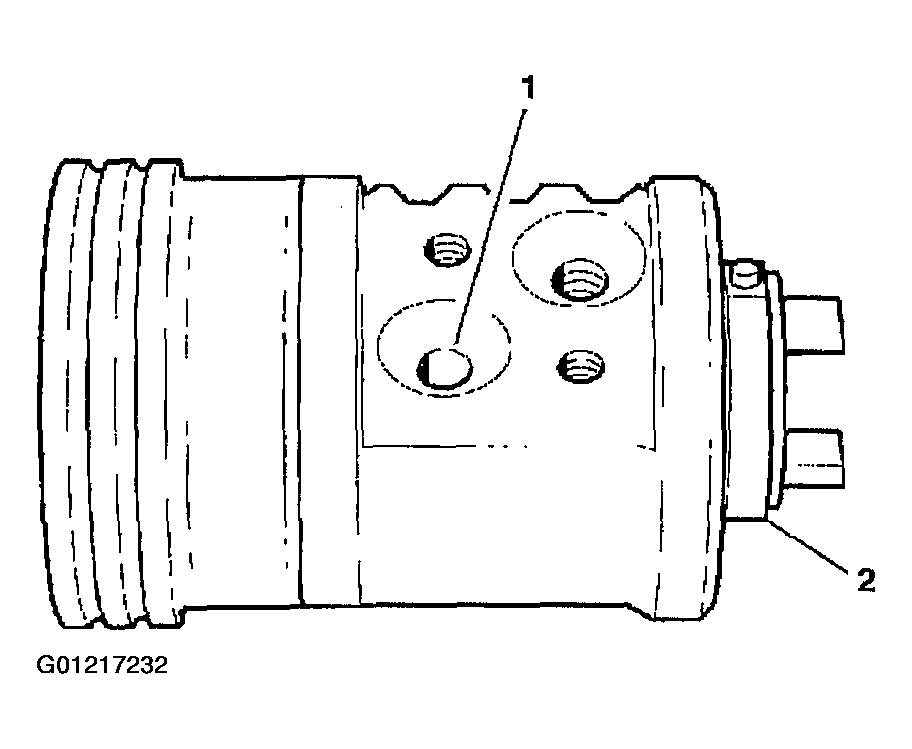

    Fig 2: Aligning Worm Shaft Spiral Groove With Rack Piston Ball Return Guide Hole
    G01217232Courtesy of GENERAL MOTORS CORP.
  7. Install the remaining rack piston balls (3) into the ball guide (1) using grease at each end (2) to retain the rack piston balls (3).

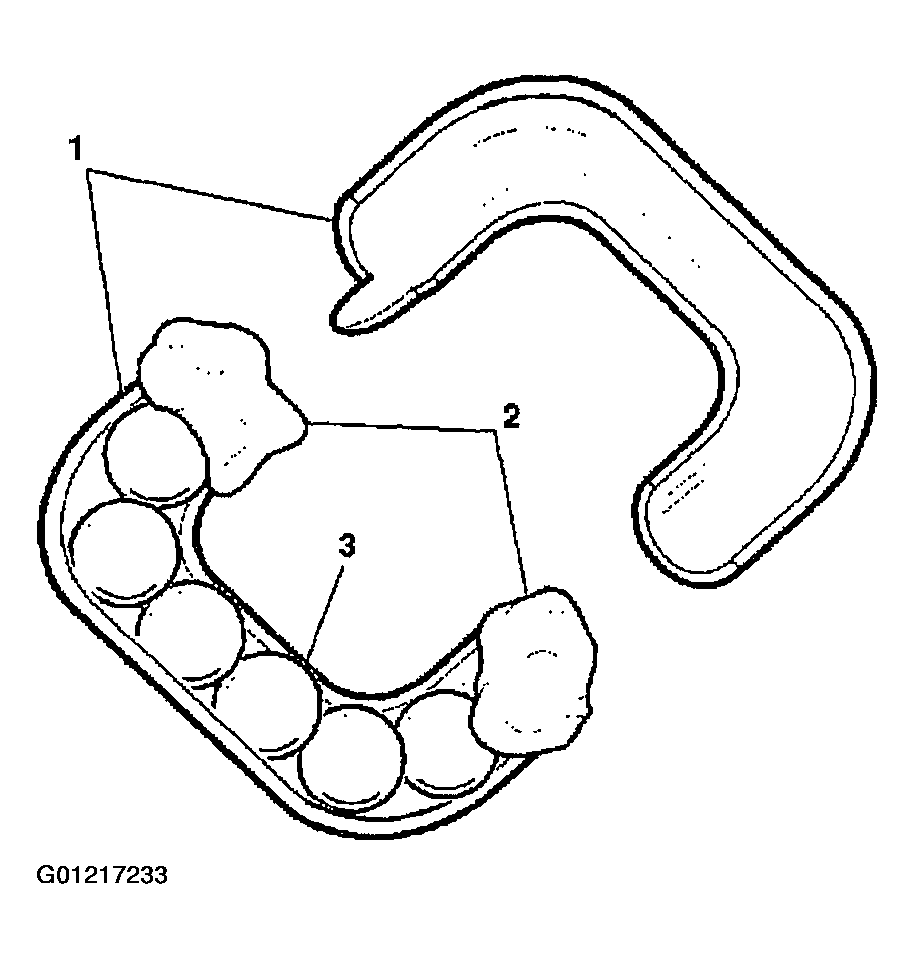

    Fig 3: Installing Rack Piston Balls Into Ball Guide
    G01217233Courtesy of GENERAL MOTORS CORP.
  8. Install the ball guide (3) to the rack piston (2).
  9. Install the ball guide clamp (4).
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  10. Install the screws (5).

    Tighten

    Tighten the screws (5) to 6 N.m (53 lb in).

  11. Insert J-21552  into the bore of the rack piston while turning the worm shaft counterclockwise. The turning of the worm shaft forces the rack piston onto J-21552  . The rack piston balls remain in place.

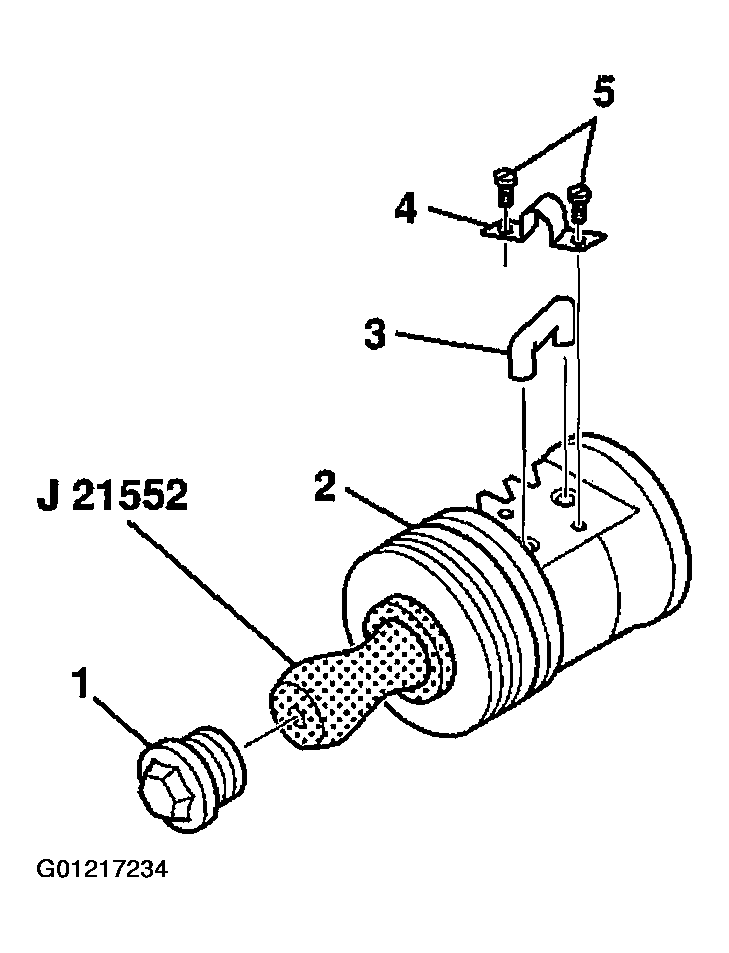

    Fig 4: Installing Screws & Inserting J-21552
    G01217234Courtesy of GENERAL MOTORS CORP.
  12. Install the flat races (2, 4) and the thrust bearing (3) onto the worm shaft (1).
    Fig 5: Installing Flat Races & Thrust Bearing Onto Worm Shaft
    G01217235Courtesy of GENERAL MOTORS CORP.
  13. Install the worm shaft (4) to the steering gear housing (3).

    Important:  Do not adjust the worm shaft until all components are installed onto the steering gear housing.

  14. Install the spool valve. Refer to Steering Gear Valve Replacement - Off Vehicle (700 Gear) .
  15. Install the rack piston (2) to the worm (4) from J-21552  using J-8947  to compress the seals.
  16. Hold J-21552  tightly against the worm shaft (4).
  17. Turn the stub shaft clockwise until the rack piston (2) is seated on the worm shaft (4).
  18. Remove J-21552  from the rack piston (1).
  19. Install the rack piston plug (1).

    Tighten

    Tighten the rack piston plug to 150 N.m (111 lb ft).

    Fig 6: Installing Worm Shaft & Rack Piston
    G01217236Courtesy of GENERAL MOTORS CORP.
  20. Install the housing end plug. Refer to Steering Gear Housing End Plug Replacement - Off Vehicle .

    Important:  Do not adjust the pitman shaft until all components are installed onto the steering gear housing.

  21. Install the pitman shaft seals and bearing. Refer to Pitman Shaft Seals and Bearing Replacement - Off Vehicle (700 Gear) .
  22. To adjust the steering gear; refer to one of the following procedures:
