Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Siphon the power steering fluid from the reservoir.
  2. Disconnect the power steering reservoir outlet hose from the power steering pump.
  3. Disconnect the power steering reservoir outlet hose from the power steering gear remote reservoir.
  4. Remove the power steering reservoir outlet hose from the vehicle.

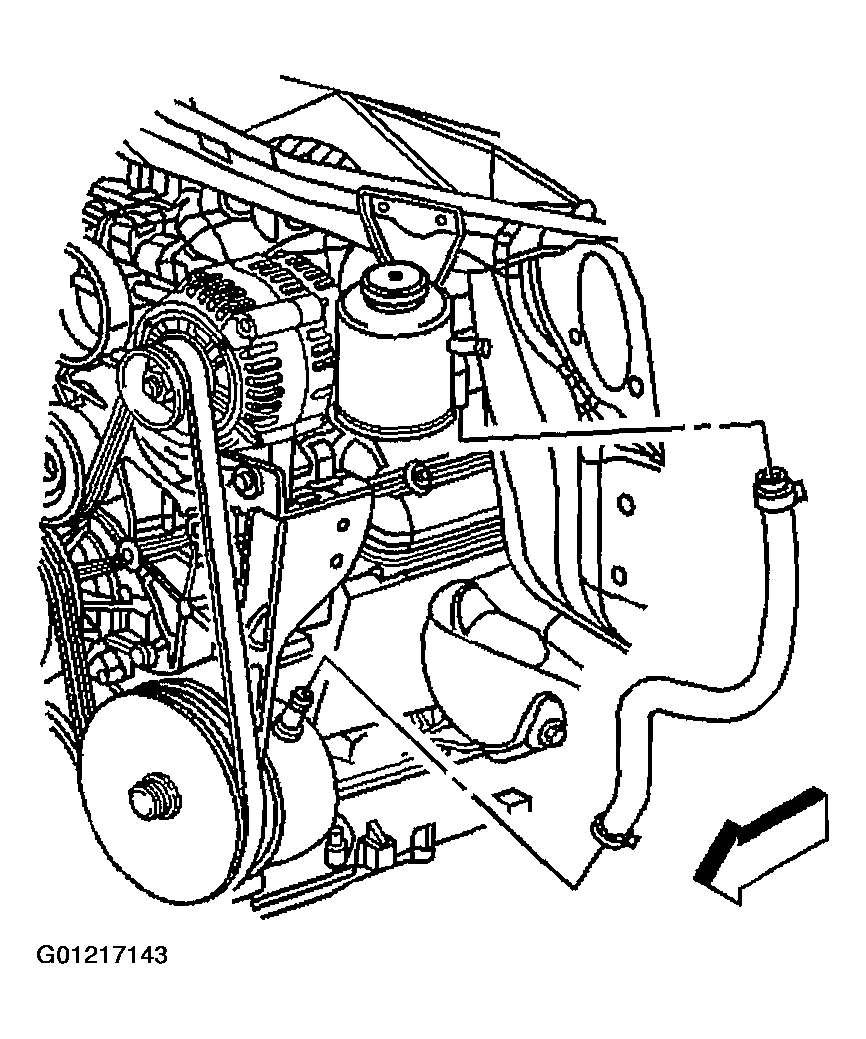

    Fig 1: Removing Power Steering Reservoir Outlet Hose
    G01217143Courtesy of GENERAL MOTORS CORP.
