Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the double lip seal (2) and the washer (3) with grease.
    Fig 1: Coating Double Lip & Washer With Grease
    G01217109Courtesy of GENERAL MOTORS CORP.
  2. Install the needle bearing (2) to the power steering gear housing (1) using J-6278  .

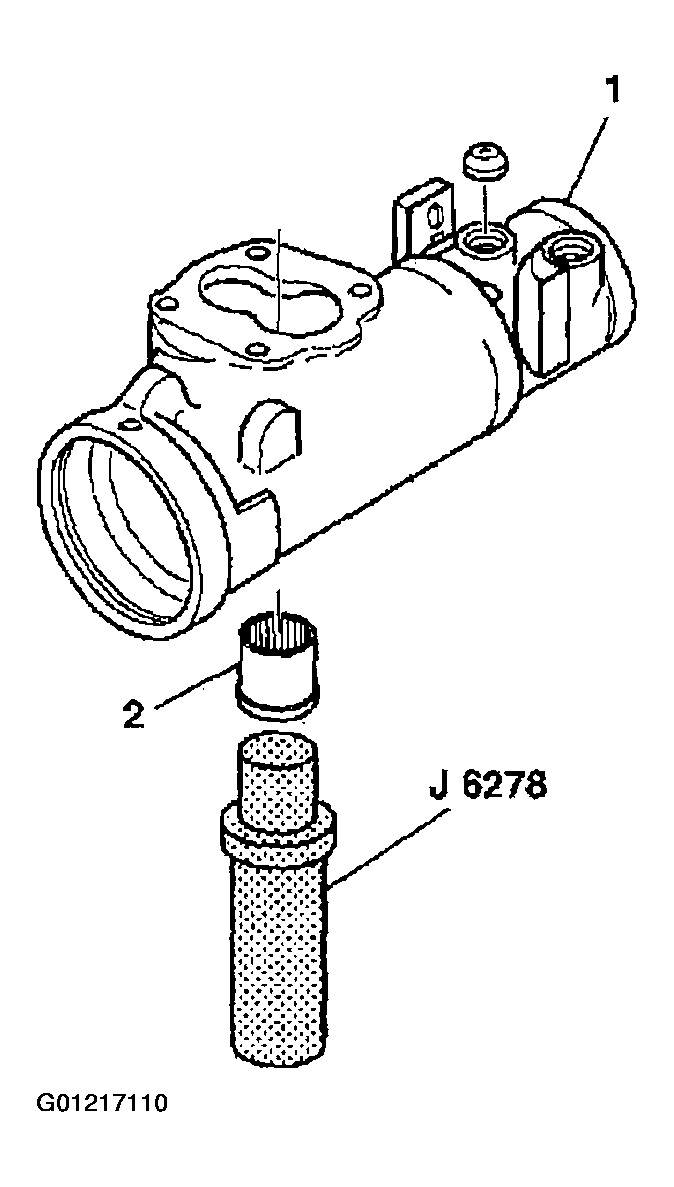

    Fig 2: Installing Needle Bearing Using J-6278
    G01217110Courtesy of GENERAL MOTORS CORP.
  3. Install the double lip seal (2).
  4. Install the backup washer (3).
    Fig 3: Installing Double Lip Seal & Backup Washer
    G01217111Courtesy of GENERAL MOTORS CORP.
  5. Install the retaining ring using the J-4245  .
  6. Install the pitman shaft and the side cover. Refer to Steering Gear Pitman Shaft and Housing Cover Replacement - Off Vehicle (700 Gear) .
  7. Instal the dust seal (1).
  8. Install the Pitman Arm. Refer to PITMAN ARM REPLACEMENT .
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  10. Lower the vehicle.
    Fig 4: Installing Retaining Ring Using J-4245
    G01217112Courtesy of GENERAL MOTORS CORP.
