Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire from the hoist.
  2. Raise and support the vehicle.
  3. If the secondary latch is engaged and the cable end is visible, perform the following procedure:
    1. Tighten the cable by turning the hoist shaft clockwise until you hear 2 clicks or feel it skip twice. You cannot overtighten the cable.
    2. Loosen the cable by turning the hoist shaft counterclockwise 3 or 4 turns.
    3. If the spare tire can be lowered, repeat steps 1 and 2 to see if the spare tire can be removed.

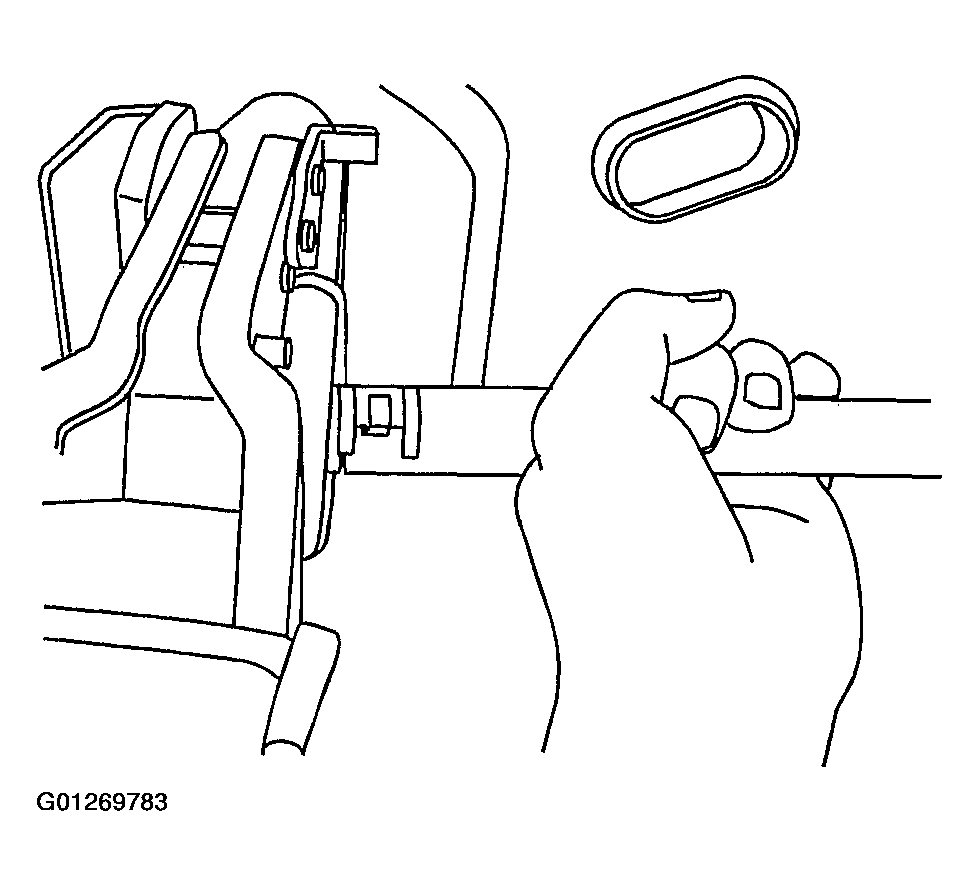

      Fig 1: Lowering Spare Tire
      G01269783Courtesy of GENERAL MOTORS CORP.
    4. If the spare tire cannot be lowered, turn the hoist shaft counterclockwise until approximately 15 cm (6 in) of cable is exposed.
    5. Raise and support the vehicle.
    6. Place a transmission jack, or equivalent, under the spare tire.
    7. Position the center of the transmission jack under the secondary latch release button at the center of the spare tire. Arrange the arms of the transmission jack so they will support the tire after it has been released.
    8. Raise the jack until the spare tire stops moving upward and is firmly held in place, releasing the secondary latch.
    9. Lower the tire. If the spare tire is hanging by the cable, turn the hoist shaft counterclockwise until the tire is low enough to remove.
  4. If the secondary latch is engaged and the cable end is not visible, perform the following procedure:
    1. Raise and support the vehicle.
    2. Place a transmission jack, or equivalent, under the spare tire.
    3. Position the center of the transmission jack under the secondary latch release button at the center of the spare tire. Arrange the arms of the transmission jack so they will support the tire after it has been released.
    4. Raise the jack until the spare tire stops moving upward and is firmly held in place, releasing the secondary latch.
    5. Lower the tire and remove it from the jack.
  5. Rotate the guide shaft to expose the retaining pin clip.
  6. Remove the guide shaft retaining pin clip.

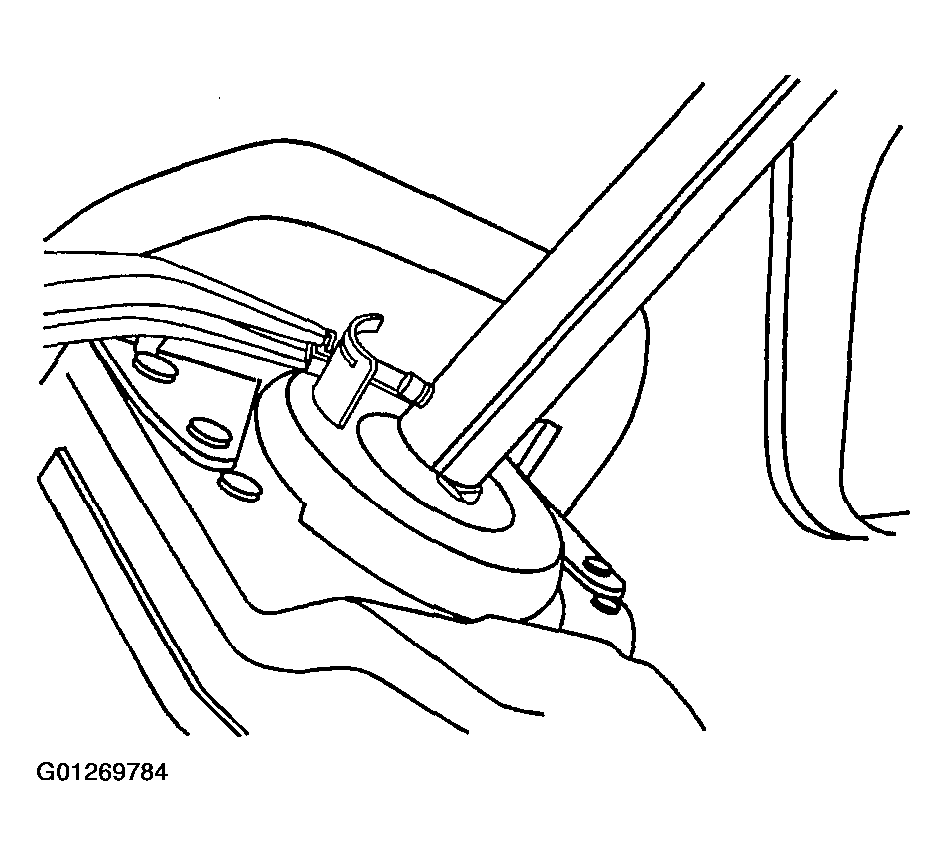

    Fig 2: Removing Guide Shaft Retaining Pin Clip
    G01269784Courtesy of GENERAL MOTORS CORP.
  7. Remove the guide shaft retaining pin.

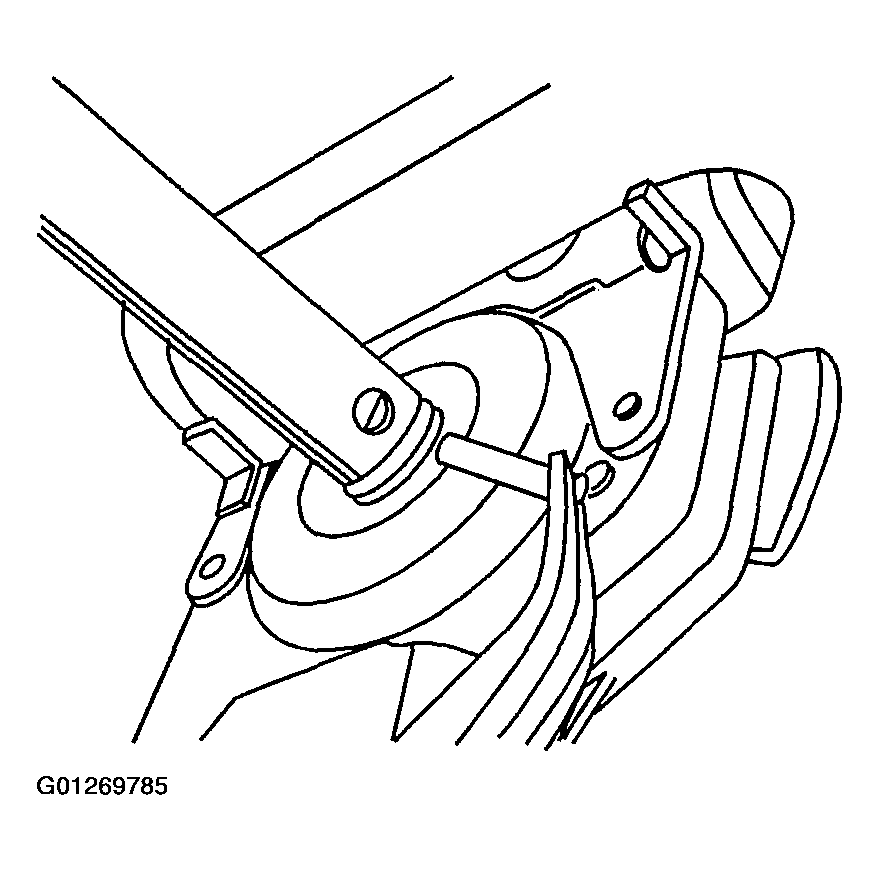

    Fig 3: Removing Guide Shaft Retaining Pin
    G01269785Courtesy of GENERAL MOTORS CORP.
  8. Separate the guide shaft from the hoist and remove it from the vehicle.

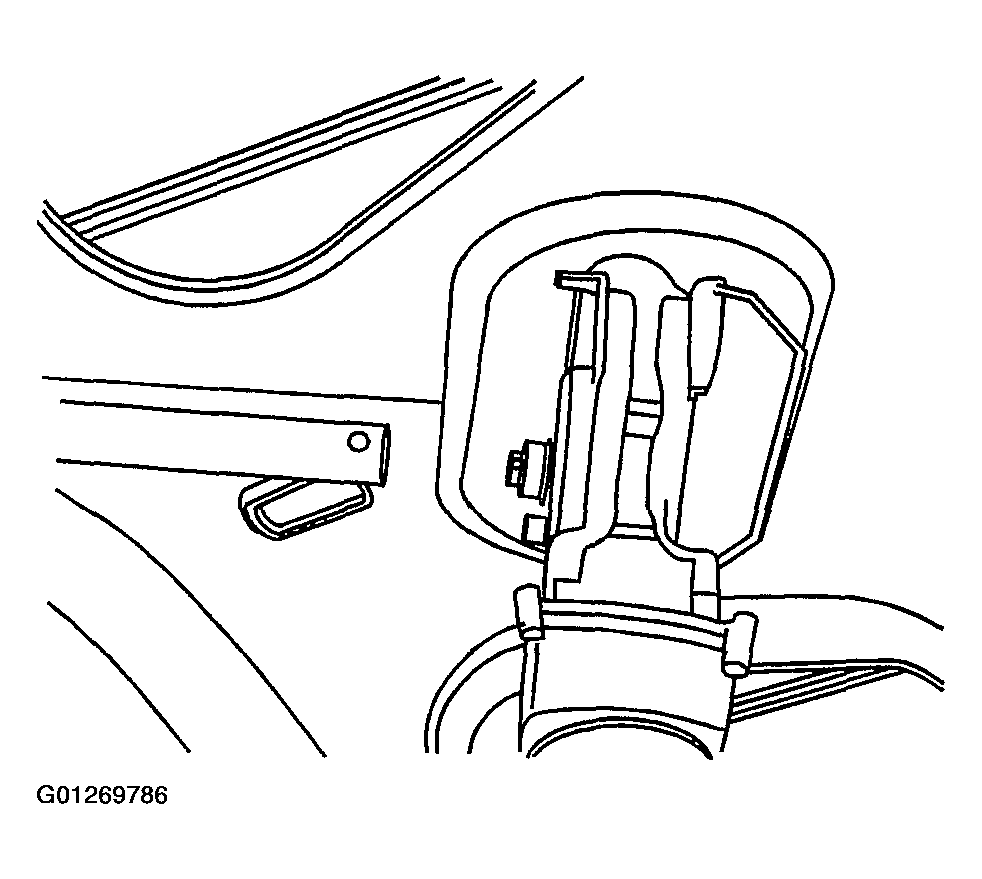

    Fig 4: Separating Guide Shaft From Hoist
    G01269786Courtesy of GENERAL MOTORS CORP.
  9. Remove the spare tire hoist retaining bolt.

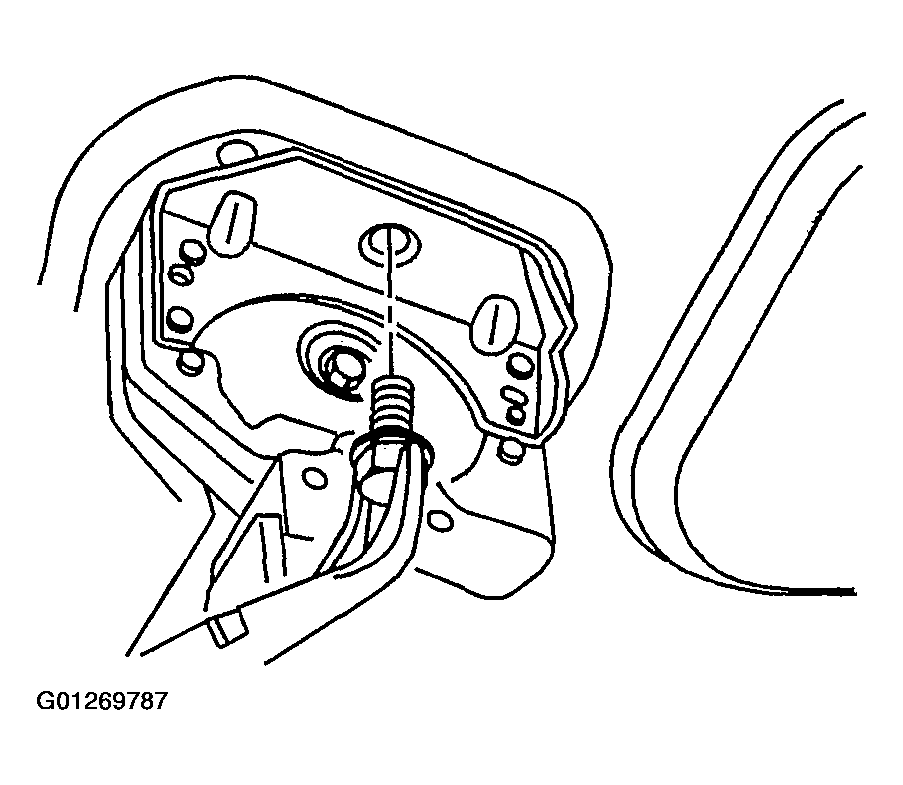

    Fig 5: Removing Spare Tire Hoist Retaining Bolt
    G01269787Courtesy of GENERAL MOTORS CORP.
  10. Remove the spare tire hoist from the vehicle.

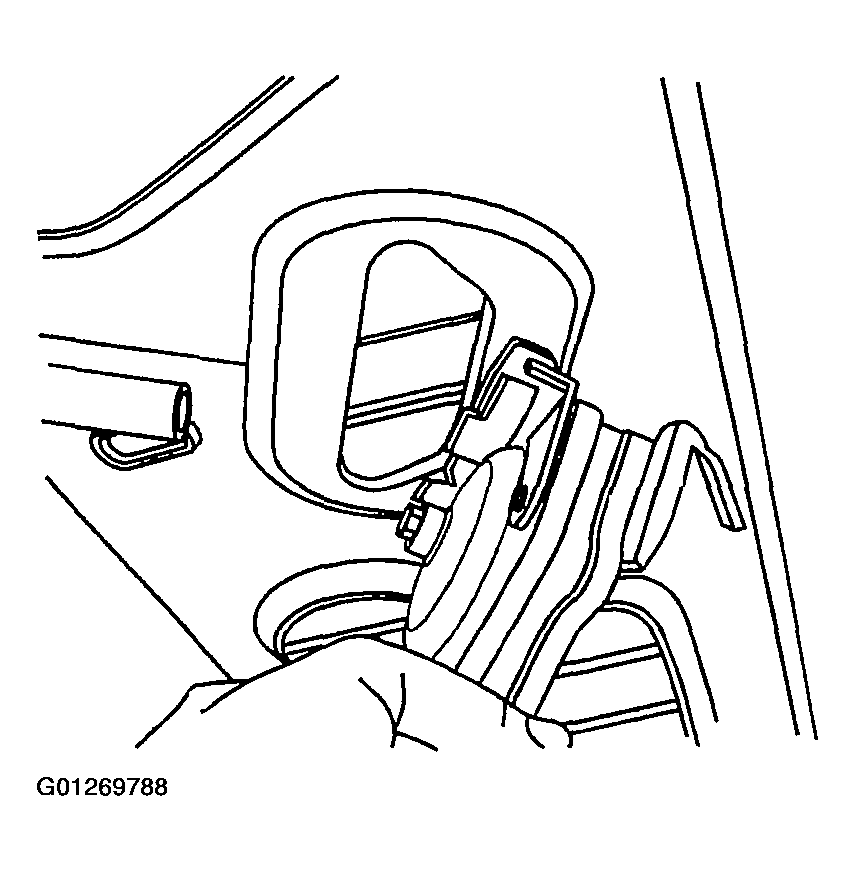

    Fig 6: Removing Spare Tire Hoist From Vehicle
    G01269788Courtesy of GENERAL MOTORS CORP.
