Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. Performing Solenoid Tests determines if there is a mechanical malfunction inside the BPMV.

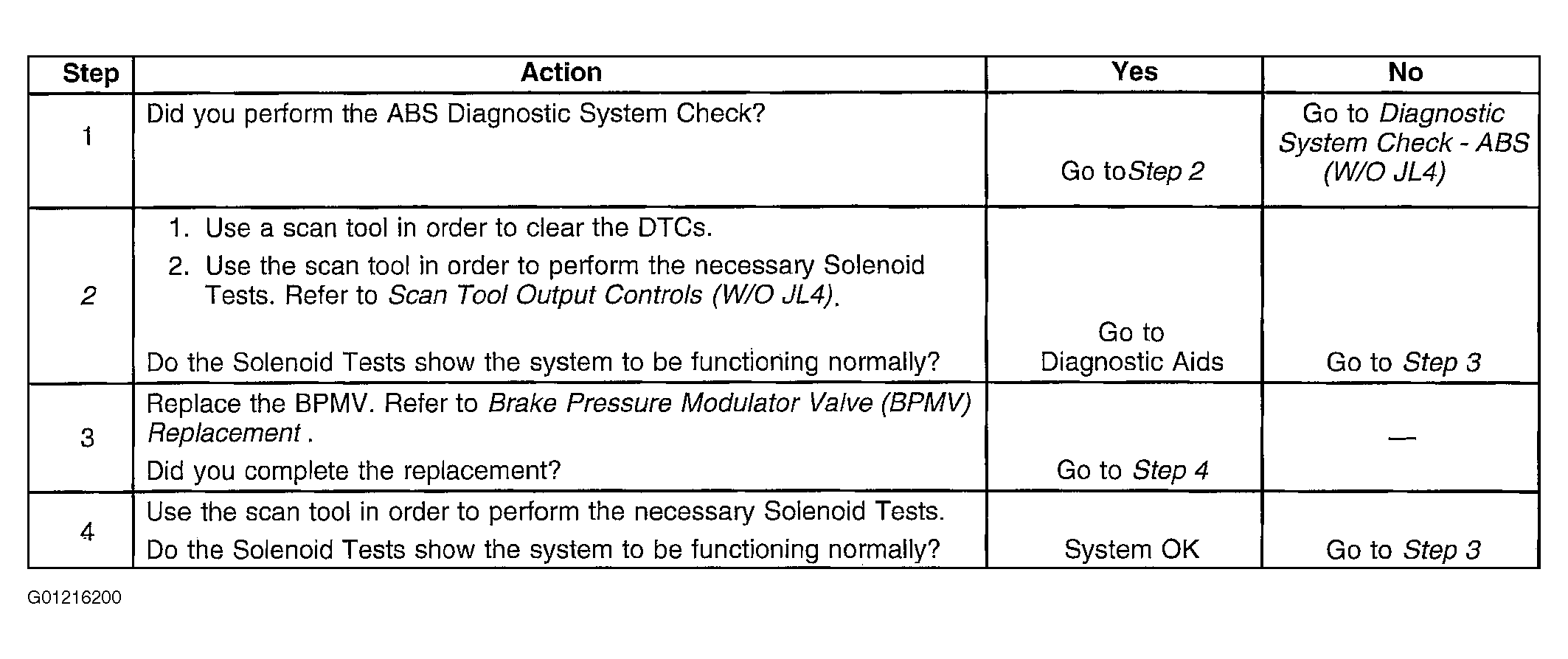

Fig 1: DTC C0220-C0229
G01216200Courtesy of GENERAL MOTORS CORP.
