Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. This step tests for a voltage signal from the PCM.
  2. This step tests for a missing or erratic vehicle speed signal from the PCM. An assistant may be required to perform this test.

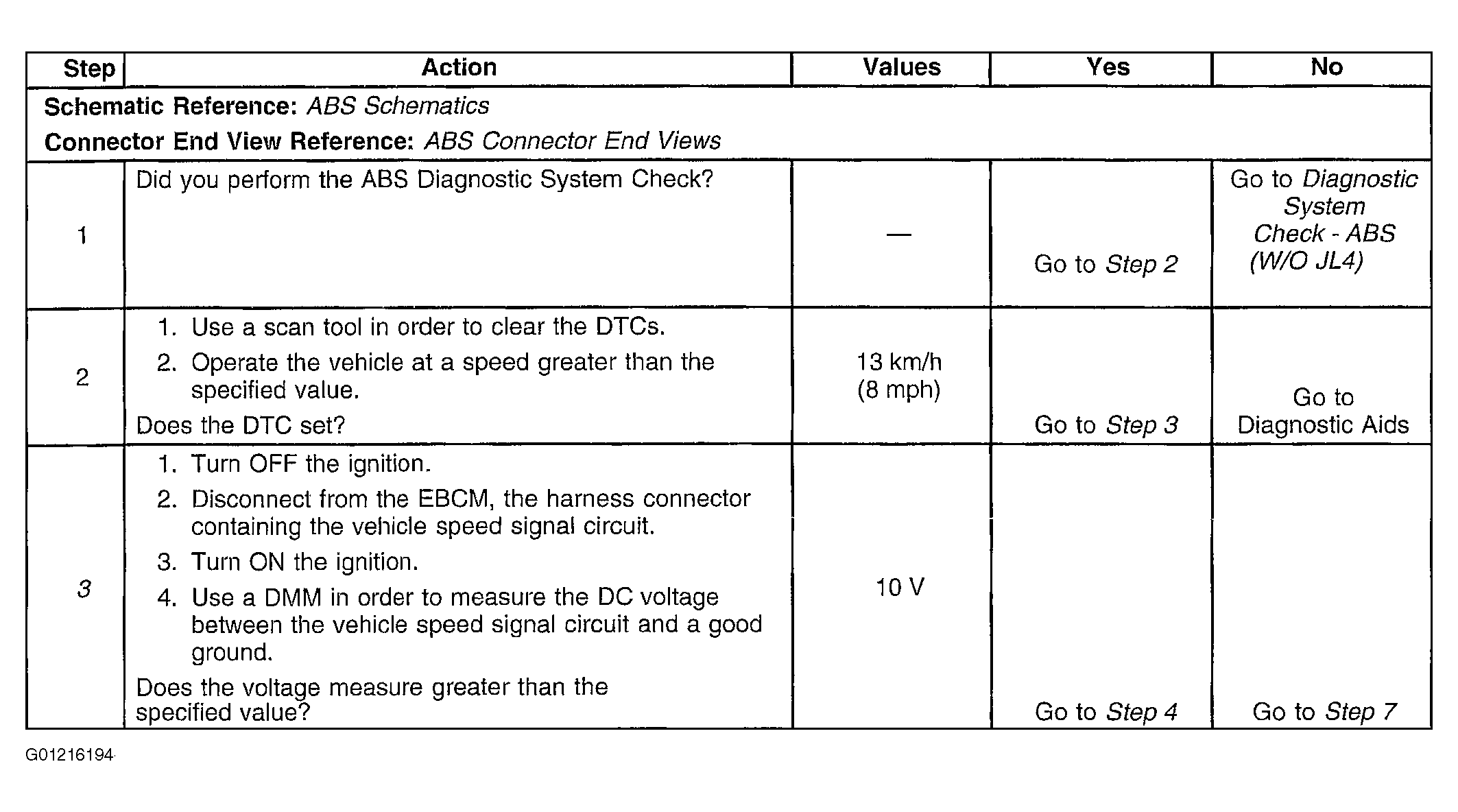

Fig 1: DTC C0055 or P0609 (1 Of 2)
G01216194Courtesy of GENERAL MOTORS CORP.

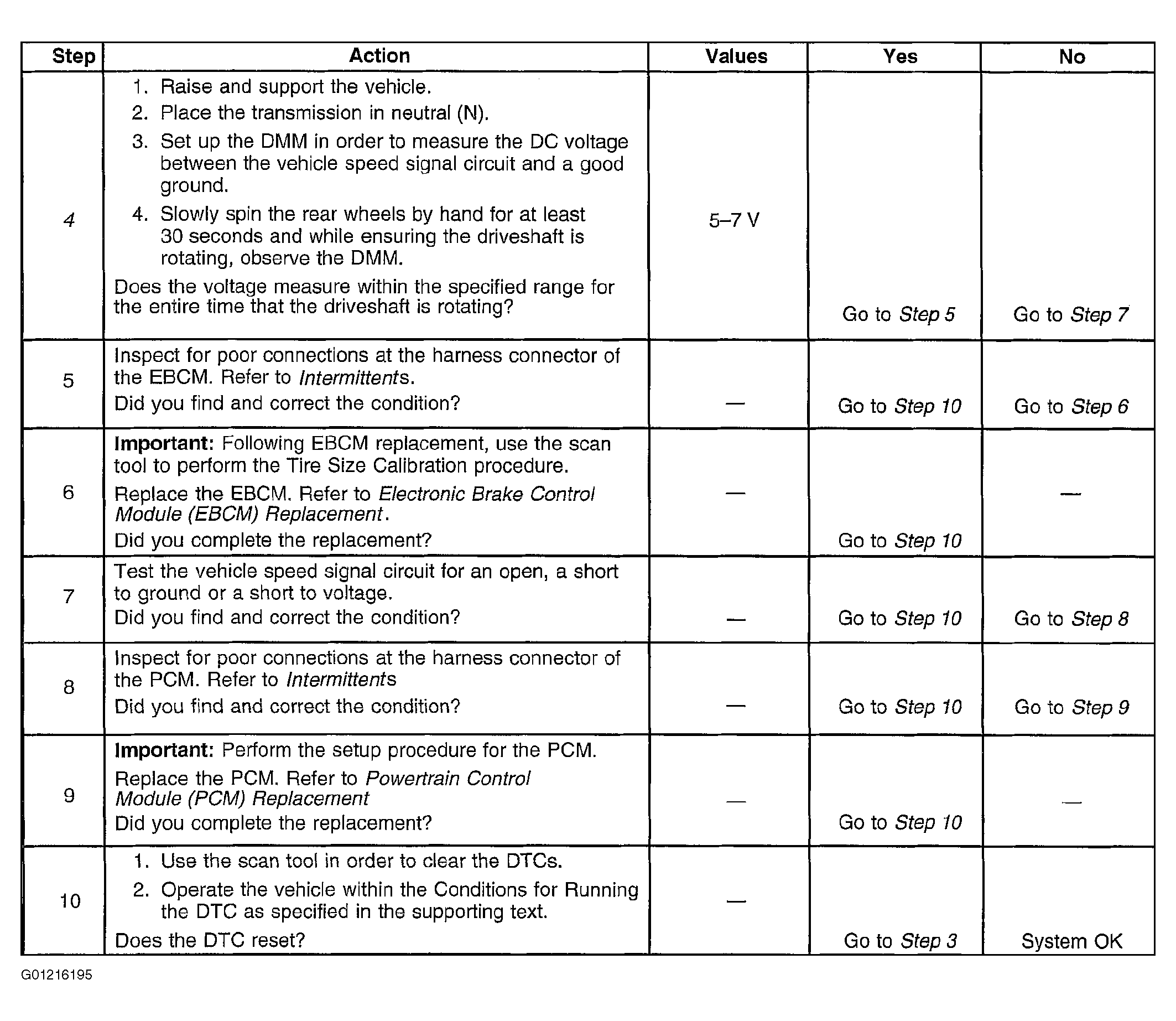

Fig 2: DTC C0055 or P0609 (2 Of 2)
G01216195Courtesy of GENERAL MOTORS CORP.
