Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Support the vehicle with suitable safety stands.
  3. Lift upward on the front side of the bumper.
  4. Slide the rear axle bumper forward in order to free the bumper from the bracket.

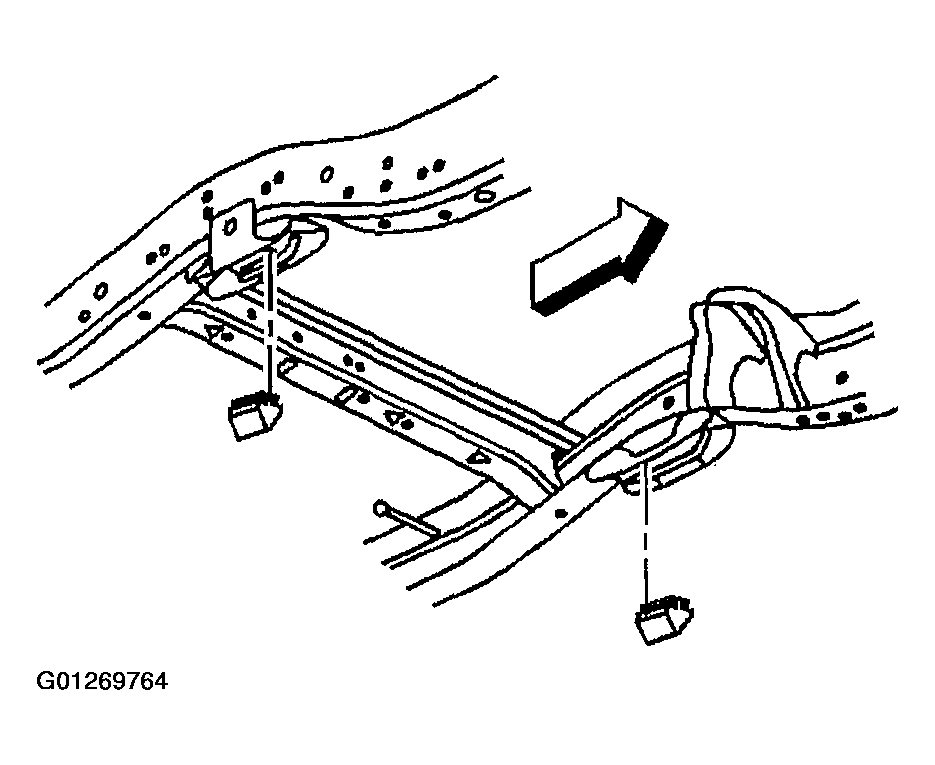

    Fig 1: Removing Rear Axle Bumper From Bracket
    G01269764Courtesy of GENERAL MOTORS CORP.
