Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the wheel stud from the hub flange using the J 43631  .
  4. Remove the wheel stud from the hub flange.

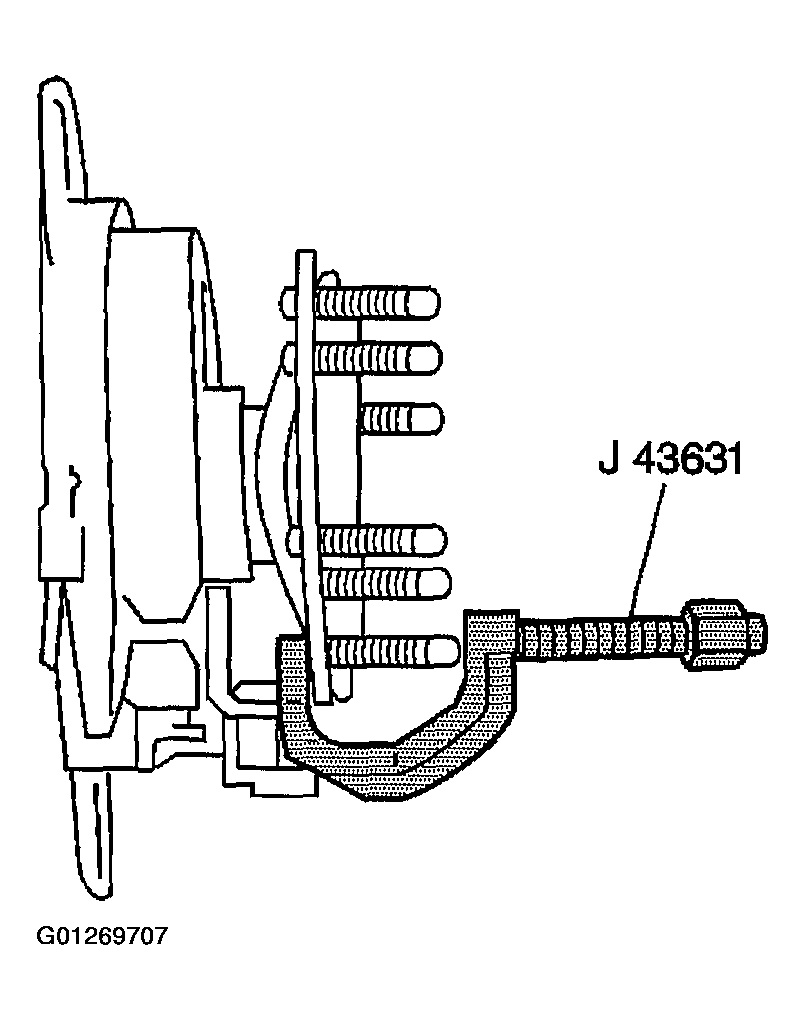

    Fig 1: Removing the wheel stud from the hub flange
    G01269707Courtesy of GENERAL MOTORS CORP.
