Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Never place vehicle on the ground with the halfshaft removed or the halfshaft nut torqued improperly. Otherwise, bearing seals may become dislodged causing premature wear and/or damage to the hub and bearing assembly.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the rotor. Refer BRAKE ROTORS .
  4. Remove the wheel speed sensor mounting bolt.
  5. Remove the wheel speed sensor from the wheel hub and bearing.
  6. Remove the wheel hub and bearing mounting bolts.

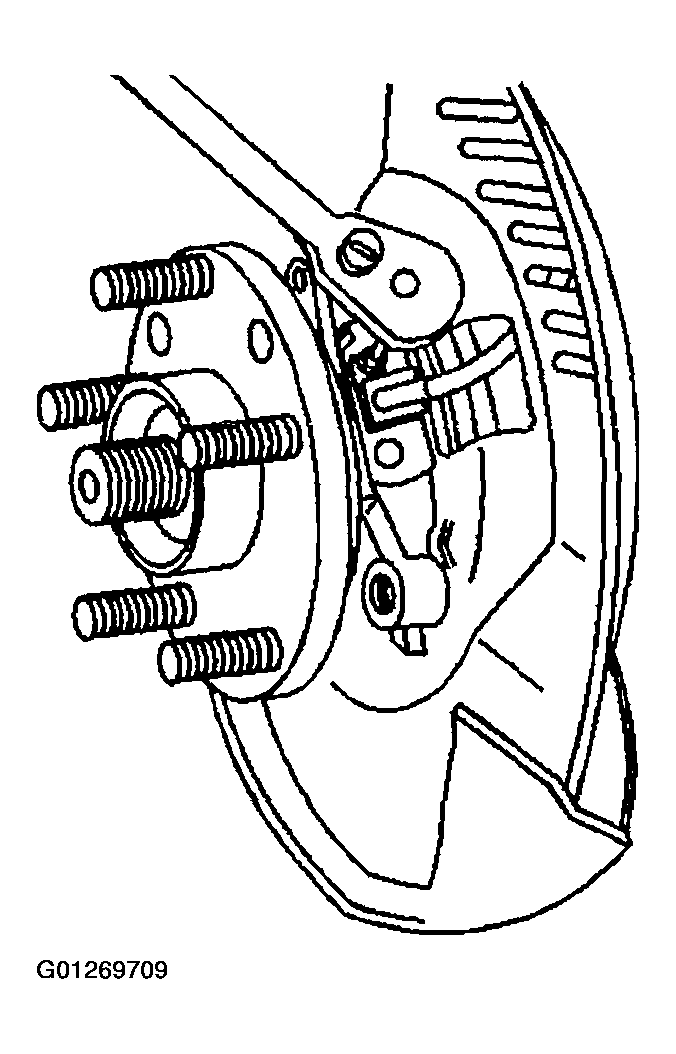

    Fig 1: Removing the wheel speed sensor mounting bolt
    G01269709Courtesy of GENERAL MOTORS CORP.

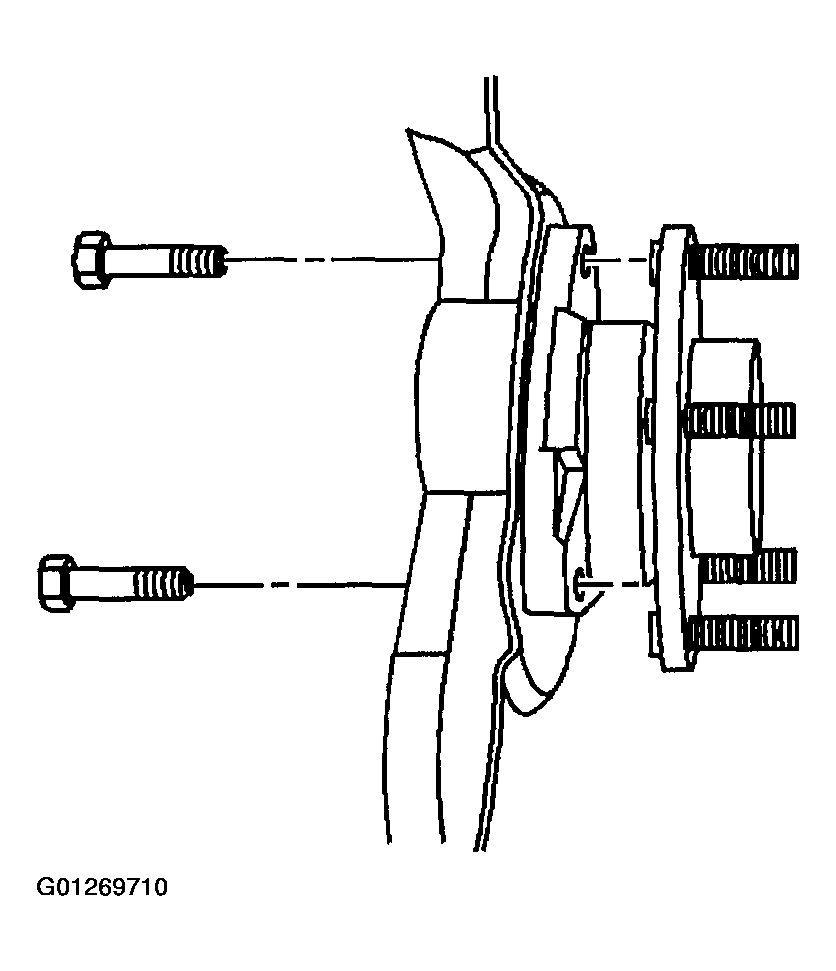

    Fig 2: Removing the wheel hub and bearing mounting bolts
    G01269710Courtesy of GENERAL MOTORS CORP.
  7. Remove the wheel hub and bearing and splash shield from the steering knuckle.

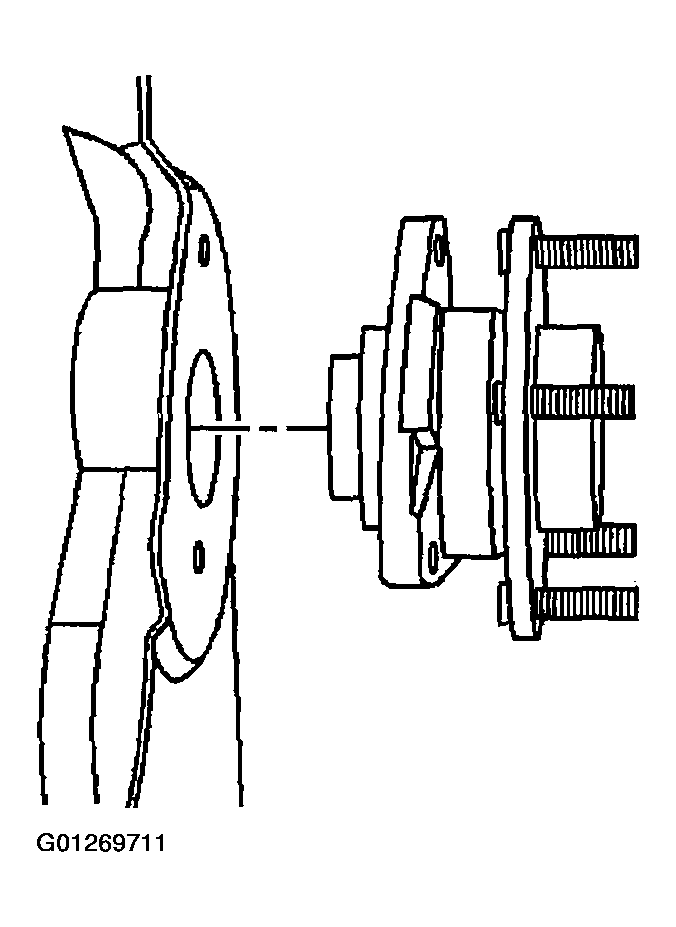

    Fig 3: Removing the wheel hub and bearing and splash shield from the steering knuckle
    G01269711Courtesy of GENERAL MOTORS CORP.
