Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Never place vehicle on the ground with the halfshaft removed or the halfshaft nut torqued improperly. Otherwise, bearing seals may become dislodged causing premature wear and/or damage to the hub and bearing assembly.

Raise and support the vehicle.
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
Remove the rotor. Refer BRAKE ROTORS .
Remove the front axle hub cap.
Remove the wheel driveshaft retaining nut and washer from the wheel driveshaft.

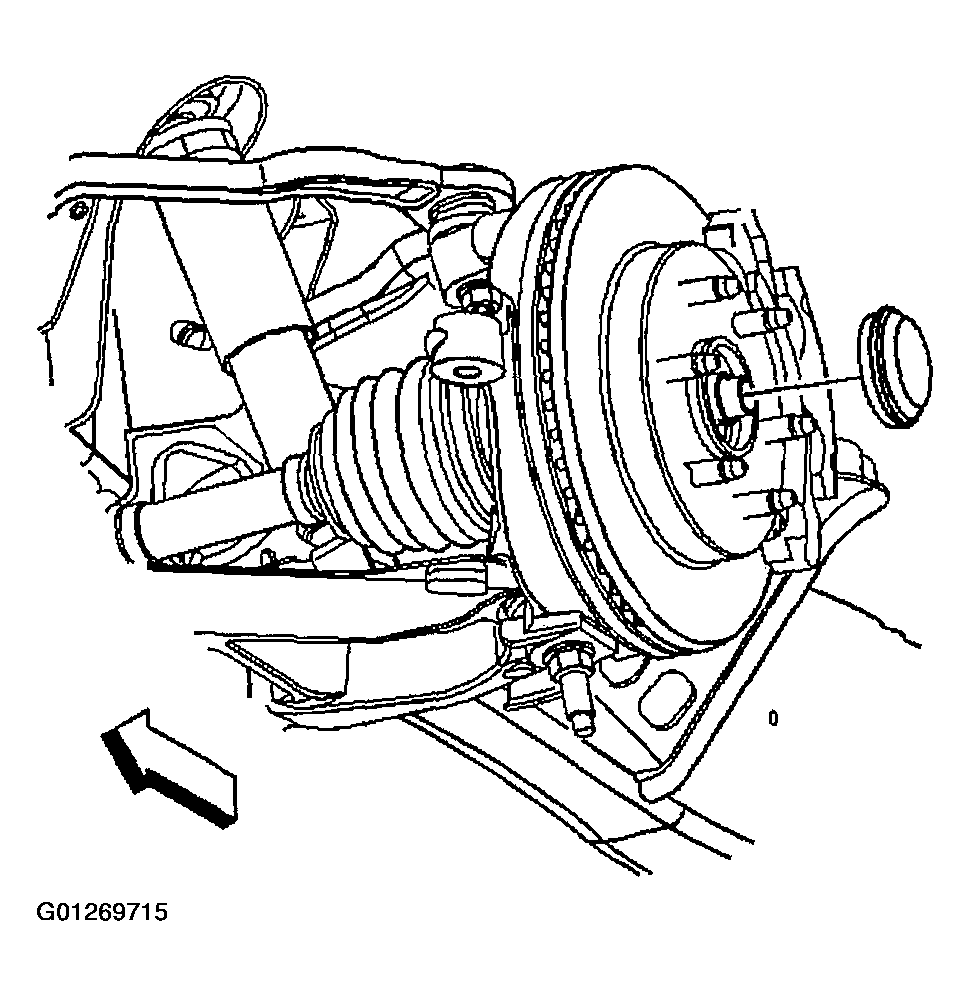

Fig 1: Removing the front axle hub cap
Courtesy of GENERAL MOTORS CORP.

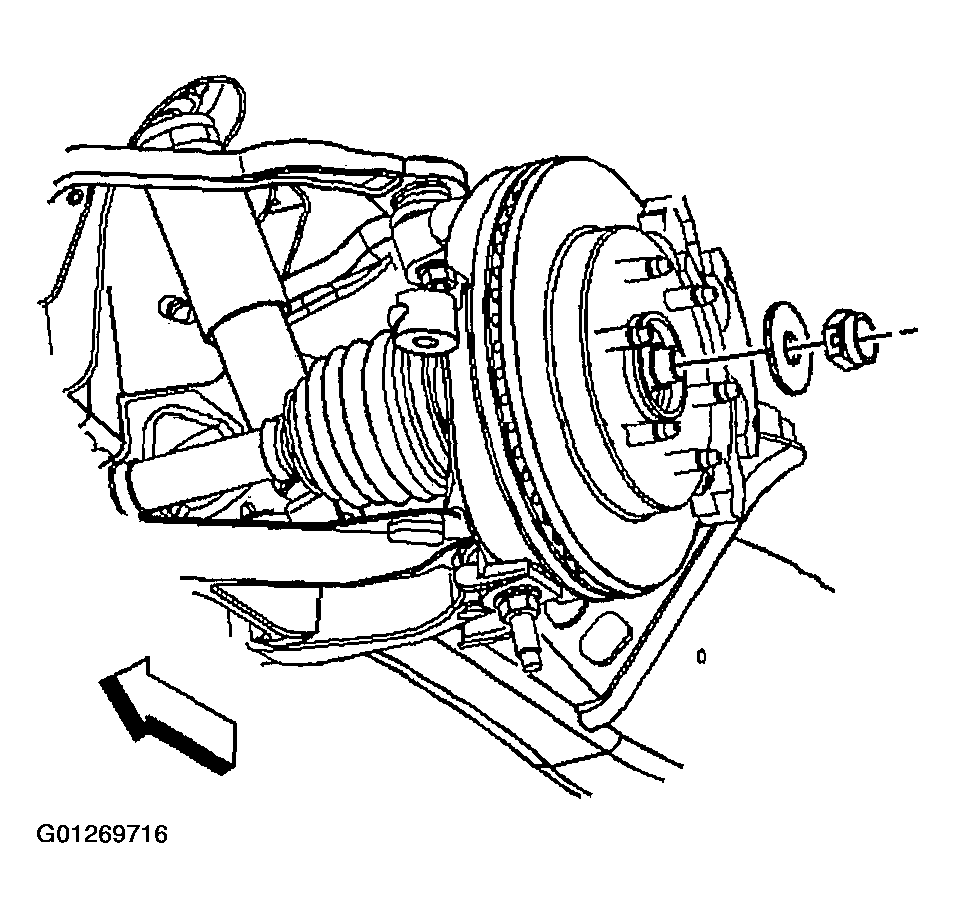

Fig 2: Removing the wheel driveshaft retaining nut and washer from the wheel driveshaft
Courtesy of GENERAL MOTORS CORP.
Using the J 45859 or equivalent, disengage the wheel driveshaft from the hub and bearing.

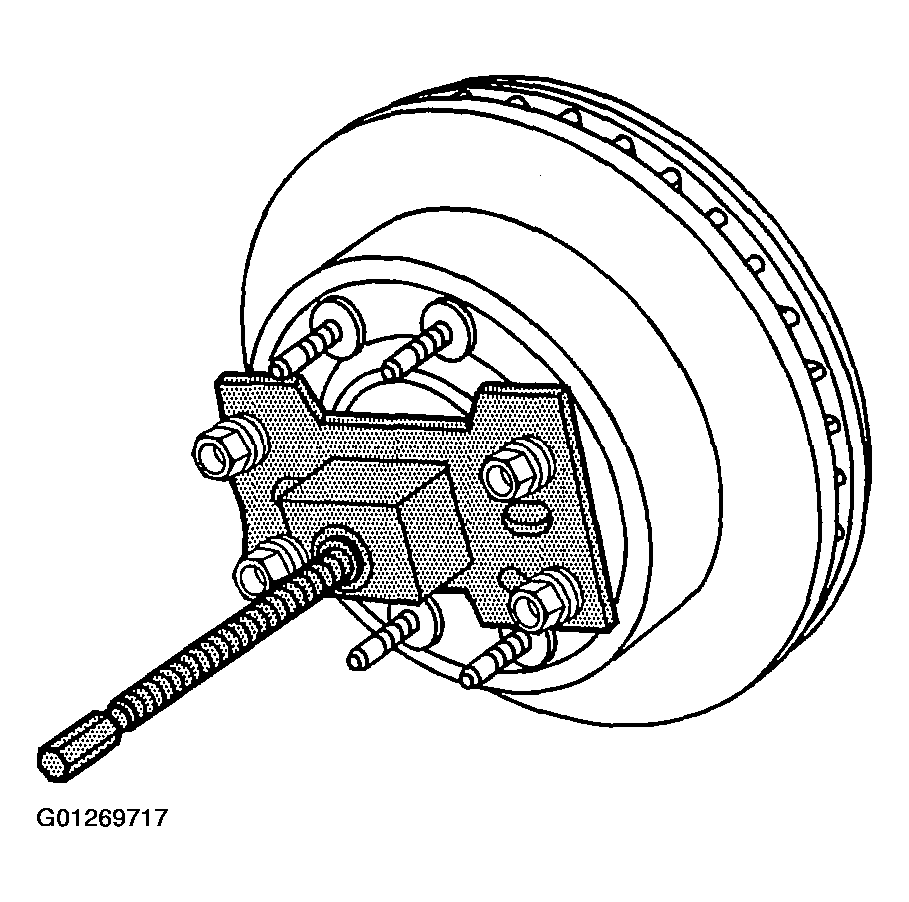

Fig 3: Disengaging the wheel driveshaft from the hub and bearing
Courtesy of GENERAL MOTORS CORP.
Remove the wheel speed sensor mounting bolt from the wheel hub and bearing.
Remove the wheel speed sensor from the wheel hub and bearing.

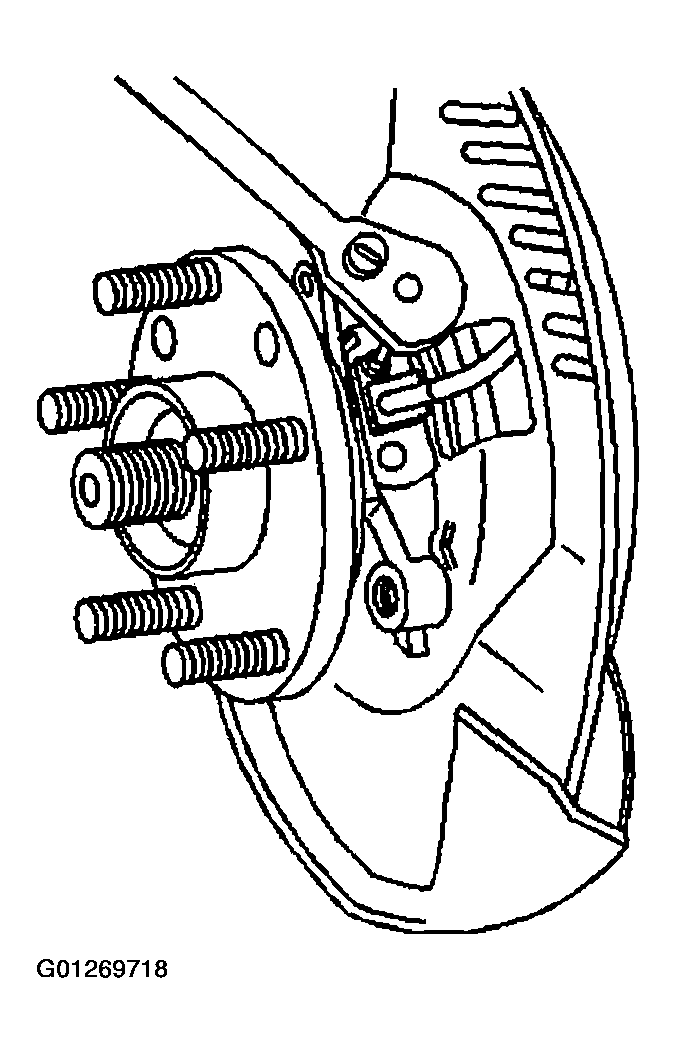

Fig 4: Removing the wheel speed sensor mounting bolt from the wheel hub and bearing
Courtesy of GENERAL MOTORS CORP.
Remove the wheel hub and bearing mounting bolts.

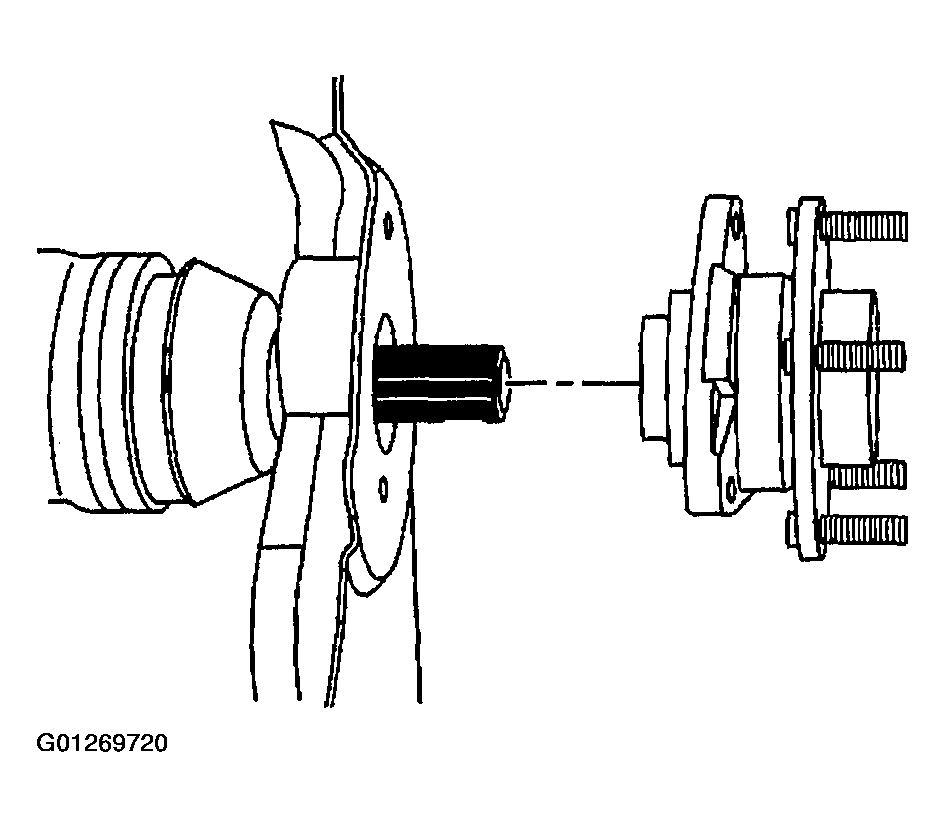

Fig 5: Removing the wheel hub and bearing mounting bolts
Courtesy of GENERAL MOTORS CORP.
Remove the wheel hub and bearing and splash shield from the steering knuckle.

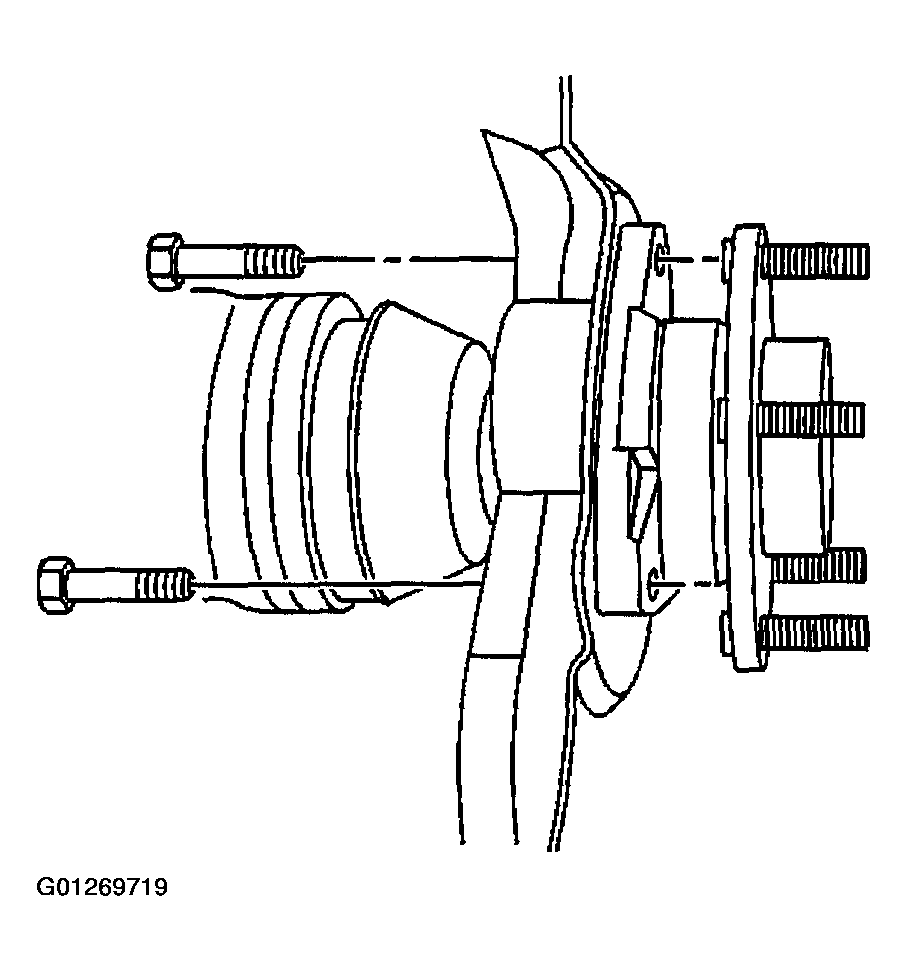

Fig 6: Removing the wheel hub and bearing and splash shield from the steering knuckle
Courtesy of GENERAL MOTORS CORP.
