Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
Remove the wheel hub and bearing. Refer to Wheel Hub, Bearing, and Seal Replacement (RWD) or Wheel Hub, Bearing, and Seal Replacement (4WD) .
Remove the outer tie rod to steering knuckle retaining nut.
Disconnect the outer tie rod from the steering knuckle using J 24319-B .

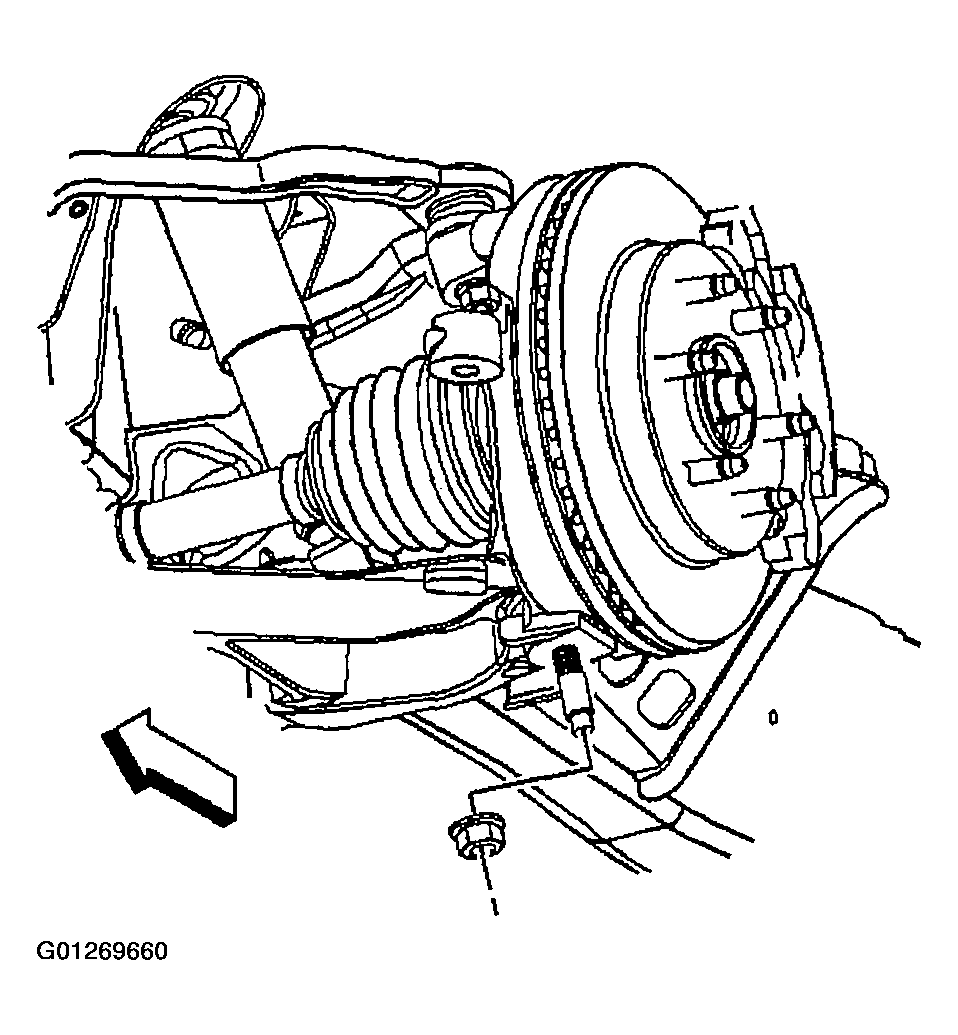

Fig 1: Removing The Outer Tie Rod To Steering Knuckle Retaining Nut
Courtesy of GENERAL MOTORS CORP.

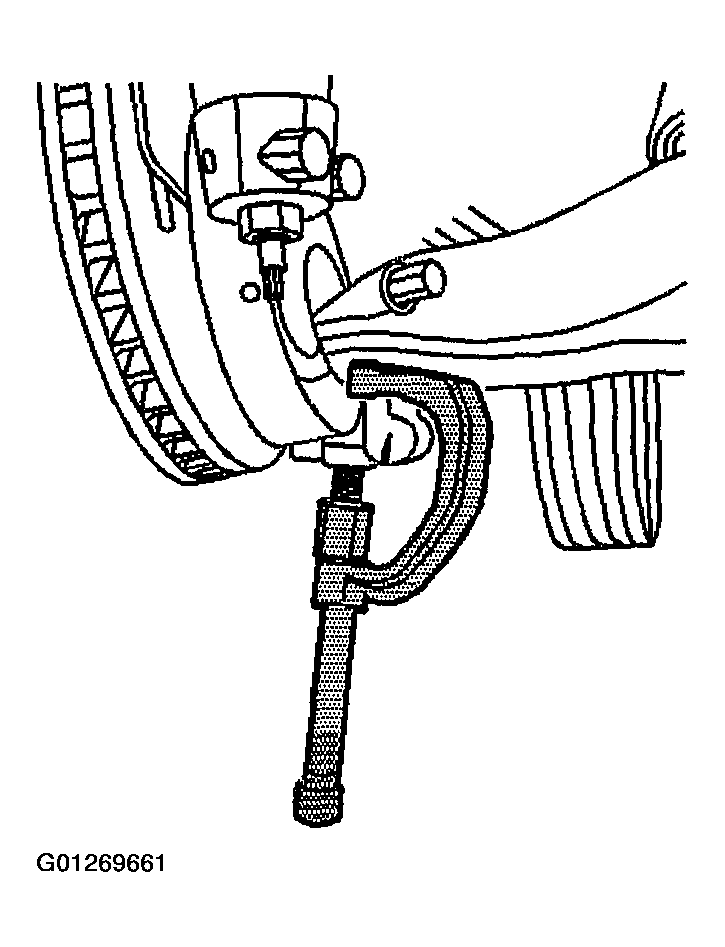

Fig 2: Disconnecting Outer Tie Rod From The Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the brake hose bracket retaining bolt from the steering knuckle.

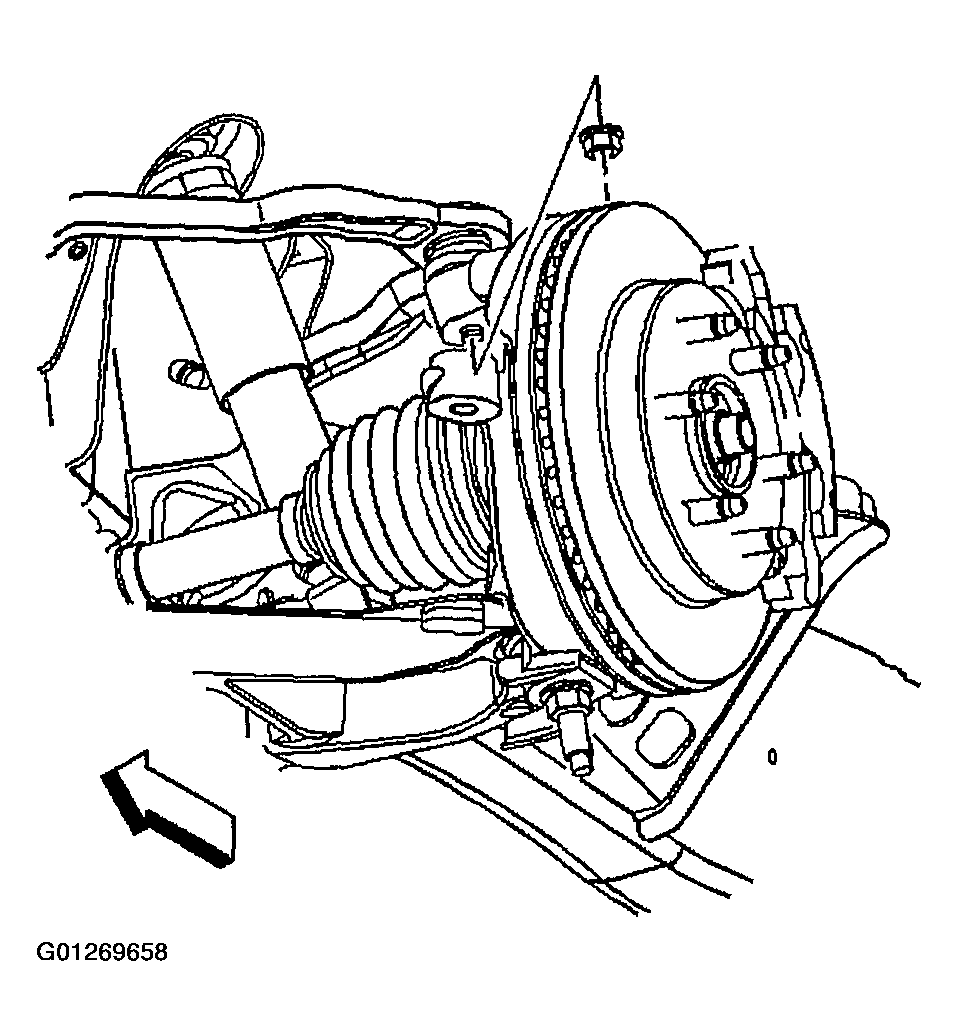

Fig 3: Removing Brake Hose Bracket Retaining Bolt From The Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Support the lower control arm with a suitable jack.
Remove the upper ball joint retaining nut.

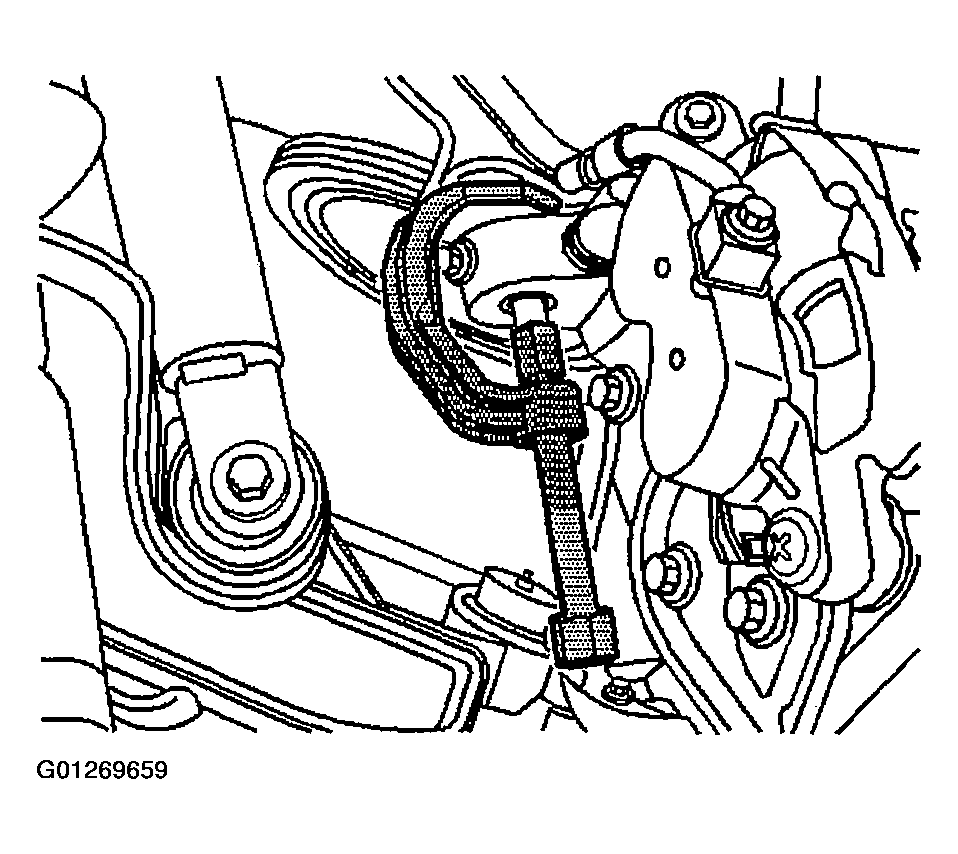

Fig 4: Removing The Upper Ball Joint Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Disconnect the upper ball joint from the steering knuckle using the J 43631 and J 45851 .

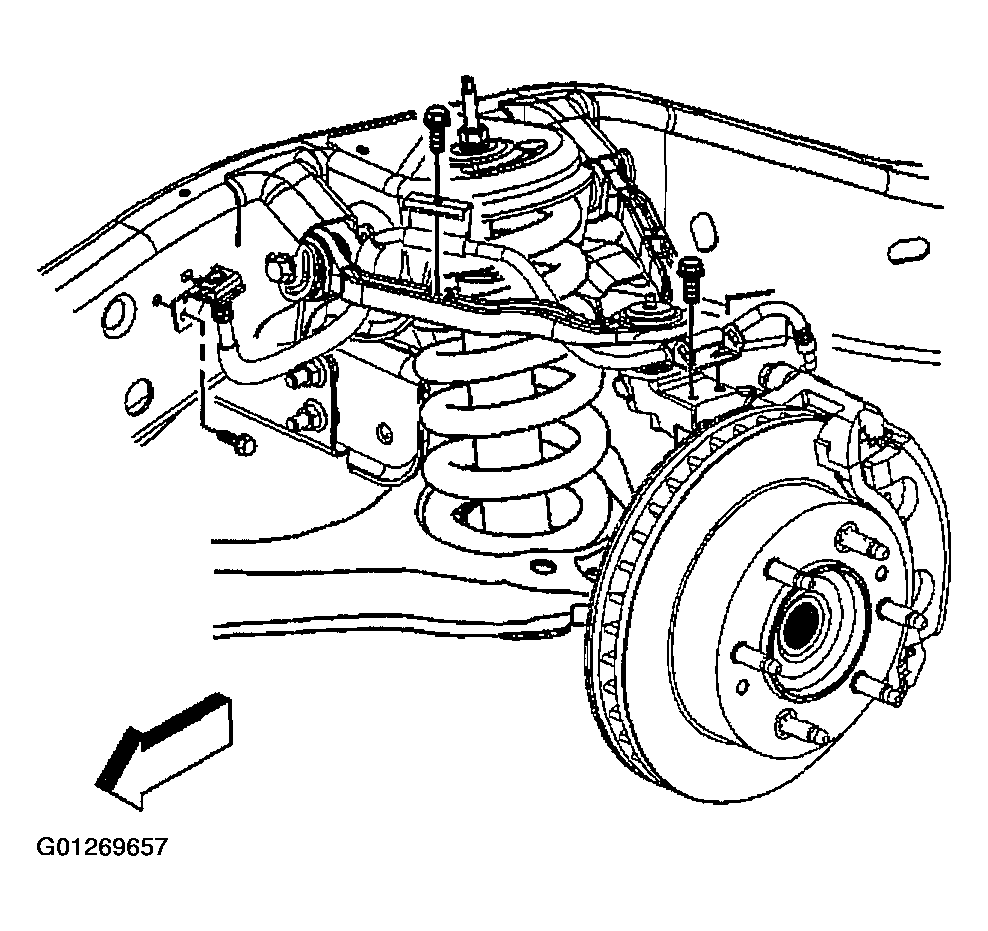

Fig 5: Disconnecting The Upper Ball Joint From The Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the lower ball joint retaining nut.

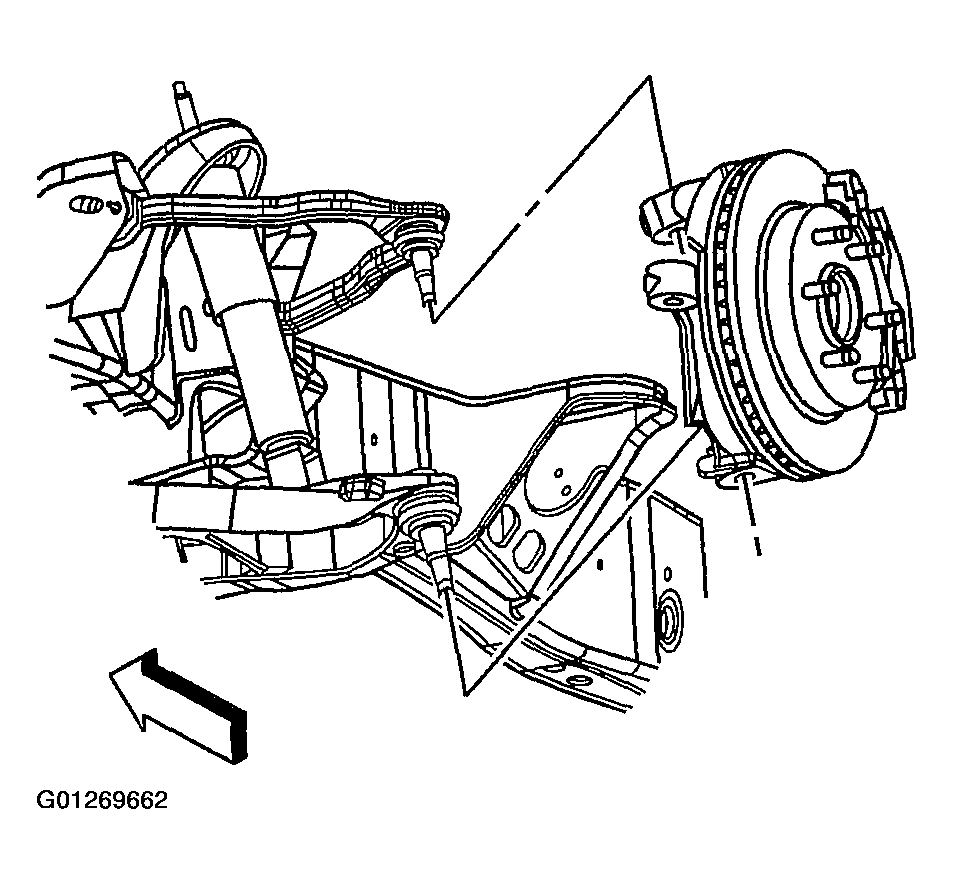

Fig 6: Removing The Lower Ball Joint Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Disconnect the lower ball joint from the steering knuckle using the J 43631 and J 45851 .

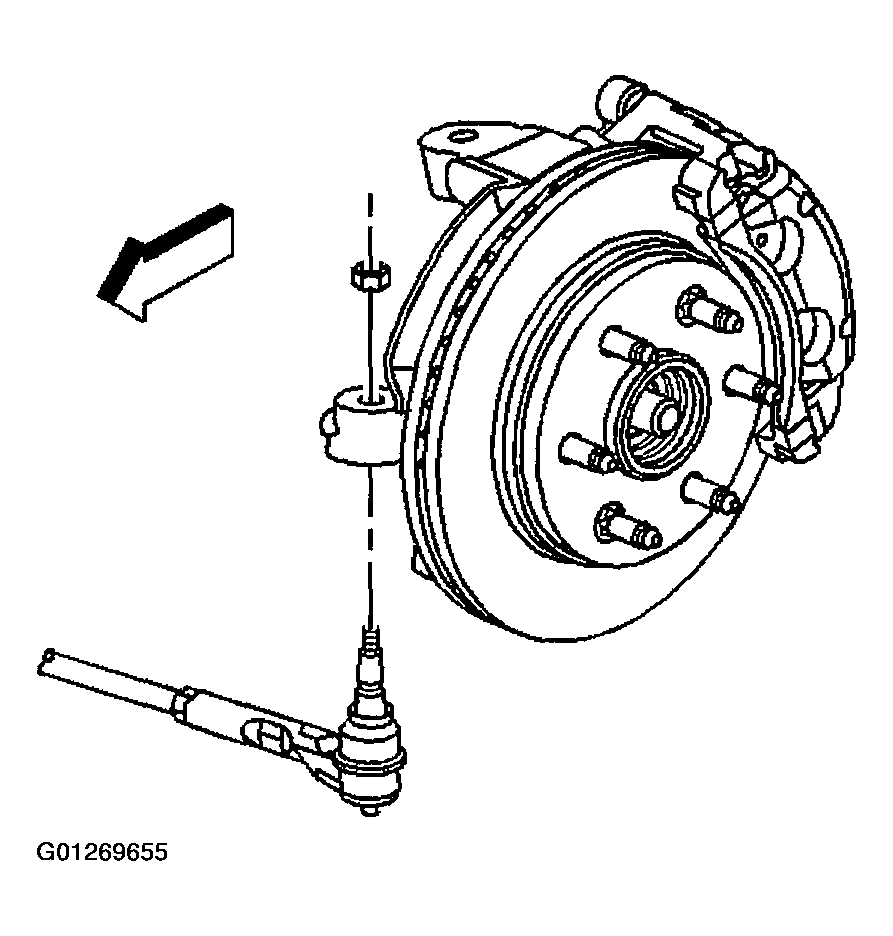

Fig 7: Disconnecting The Lower Ball Joint From The Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the steering knuckle.

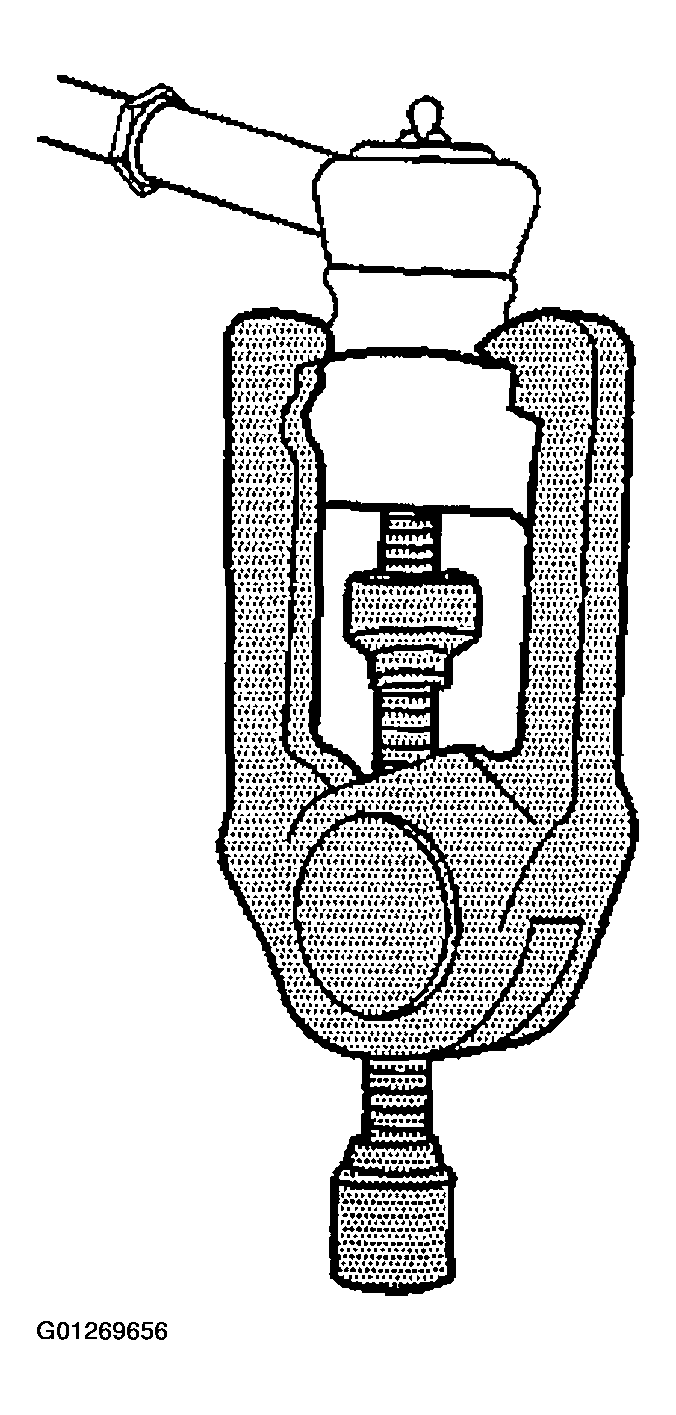

Fig 8: Removing The Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
