Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement  .
  4. Remove the stabilizer shaft insulator clamps mounting bolts (4) (15 and 25 series).
  5. Remove the stabilizer shaft clamps (3) (1500 and 2500 series w/7300 GVW).
  6. Remove the stabilizer shaft (5) (1500 and 2500 series w/7300 GVW).
  7. Remove the stabilizer shaft insulators (2) (1500 and 2500 series w/7300 GVW).

    Important:  The stabilizer shaft insulator stud may come out of the frame when removing stabilizer shaft insulator mounting nuts.

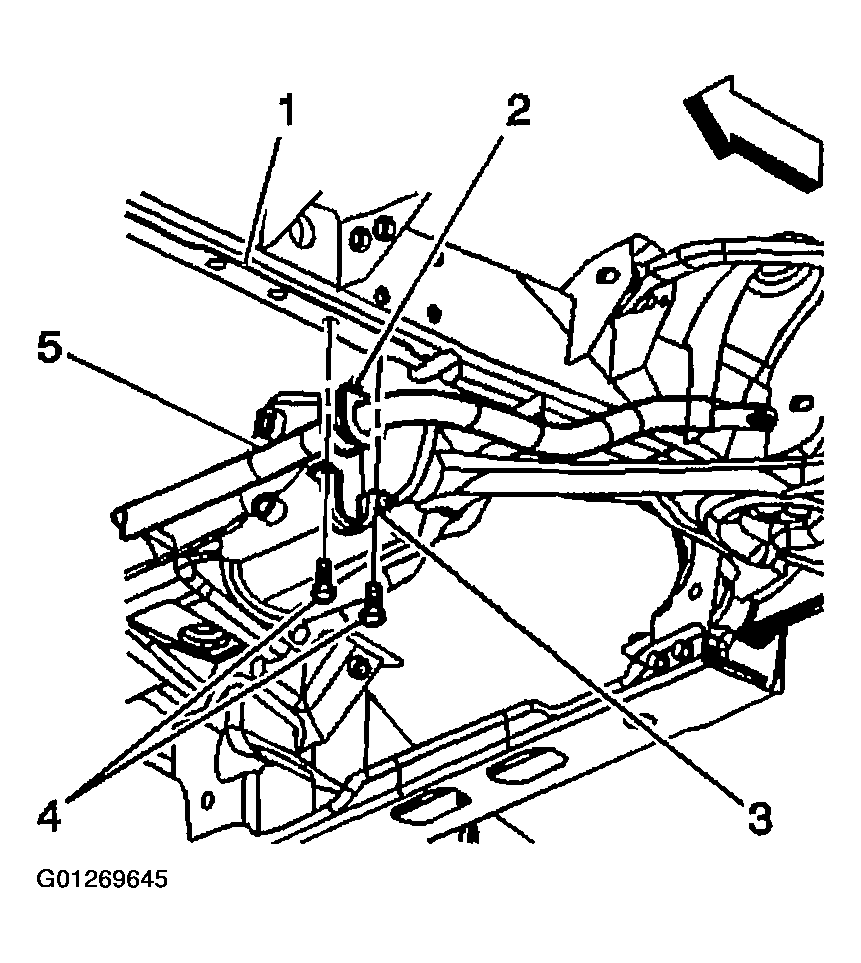

    Fig 1: Removing Stabilizer Shaft Insulator Clamps & Mounting Bolts (1500 and 2500 series w/7300 GVW)
    G01269645Courtesy of GENERAL MOTORS CORP.
  8. Remove the stabilizer shaft insulator clamps mounting nuts (3) and/or studs (2500 series w/8500 and 8600 GVW and 3500 series).
  9. Remove the stabilizer shaft clamps (4) (2500 series w/8500 and 8600 GVW and 3500 series).
  10. Remove the stabilizer shaft (2) (2500 series w/8500 and 8600 GVW and 3500 series).
  11. Remove the stabilizer shaft insulators (5) (2500 series w/8500 and 8600 GVW and 3500 series).
  12. Inspect all of the parts for wear and damage.

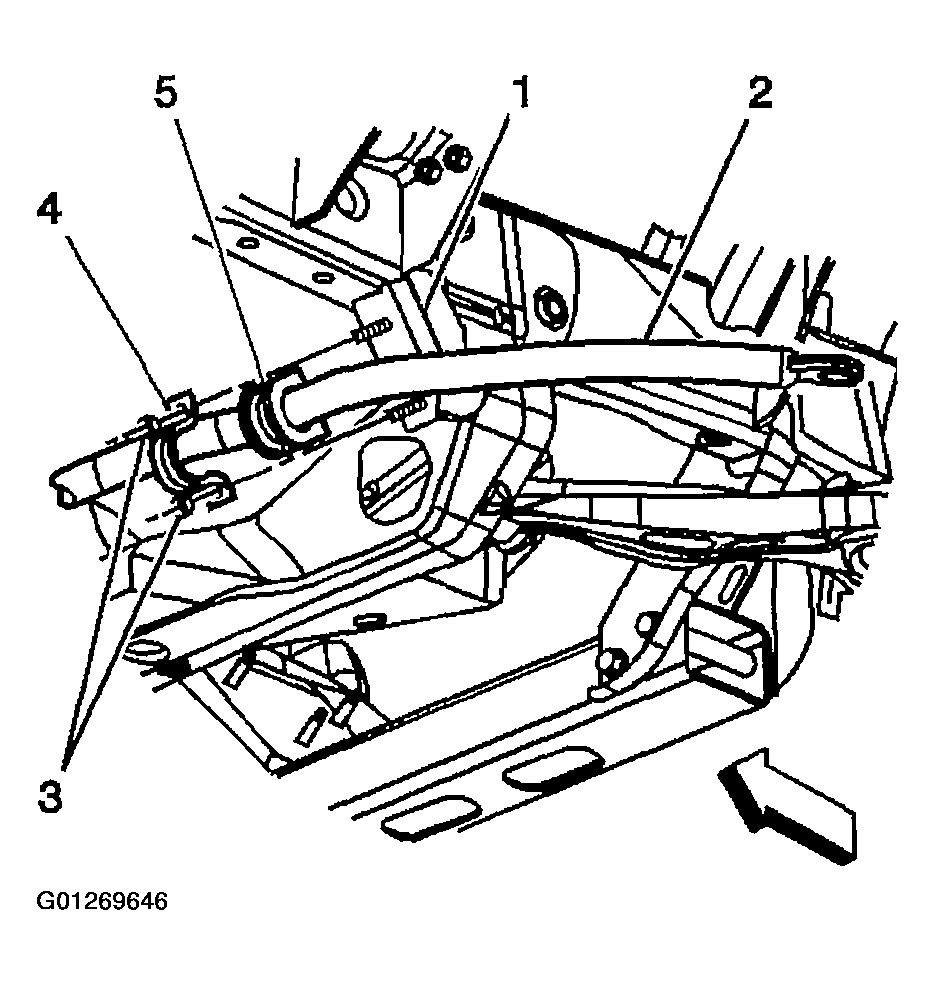

    Fig 2: Removing Stabilizer Shaft Insulator Clamps & Mounting Bolts (2500 series w/8500 and 8600 GVW and 3500 series)
    G01269646Courtesy of GENERAL MOTORS CORP.
