Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft nut from the link bolt.
  3. Remove the stabilizer shaft link bolt.
  4. Remove the stabilizer shaft link insulators and spacers.
  5. Inspect all of the parts for wear and damage.

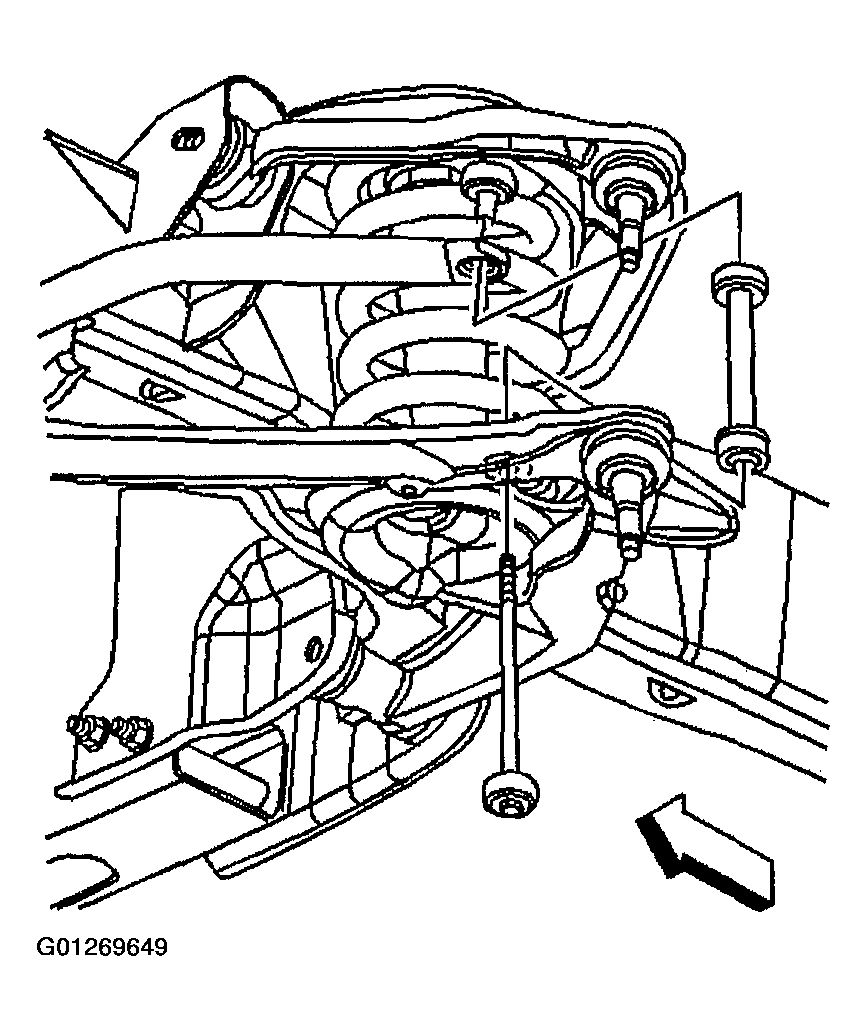

    Fig 1: Removing Stabilizer Shaft Nut, Link Bolt, Insulators and Spacers
    G01269649Courtesy of GENERAL MOTORS CORP.
