Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft insulator clamps mounting bolts (4) (1500 and 2500 series w/7300 GVW).
  3. Remove the stabilizer shaft insulator clamps (3) from the stabilizer shaft insulator (2) (1500 and 2500 series w/7300 GVW).
  4. Lower the stabilizer shaft (5) and remove the stabilizer shaft insulator (2) (1500 and 2500 series w/7300 GVW).

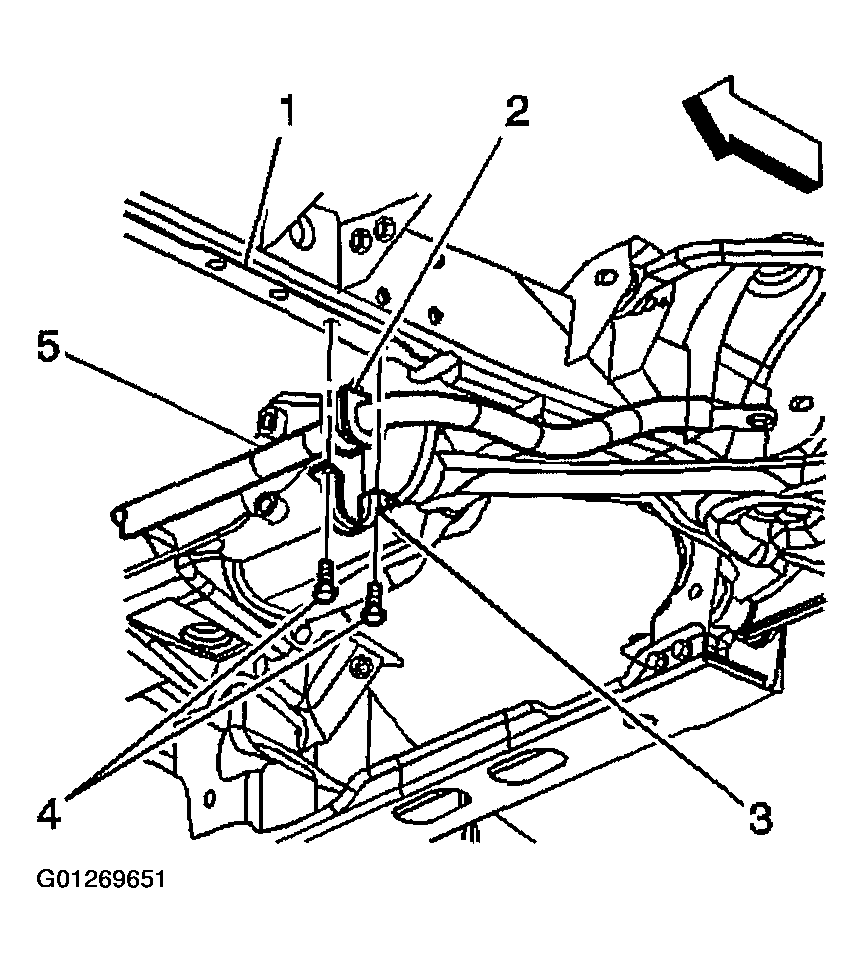

    Fig 1: Removing Stabilizer Shaft Insulator Clamps Mounting Bolts, Insulator Clamps And Shaft Insulator (1500 and 2500 series w/7300 GVW)
    G01269651Courtesy of GENERAL MOTORS CORP.

    Important:  The stabilizer shaft insulator stud may come out of the frame when removing stabilizer shaft insulator mounting nuts.

  5. Remove the stabilizer shaft insulator clamps nuts (3) and/or studs (2500 series w/8500 and 8600 GVW and 3500 series).
  6. Remove the stabilizer shaft clamps (4) (2500 series w/8500 and 8600 GVW and 3500 series).
  7. Lower the stabilizer shaft (2) and remove the stabilizer shaft insulators (5) (2500 series w/8500 and 8600 GVW and 3500 series).
  8. Inspect all of the parts for wear and damage.

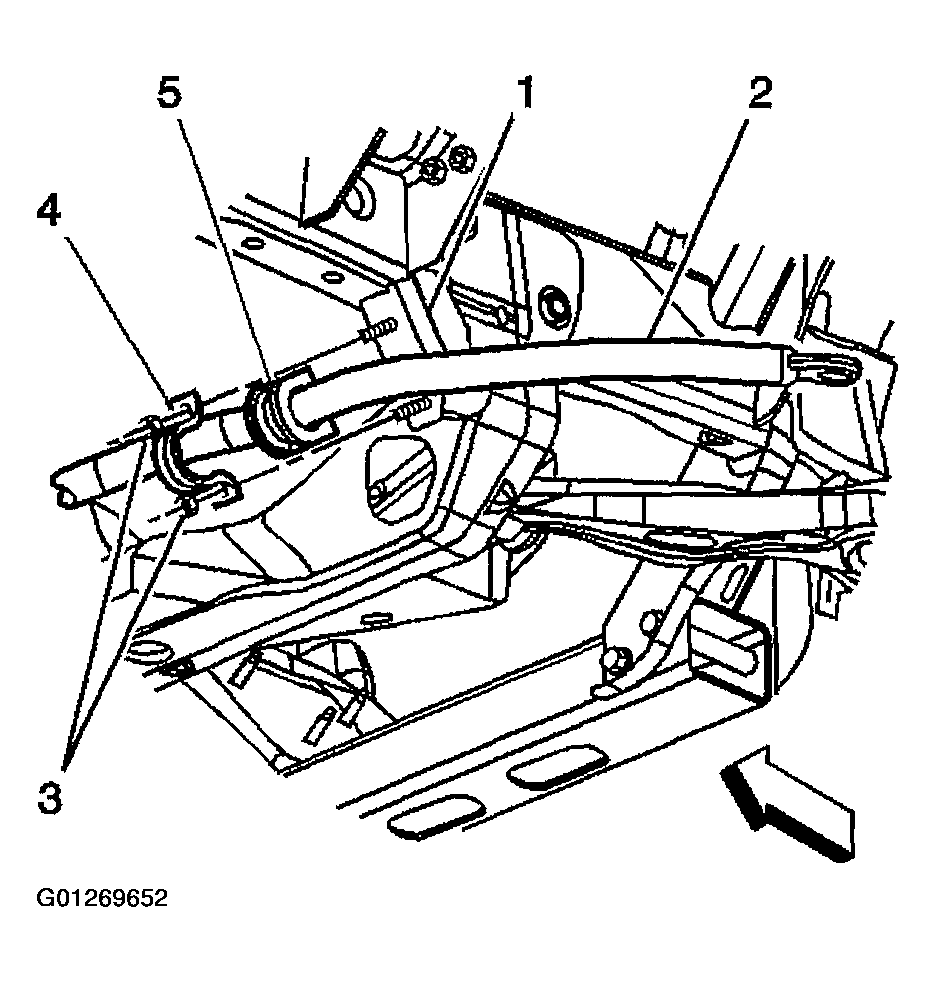

    Fig 2: Removing Stabilizer Shaft Insulator Clamps Nuts, Studs And Shaft Insulators (2500 series w/8500 and 8600 GVW and 3500 series)
    G01269652Courtesy of GENERAL MOTORS CORP.
