Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the stabilizer shaft insulator clamp studs, if removed (2500 series w/8500 and 8600 GVW and 3500 series).

    Tighten

    Tighten the studs to 25 N.m (18 ft lbs).

    Important:  Place the stabilizer shaft insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.

  2. Install the stabilizer shaft insulators (5) to the stabilizer shaft (2) (2500 series w/8500 and 8600 GVW and 3500 series).
  3. Install the stabilizer shaft clamps (4) over the insulators and the stabilizer shaft (2) (2500 series w/8500 and 8600 GVW and 3500 series).
  4. Install stabilizer shaft insulator clamps nuts (3) (2500 series w/8500 and 8600 GVW and 3500 series).

    Tighten

    Tighten the nuts to 46 N.m (34 ft lbs).

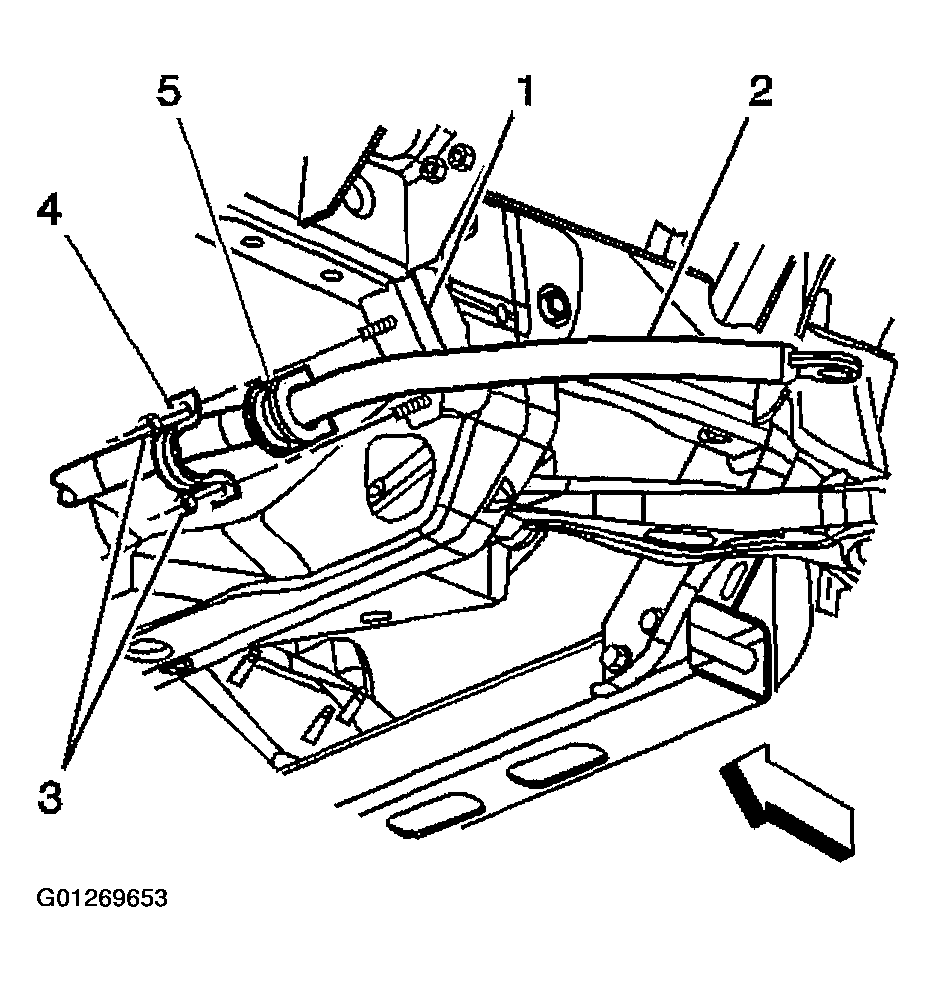

    Fig 1: Installing Stabilizer Shaft Insulator Clamps Nuts, Studs And Shaft Insulators (2500 series w/8500 and 8600 GVW and 3500 series)
    G01269653Courtesy of GENERAL MOTORS CORP.

    Important:  Place the stabilizer shaft insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.

  5. Install the stabilizer shaft insulator (2) to stabilizer shaft (5) (1500 and 2500 series w/7300 GVW).

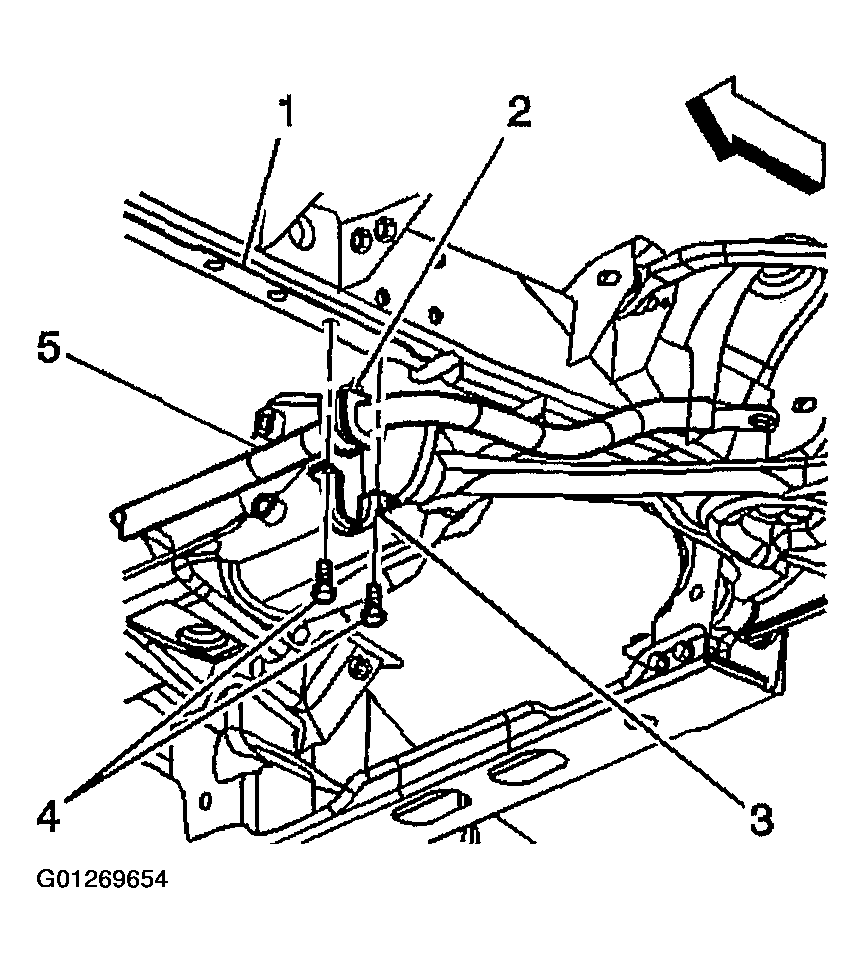

    Fig 2: Installing Stabilizer Shaft Insulator Clamps Mounting Bolts, Insulator Clamps And Shaft Insulator (1500 and 2500 series w/7300 GVW)
    G01269654Courtesy of GENERAL MOTORS CORP.
  6. Install the stabilizer shaft insulator clamps (3) to the stabilizer shaft insulator (2) (1500 and 2500 series w/7300 GVW).
  7. Install the stabilizer shaft insulator clamps mounting bolts (4) (1500 and 2500 series w/7300 GVW).

    Tighten

    Tighten the bolts to 25 N.m (18 ft lbs).

  8. Lower the vehicle.
