Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Support the lower control arm with a jack stand.

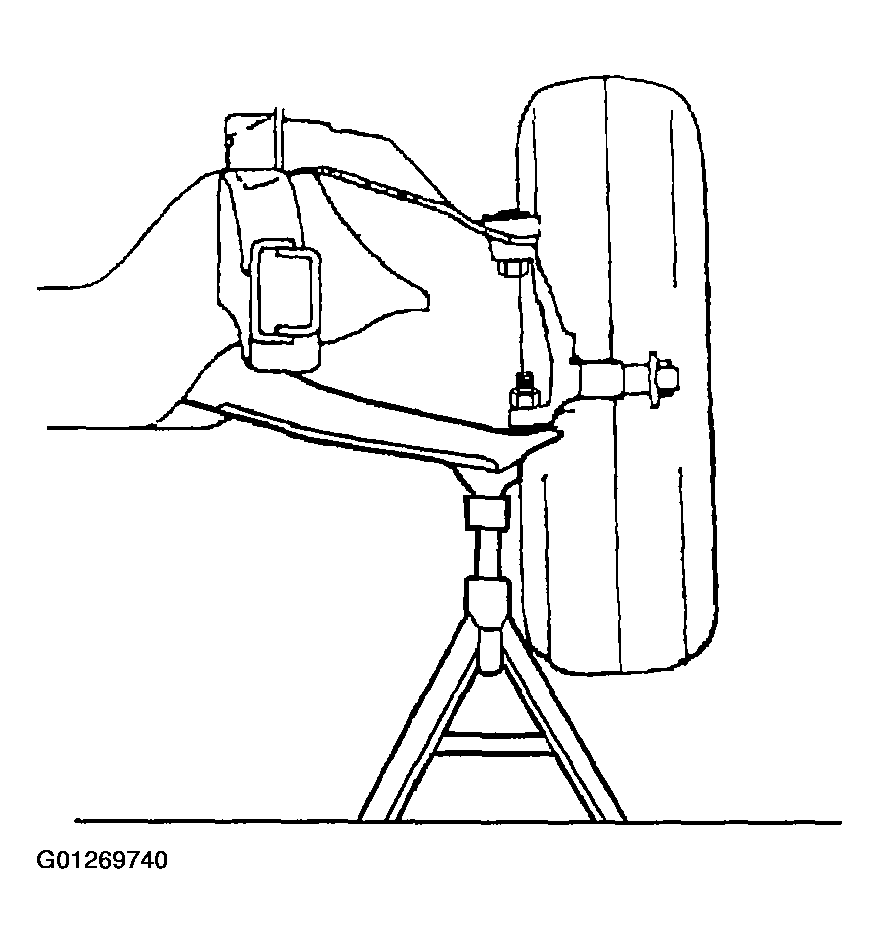

Fig 1: Supporting the lower control arm with a jack stand
Courtesy of GENERAL MOTORS CORP.

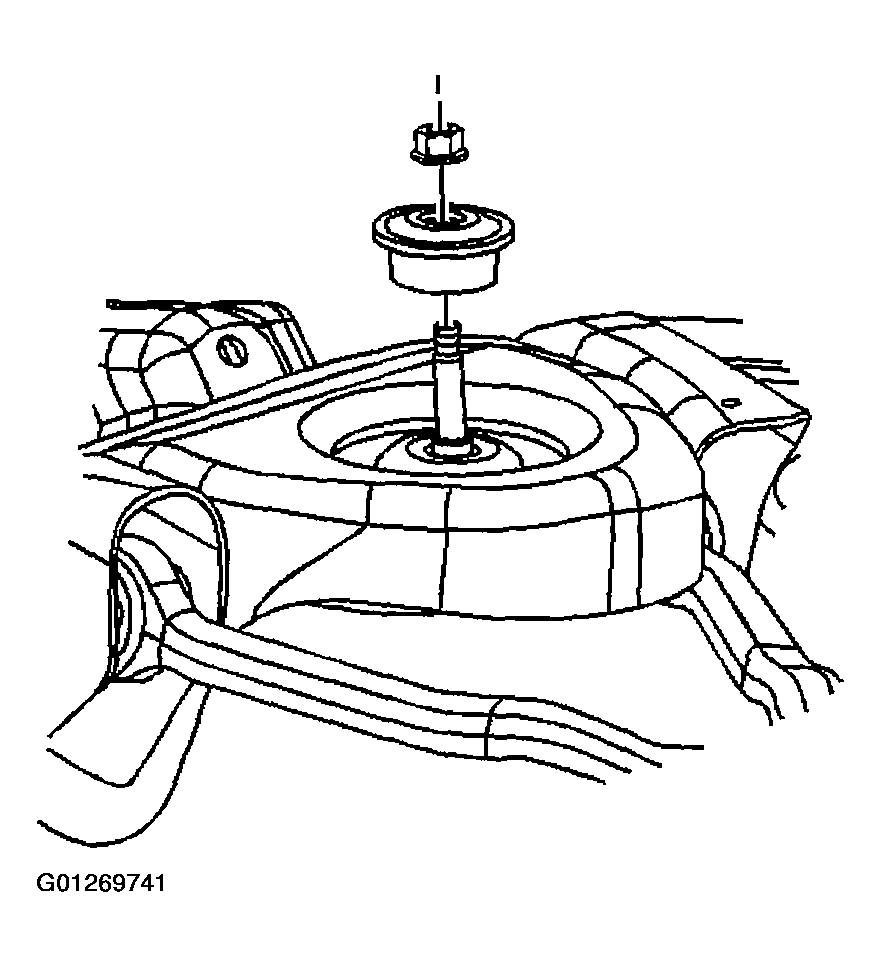

Fig 2: Removing the shock absorber upper retaining nut and bushing
Courtesy of GENERAL MOTORS CORP.
Remove the shock absorber upper retaining nut and bushing.

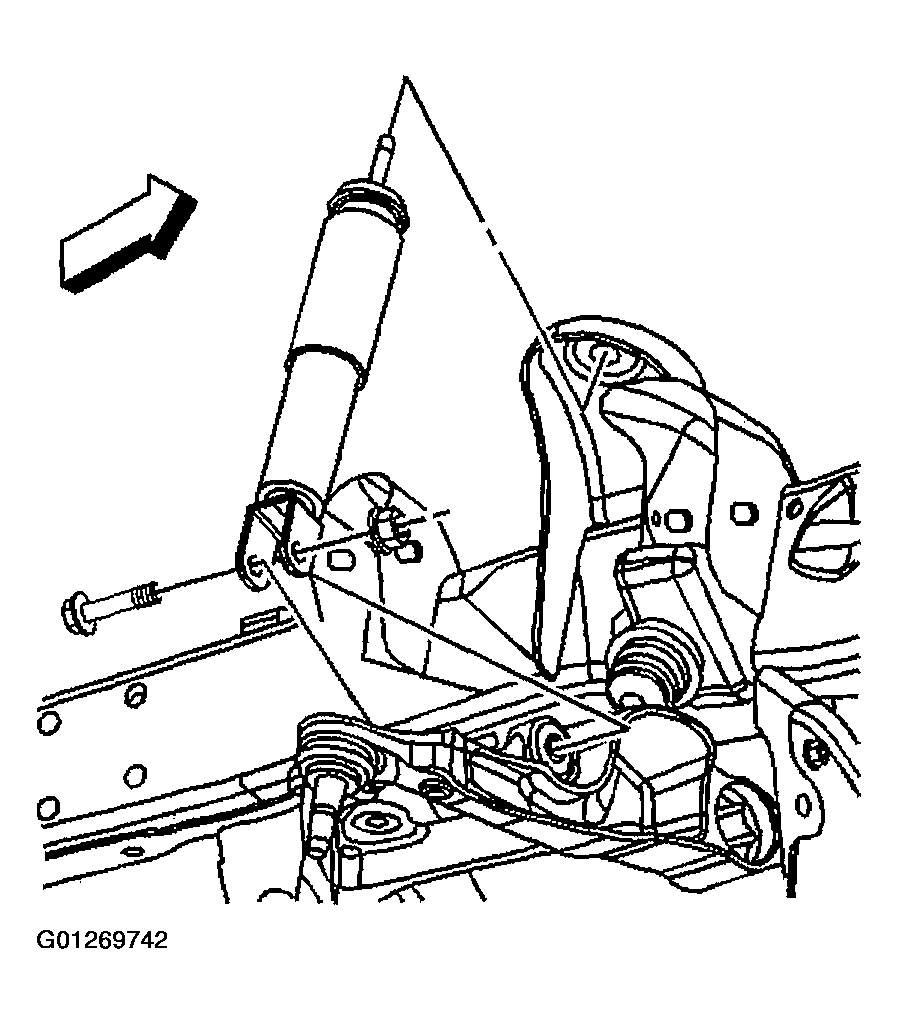

Fig 3: Removing the shock absorber lower mounting bolt
Courtesy of GENERAL MOTORS CORP.
Remove the shock absorber lower mounting bolt.
Remove the shock absorber.

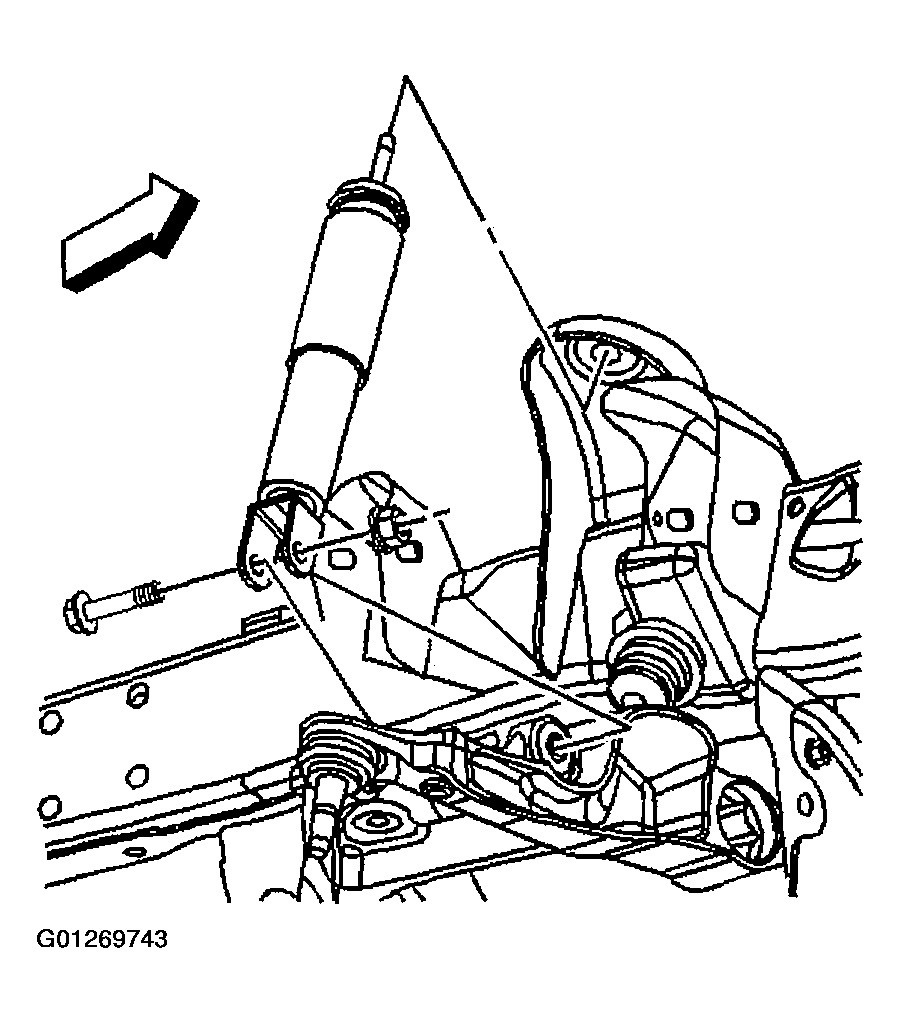

Fig 4: Removing the shock absorber lower mounting bolt
Courtesy of GENERAL MOTORS CORP.
