Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels .
  3. Remove the front coil spring. Refer toFront Coil Springs Replacement .
  4. Remove the lower ball joint retaining nut.

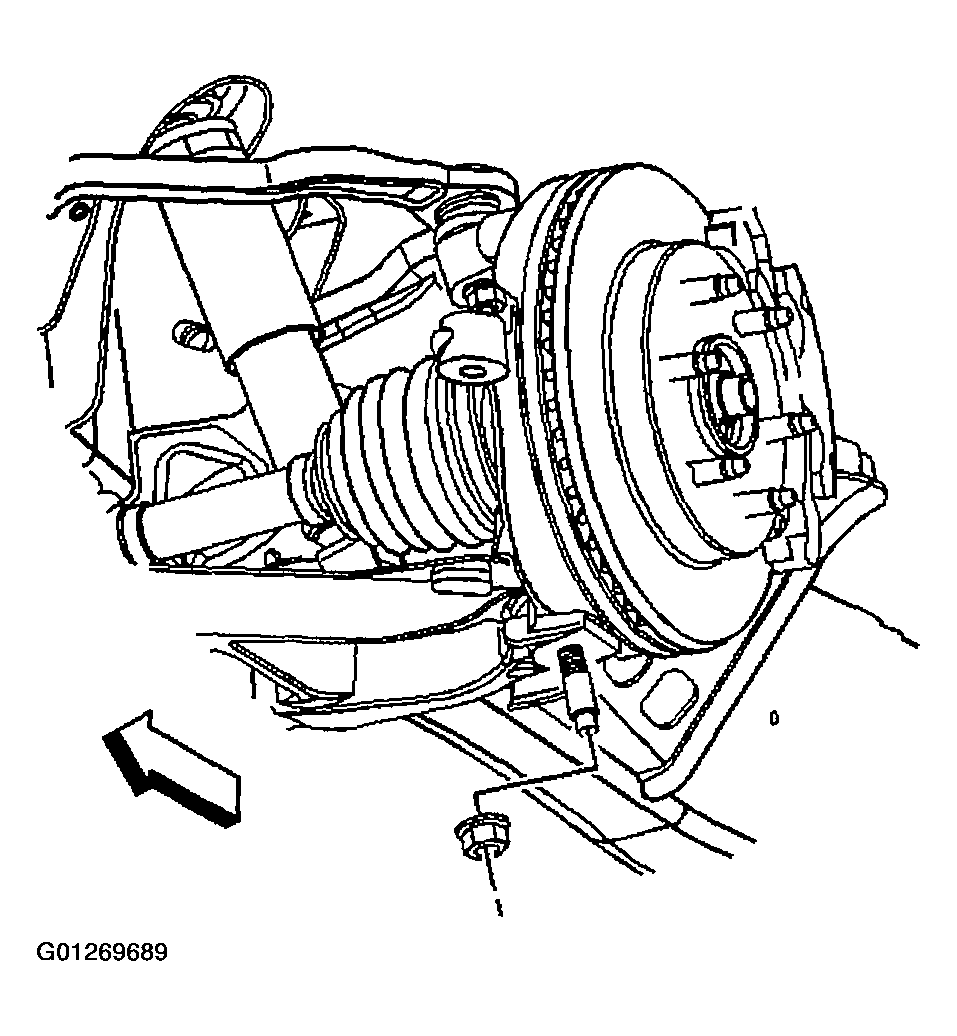

    Fig 1: Removing the lower ball joint retaining nut
    G01269689Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the lower ball joint from the steering knuckle using J 43631  and J 45851  .
  6. Remove the lower control arm.

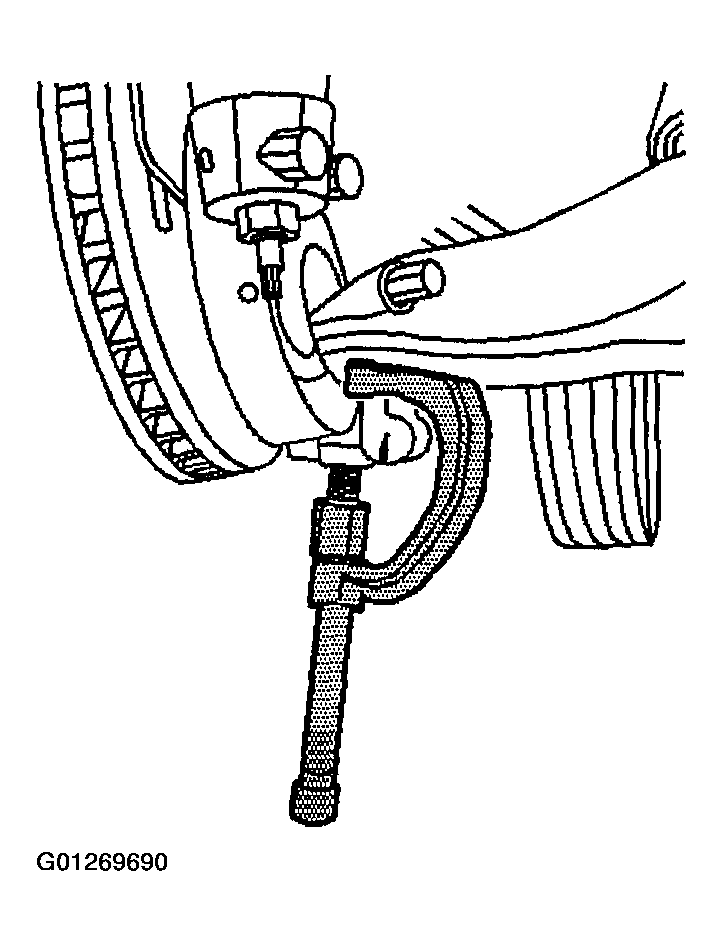

    Fig 2: Remove the lower control arm
    G01269690Courtesy of GENERAL MOTORS CORP.
