Starter Motor Replacement (4.3L): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

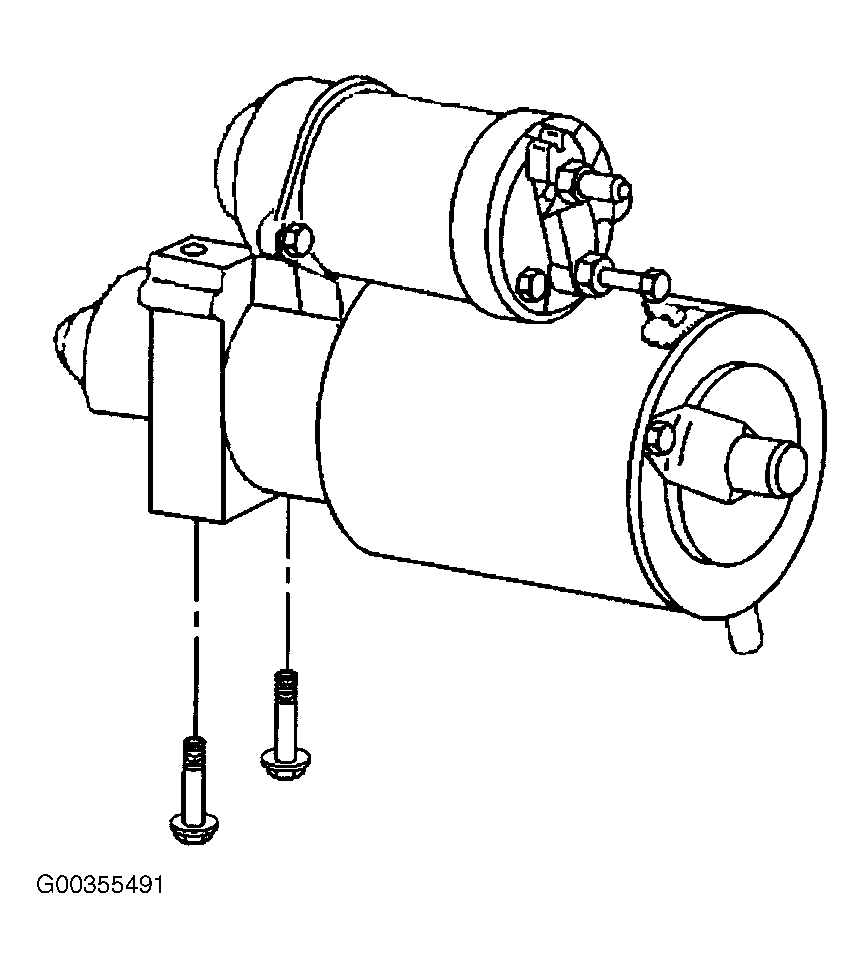

  1. Install the starter motor to the engine. See Figure. Install the bolts and the shims, if present, to the starter motor. Tighten the bolts to specification. See FASTENER TIGHTENING SPECIFICATIONS .

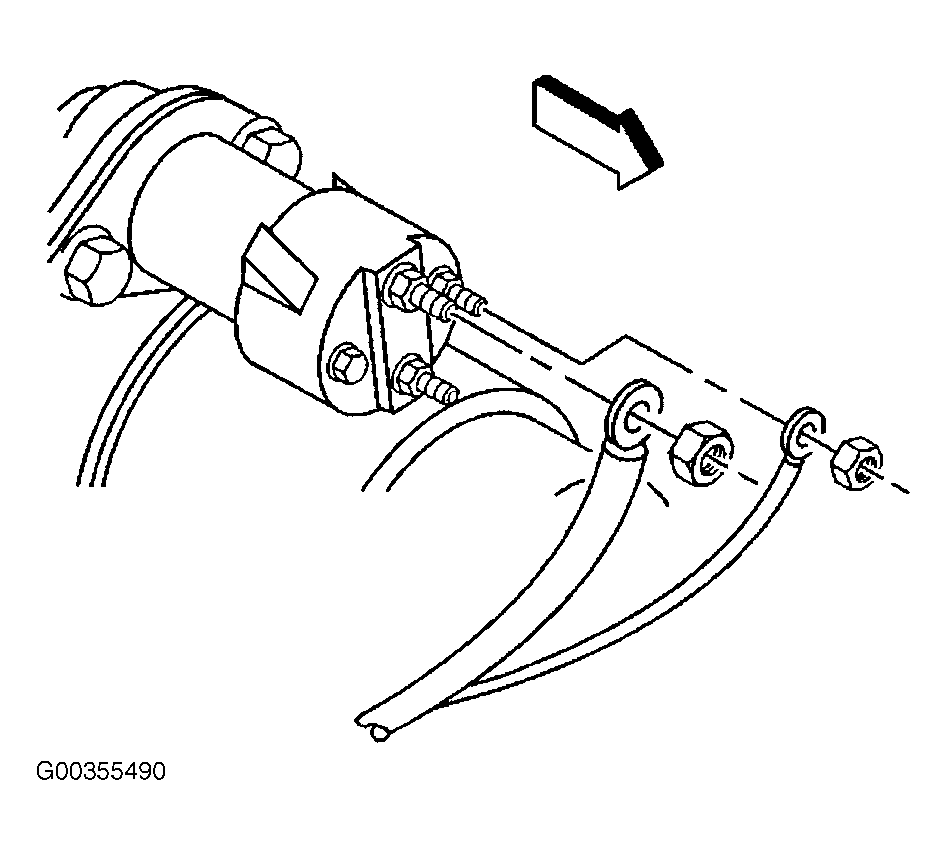

  2. Connect the wires to the starter solenoid. See Figure. Tighten the starter lead nut to the solenoid to specification. Tighten the starter solenoid wires to the solenoid to specification. See FASTENER TIGHTENING SPECIFICATIONS .

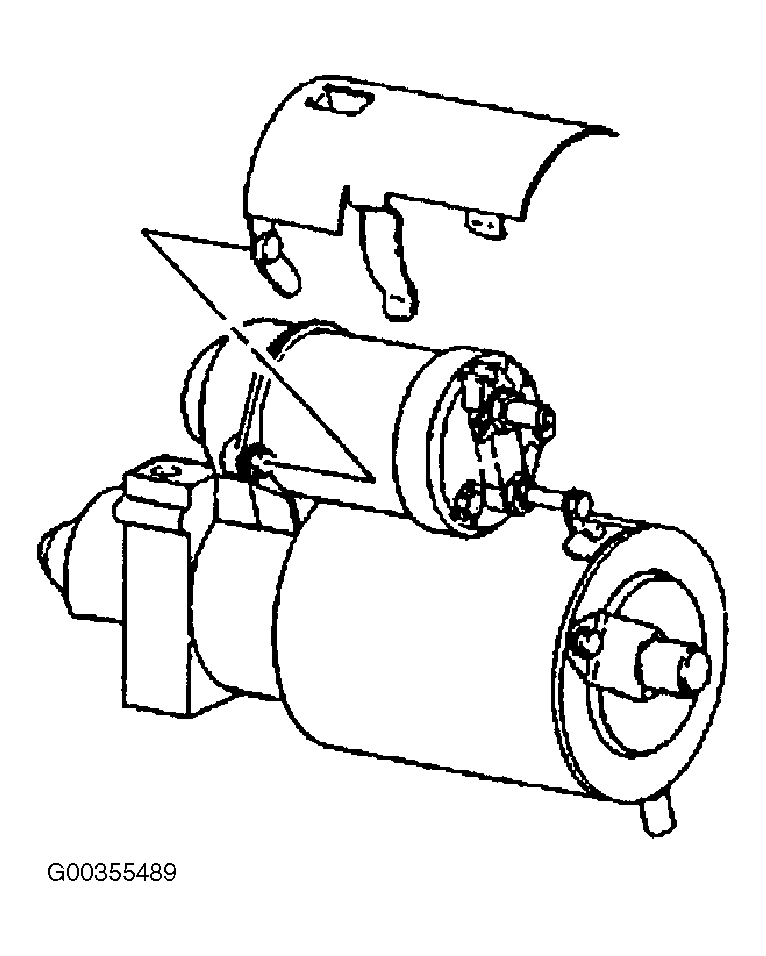

  3. Install the starter motor brackets and shields. See Figure.
  4. Connect the battery negative cable. Tighten to specification. See FASTENER TIGHTENING SPECIFICATIONS .
