Relay Replacement (Within An Electrical Center): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Required Tool: Relay Puller Pliers (J-43244).
  1. Remove the electrical center cover. Locate the relay. See FUSES & CIRCUIT BREAKERS article in ELECTRICAL.
    NOTE: Always note the orientation of the relay. Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.
  2. Using the Relay Puller Pliers, position the tool on opposing corners of the relay. See Fig 1.
    CAUTION: Use the Relay Puller Pliers to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
  3. Remove the relay from the electrical center.

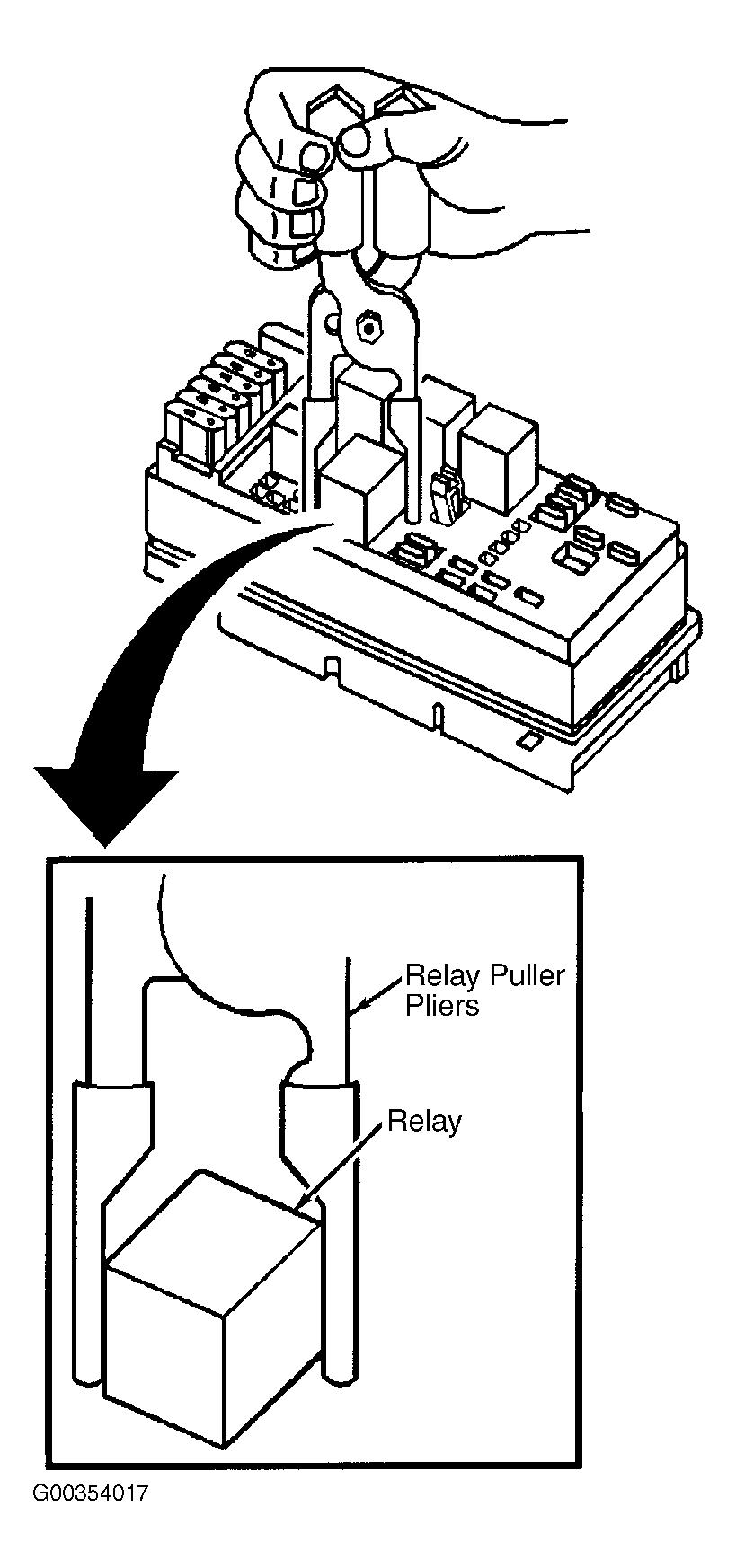

Fig 1: Removing Relay From Electrical Center
G00354017Courtesy of GENERAL MOTORS CORP.
