Instrument Panel Fuse Block (2002 Only)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2004 GMC Savana Special, 2004 GMC Savana Camper Special, 2004 GMC Savana, 2004 Chevrolet RV Cutaway, and 2004 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

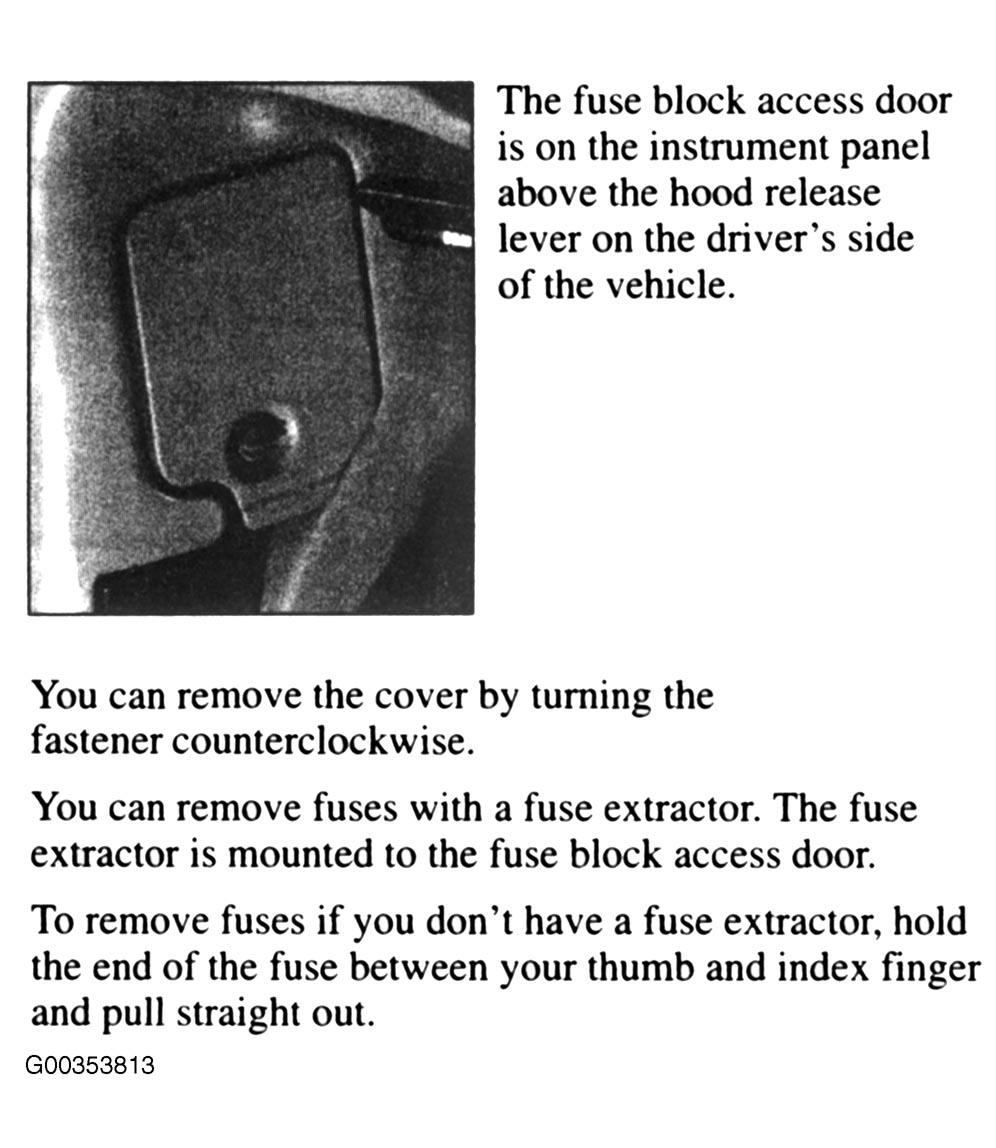

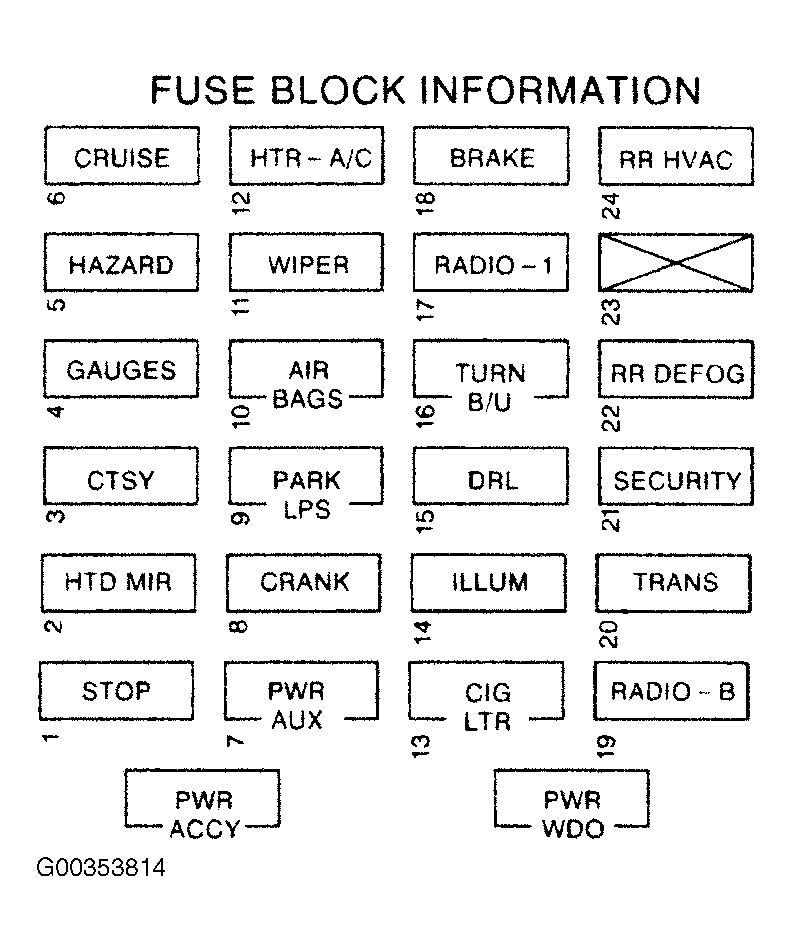

INSTRUMENT PANEL FUSE BOX CIRCUIT IDENTIFICATION
| POSITION | NAME | CIRCUITS PROTECTED |
|---|---|---|
| 1. | STOP | Center High Mounted Stop Lamp, Stoplamps |
| 2. | HTD MIR | Electric Heated Mirrors |
| 3. | CTSY | Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors |
| 4. | GAUGES | Instrument Panel Cluster, Daytime Running Lamp Relay, Daytime Running Lamp Module, Headlamp Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module |
| 5. | HAZARD | Hazard Lamps/CHIME Module |
| 6. | CRUISE | Cruise Control |
| 7. | PWR AUX | Auxiliary Power Outlet, DLC |
| 8. | CRANK | Not Used |
| 9. | PARK LPS | License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray |
| 10. | AIR BAGS | Air Bags |
| 11. | WIPER | Wiper Motor, Washer Pump |
| 12. | HTR-A/C | A/C, A/C Blower, High Blower Relay, Heated Mirror |
| 13. | CIG LTR | Cigarette Lighter |
| 14. | ILLUM | Instrument Panel Cluster, HVAC Controls, RR HVAC Controls, Instrument Panel Switches, Radio Illumination, Door Switch Illumination |
| 15. | DRL | Daytime Running Lamp Relay |
| 16. | TURN B/U | Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid |
| 17. | RADIO-***1 | Radio (Ign, Accy), Upfitter Provision Relay |
| 18. | BRAKE | 4WAL PCM, ABS, Cruise Control |
| 19. | RADIO-B | Radio (Battery), Power Antenna |
| 20. | TRANS | PRNDL, Automatic Transmission |
| 21. | SECURITY | Passlock |
| 22. | RR DEFOG | Rear Window Defog |
| 23. | NOT USED | Not Used |
| 24. | RR HVAC | RR HVAC Controls, HIGH, MED, LOW Relays |
| A. | PWR ACCY | Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module |
| B. | PWR WDO | Power Windows |
