Rear Disc Brake Backing Plate: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the park brake cable automatic adjuster. See PARK BRAKE CABLE AUTOMATIC ADJUSTER  under ADJUSTMENTS & INSPECTIONS.
  2. Raise and support the vehicle. Remove the tire and wheel assembly. Perform the following procedure to remove the cable from the backing plate:
    1. Compress the spring by pushing towards the lever. See Fig 1 .
    2. Depress the locking tabs.
    3. Pull the cable housing out of the backing plate. See Fig 1 .
    4. Remove the cable through the slot in the backing plate.
  3. Remove the park brake cable from the lever. See Fig 1 .
  4. For the 15 and 25 series, perform the following steps:
    1. Remove the rotor. See BRAKE ROTORS  .
    2. Remove the axle shaft. See appropriate AXLE SHAFTS article in DRIVELINE/AXLES.
  5. For the 35 series with single rear wheels, perform the following steps:
    1. Remove the rotor. See BRAKE ROTORS  .
    2. Remove the hub assembly. See appropriate WHEEL/HUB REPLACEMENT in REAR SUSPENSION article.
  6. For the 35 series with dual rear wheels, remove the hub and rotor assembly. See appropriate WHEEL/HUB REPLACEMENT in REAR SUSPENSION article.
  7. Remove the park brake shoe. See PARK BRAKE SHOE  . Remove the backing plate nuts. Remove the backing plate from the axle housing flange.

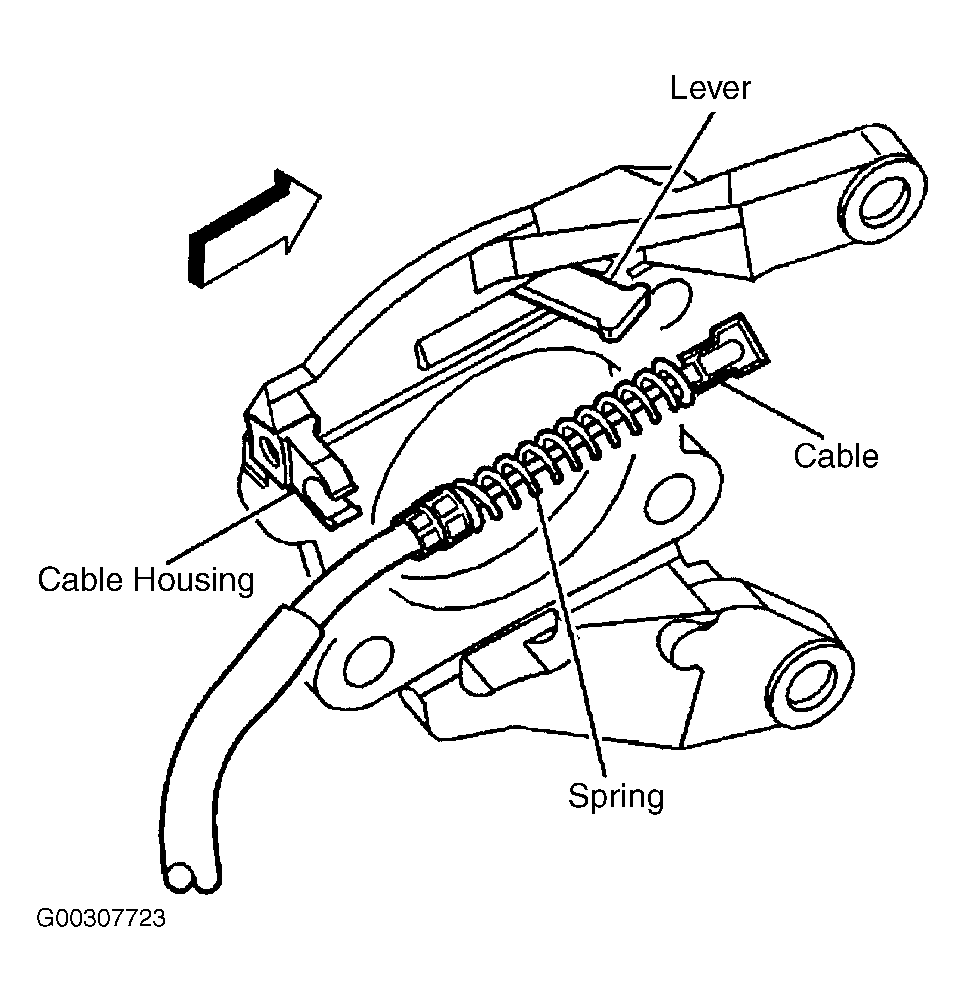

Fig 1: Identifying Disc Brake Backing Plate Cable Components
G00307723Courtesy of GENERAL MOTORS CORP.
