Park Brake Shoe: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

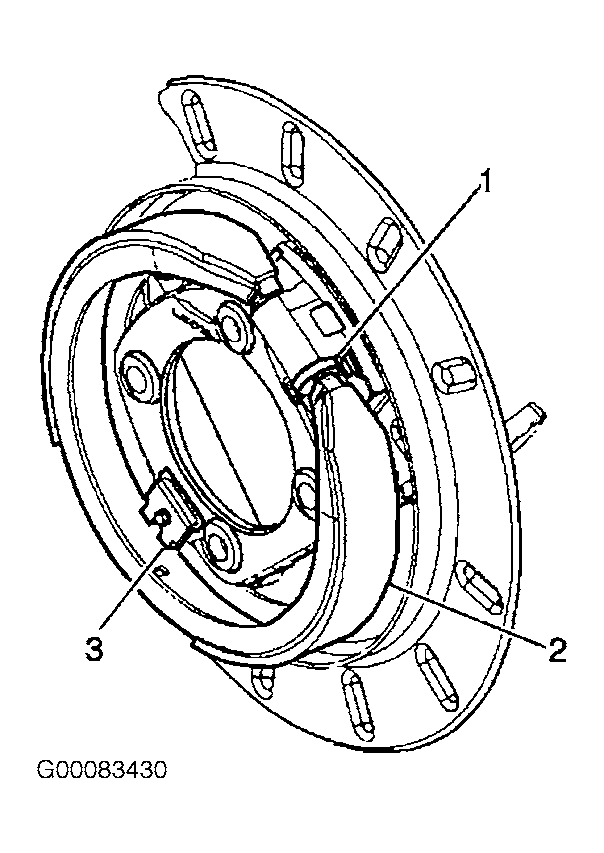

- Clean the debris and the dust from the park brake components using a clean shop cloth. Align the slots in both the adjusting screw (1) and tappet to be parallel with the backing plate face. See Figure .
- Install the park brake shoe assembly to the vehicle by placing one of the open ends of the shoe over the axle flange and rotating the shoe until it is behind the flange. Position the park brake shoe on the inboard side of the actuator.
- Slide the park brake shoe into position and seat into the retaining spring. Inspect the shoe assembly position. The shoe must be central on the backing plate with both tips located in the slots. Adjust the park brake shoe. See PARK BRAKE ADJUSTMENT in PARK BRAKE SYSTEM under ADJUSTMENTS & INSPECTIONS.
- Place the lower end of the shoe (2) against the backing plate. See Figure .
- Install the brake rotor. See BRAKE ROTORS . Install the park brake cable to the park brake actuator lever. Enable the park brake automatic cable adjuster. See PARK BRAKE CABLE AUTOMATIC ADJUSTER under ADJUSTMENTS & INSPECTIONS.
- Install the tire and wheel assembly. Tighten to specification. See TORQUE SPECIFICATIONS . Lower the vehicle. Adjust park brake cable. See PARK BRAKE ADJUSTMENT in PARK BRAKE SYSTEM under ADJUSTMENTS & INSPECTIONS.
